985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Wheel Control Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

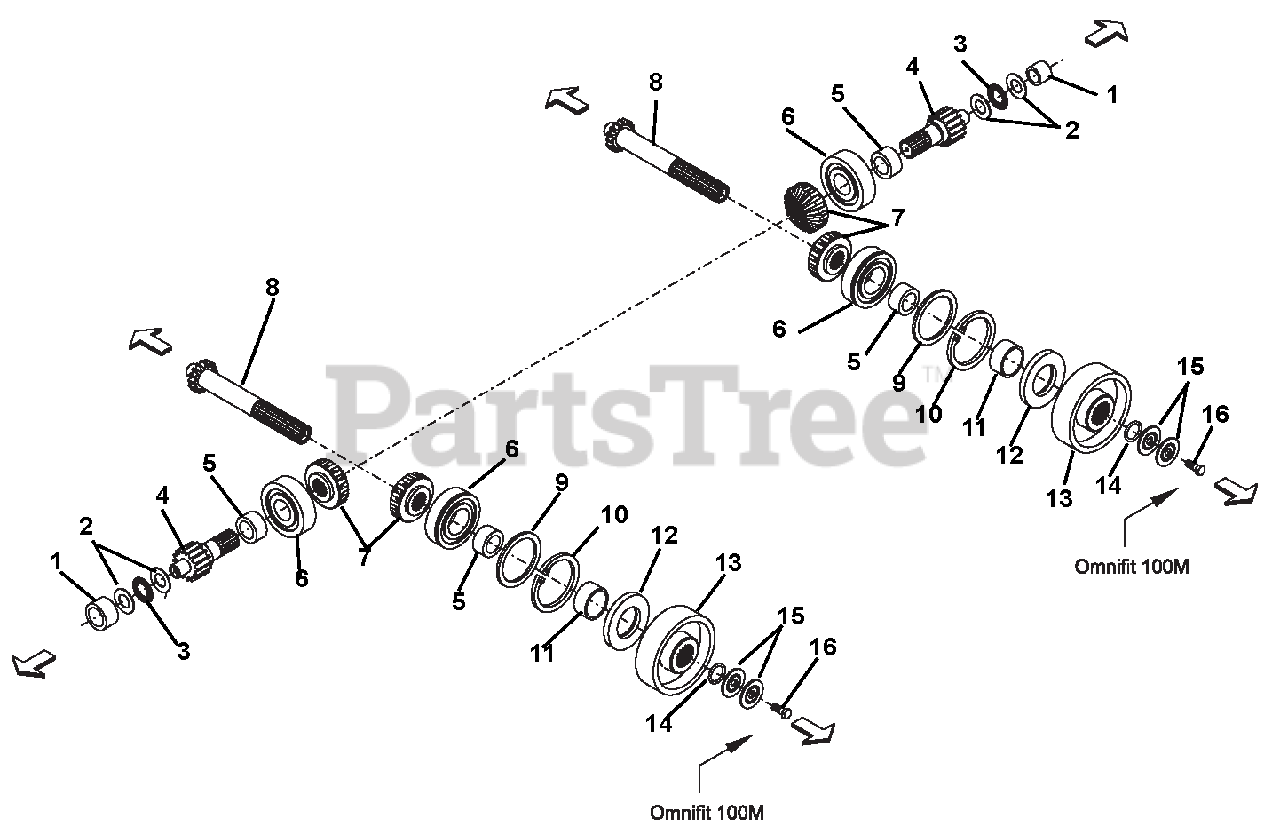

Wheel Control Parts Diagram

  • Title

1

Gravely 00830700

NEEDLE BEARING, HK 1516

$

$

Not available

2

Gravely 00830800

WASHER ASSIALE, AS 1528

$

$

Not available

3

Gravely 00830900

BALL BEARING, AXK 1528

$

$

Not available

4

Gravely 00831000

PINION SHAFT, Z=16

$

$

Not available

5

Gravely 00831100

BUSH

$

$

Not available

6

Gravely 00831200

BALL BEARING, 6206

$

$

Not available

7

Gravely 00831300

PINION CONICAL, Z=14

$

$

Not available

8

Gravely 00831400

DRIVE SHIFT

$

$

Not available

9

Gravely 00831500

SUPPORTING RING, D988 50X 62X3

$

$

Not available

10

Gravely 00831600

CIRCLIP, D472 62X 2,00

$

$

Not available

11

Gravely 00831700

INNER RING, LR 30X35X16,5

$

$

Not available

12

Gravely 00831800

OIL SEAL, 35X 62X 7 BASL

$

$

Not available

13

Gravely 00831900

BRAKE DISK

$

$

Not available

14

Gravely 00832000

O-RING, 17X4

$

$

Not available

15

Gravely 08619200

WASHER, FRICTION

$

$

Not available

16

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available
