985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Battery Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

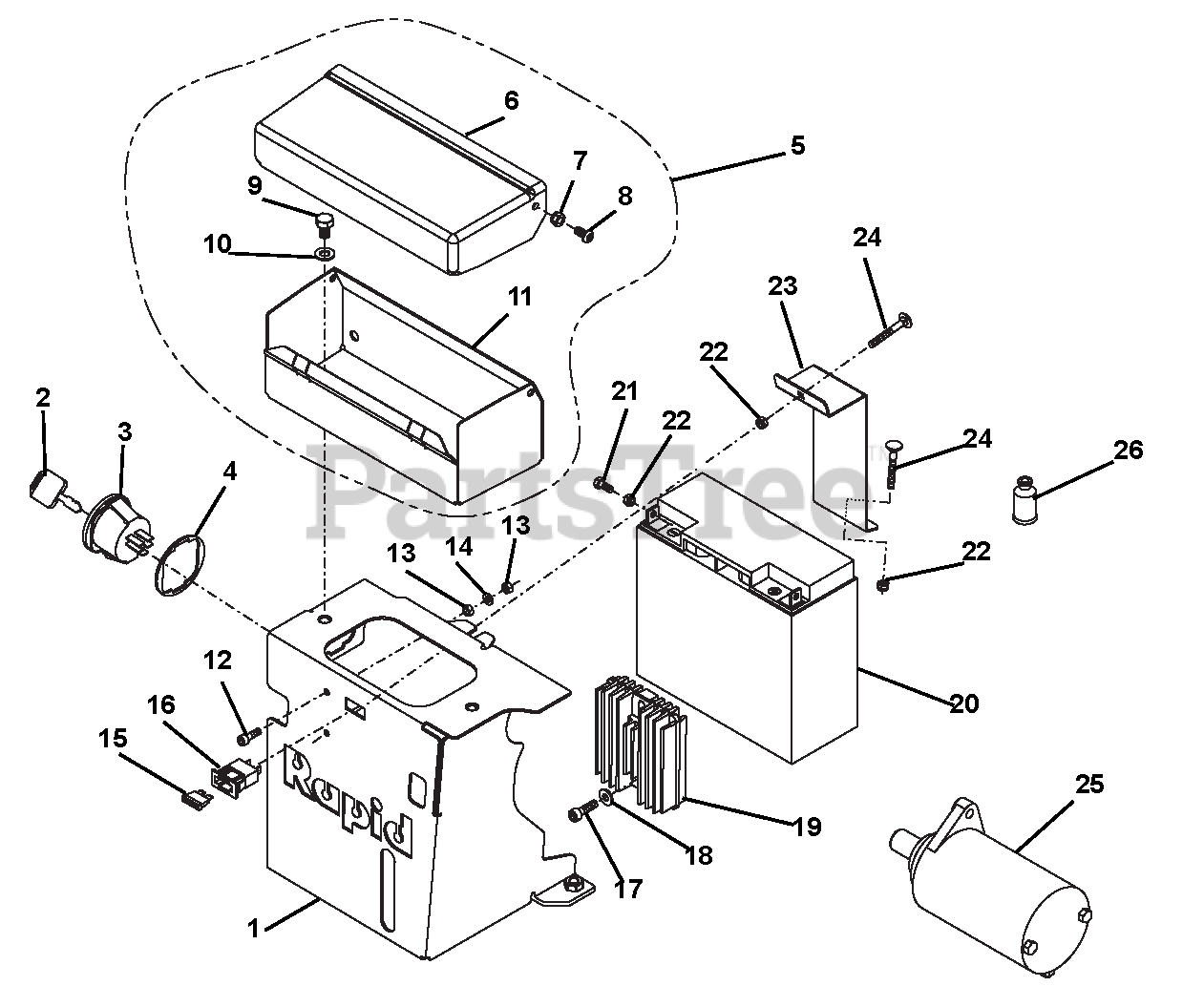

Battery Parts Diagram

  • Title

1

Gravely 08637600

BATTERY CONTAINER

$

$

Not available

2

Gravely 08697300

ASSY, KEY

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 08697200

ASSY, STARTER SWITCH

$66.99

$

Usually ships in 4-12 days

0

4

Gravely 08637700

SPACER
(Superseded to 00862200)

$

$

Not available

5

Gravely 08637800

TOOL BOX ASSY., POS. 6-11

Note: (Includes 6 - 11)

$

$

Not available

6

Gravely 08668700

COVER

$

$

Not available

7

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

8

Gravely 08672200

SCREW, ISO7380 M 6X 12

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 08621900

BOLT, HEX, D933 M 8X 12

$

$

Not available

10

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

11

Gravely 08668900

BOX, TOOL

$

$

Not available

12

Gravely 08629100

SCREW, D912 M 5X 15

$

$

Not available

13

Gravely 08625800

NUT, HEX, D934 M 5

$

$

Not available

14

Gravely 08634300

WASHER, M5

$

$

Not available

15

Gravely 08637500

15A, FUSE

$

$

Not available

16

Gravely 08637900

FUSE BOX
(Superseded to 00690100)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 08609900

WASHER, 6.1X14.2X1.4 M6

$

$

Not available

19

Gravely 08697100

REGULATOR, AC

$648.99

$

Usually ships in 4-12 days

0

20

Gravely 08690700

BATTERY, RAPID

$699.99

$

Usually ships in 4-12 days

0

21

Gravely 08638000

HEXAGON BOLT, D933 M5X12
(Superseded to 00862500)

$

$

Not available

22

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 08638100

BOW, FASTENER
(Superseded to 00862600)

$

$

Not available

24

Gravely 08638200

TRUSS HEAD SCREW, D603 M5X40
(Superseded to 00862700)

$

$

Not available

25

Gravely 08638300

ELECTRICAL STARTER, ROBIN 279

$

$

Not available

26

Gravely 08638400

PROTECTING CAP
(Superseded to 00690000)

$28.99

$

Usually ships in 4-12 days

0
