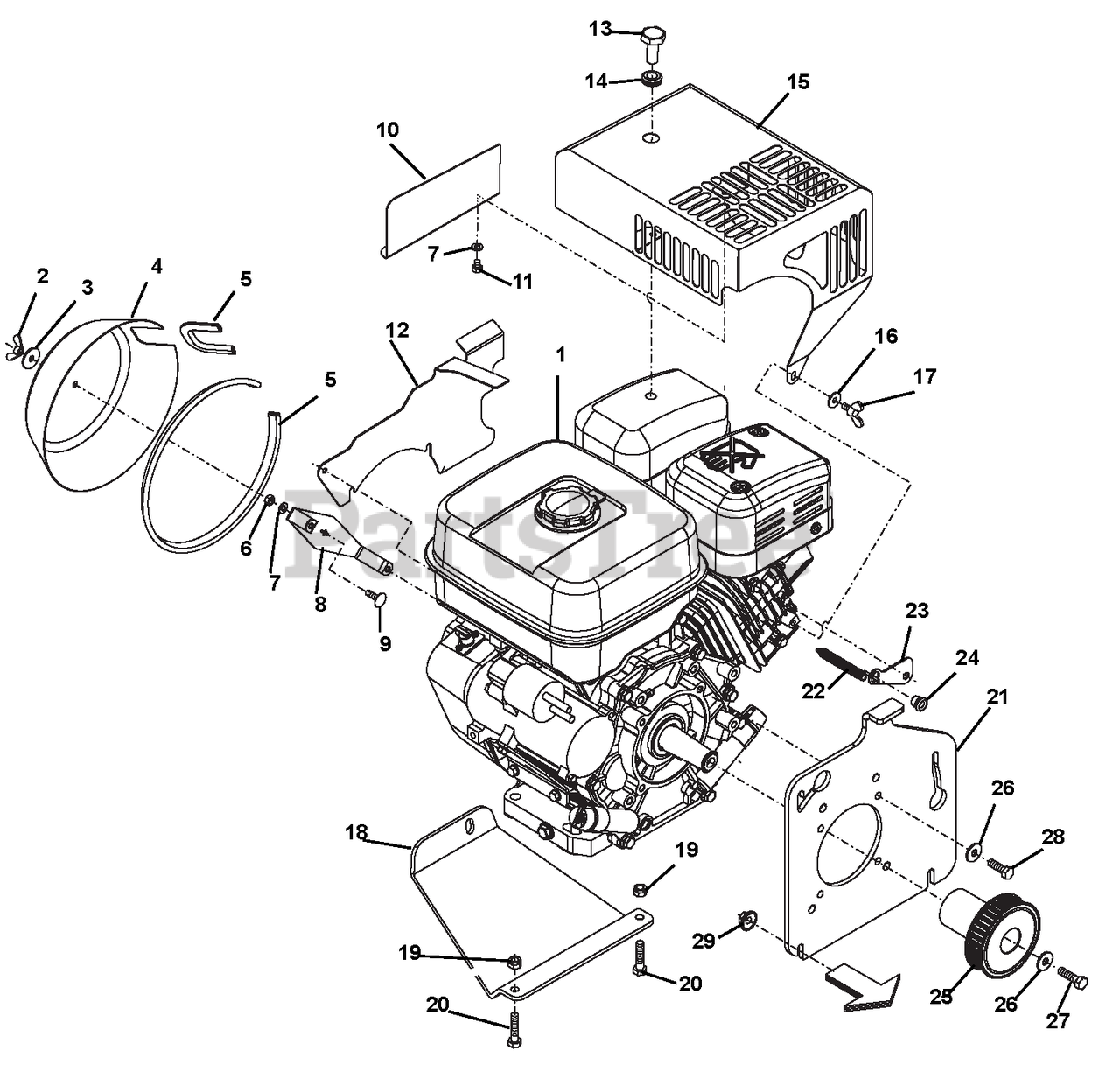

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 08624400

ENGINE 9 HP EST, ROBIN, EST

$

$

Not available

2

Gravely 08620200

NUT, WING, M6

$

$

Not available

3

Gravely 08620300

WASHER, 7X25X1.8

$

$

Not available

4

Gravely 08624500

BONNET
(Superseded to 08668100)

$

$

Not available

5

Gravely 08624600

EDGE PROTECTION, N802 6,5X8
(Superseded to 08668200)

$

$

Not available

6

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

7

Gravely 08620600

WASHER, M6

$

$

Not available

8

Gravely 08624700

SUPPORT

$

$

Not available

9

Gravely 08620900

SCREW,

$

$

Not available

10

Gravely 08624800

SHEET, DIVIDER

$

$

Not available

11

Gravely 08624900

SCREW,D912 M6X35

$

$

Not available

12

Gravely 08625100

WINTER PLATING, ROBIN

$

$

Not available

13

Gravely 08625200

WING NUT

$

$

Not available

14

Gravely 08634900

GROMMET

$

$

Not available

15

Gravely 08625300

SCREW, 912 M5X12

$

$

Not available

16

Gravely 08631900

WASHER, M6

$

$

Not available

17

Gravely 08625600

WING SCREW, D316 M6X12

$

$

Not available

18

Gravely 08625700

GUARD, SHEET METAL

$

$

Not available

19

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

20

Gravely 08626000

HEXAGON BOLT, D933 M8X35

$

$

Not available

21

Gravely 08626100

RETAINING PLATE

$

$

Not available

22

Gravely 08626200

TENSION SPRING

$

$

Not available

23

Gravely 08626300

SUPPORT

$

$

Not available

24

Gravely 08626400

BUSH
(Superseded to 08677900)

$

$

Not available

25

Gravely 08626500

PULLEY
(Superseded to 08694500)

$

$

Not available

26

Gravely 08616300

WASHER, M 8

$

$

Not available

27

Gravely 08636400

BOLT, HEX, D933 M 8X 30

$

$

Not available

28

Gravely 08626700

HEXAGON BOLT, UNF 5/16"X1"

$

$

Not available

29

Gravely 08627100

LOCK NUT, M 8

$

$

Not available
