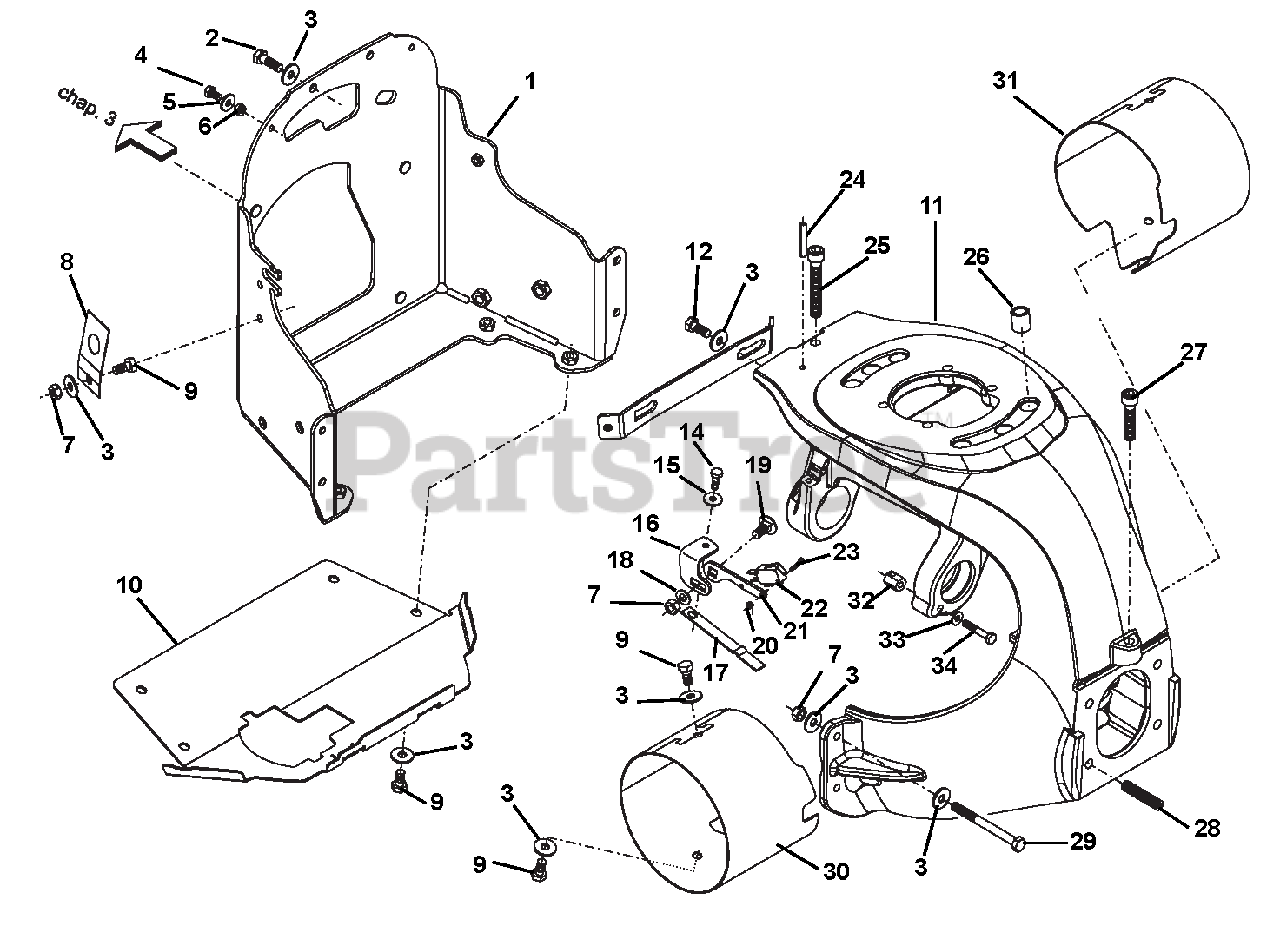

985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Frame Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Frame Parts Diagram

  • Title

1

Gravely 00695500

BRKT, ENGINE

$

$

Not available

2

Gravely 08635100

BOLT, HEX, D933 M 8X 25

$

$

Not available

3

Gravely 08616300

WASHER, M 8

$

$

Not available

4

Gravely 08614700

BOLT, HEX D933 M 6X 12

$

$

Not available

5

Gravely 08677200

WASHER, D9021 6.3X18

$

$

Not available

6

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

7

Gravely 08621300

NUT, HEX D934 M 8
(Superseded to 08605700)

$

$

Not available

8

Gravely 08621800

SPRING, FLAT

$

$

Not available

9

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available

10

Gravely 08627200

SHEET

$

$

Not available

11

Gravely 08627300

FRAME

$

$

Not available

12

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

13

Gravely 08627500

BRACKET

$

$

Not available

14

Gravely 08606000

HEXAGON BOLT, D933 M6X18

$

$

Not available

15

Gravely 08631900

WASHER, M6

$

$

Not available

16

Gravely 08627600

BRACKET

$

$

Not available

17

Gravely 08627900

LEVER, SPRING

$

$

Not available

18

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

19

Gravely 08607800

WASHER

$

$

Not available

20

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

21

Gravely 08672500

PLATE, LOCK

$

$

Not available

22

Gravely 08628000

SWITCH
(Superseded to 00690400)

$

$

Not available

23

Gravely 08607200

FLAT-HEADED SCREW, D85A M3X18
(Superseded to 08672800)

$

$

Not available

24

Gravely 08628100

PIN HEAVY, IS08752 6 X40
(Superseded to 00840300)

$

$

Not available

25

Gravely 08628200

SCREW

$

$

Not available

26

Gravely 08628300

COLLAR SLEEVE

$

$

Not available

27

Gravely 08628400

SCREW, D912 M10X 45

$

$

Not available

28

Gravely 08628500

SET-SCREW, D913 M10X50

$

$

Not available

29

Gravely 08608400

HEXAGON BOLT, D931 M8X 90

$

$

Not available

30

Gravely 08628800

GUARD, GRASS RH

$

$

Not available

31

Gravely 08628900

GUARD, GRASS LH

$

$

Not available

32

Gravely 08622600

SUPPORT, CABLE

$

$

Not available

33

Gravely 08609900

WASHER, 6.1X14.2X1.4 M6

$

$

Not available

34

Gravely 08622900

HEXAGON BOLT DIN933 M6X35

$

$

Not available
