985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (2) Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

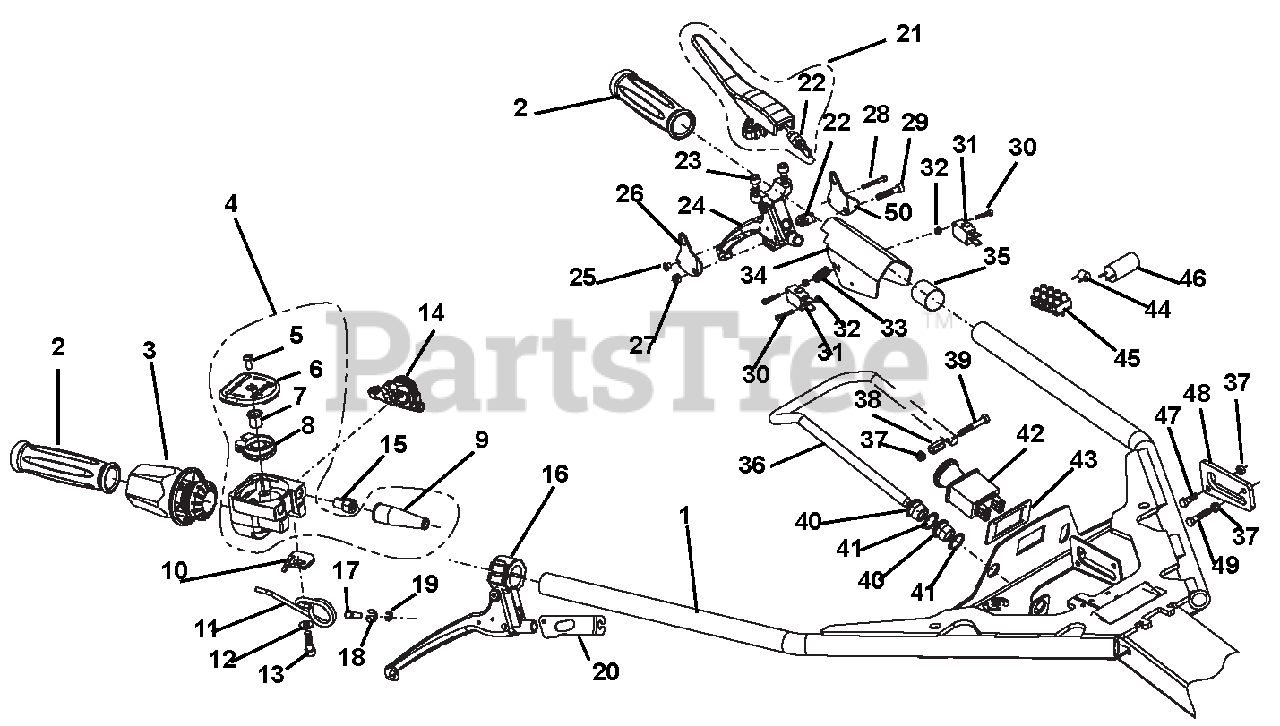

Handlebar (2) Parts Diagram

  • Title

1

Gravely 08629300

SWIVELLING HANDLEBAR

$

$

Not available

2

Gravely 08627000

RUBBER, HANDLE

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 08694900

BUSH, GRIP

$201.99

$

Usually ships in 4-12 days

0

4

Gravely 08680200

MF CONTROL UNIT CPL, POS. 4-8

Note: (Includes items 5 - 8)

$248.99

$

Usually ships in 4-12 days

0

5

Gravely 08626600

SCREW, ISO7380 M5X12/ 10.9

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 08627400

COVER

$69.99

$

Usually ships in 4-12 days

0

7

Gravely 08626900

BUSH
(Superseded to 00854200)

$44.99

$

Usually ships in 4-12 days

0

8

Gravely 08626800

BEVEL WHEEL W. CAM

$48.99

$

Usually ships in 4-12 days

0

9

Gravely 08627800

CAP

$44.99

$

Usually ships in 4-12 days

0

10

Gravely 08629400

COVER, STOP
(Superseded to 00854400)

$

$

Not available

11

Gravely 08694800

SPRING, RETURN

$

$

Not available

12

Gravely 08609900

WASHER, 6.1X14.2X1.4 M6

$

$

Not available

13

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 08694700

ASSY, THROTTLE LEVER

$

$

Not available

15

Gravely 08627700

NIPPLE, SCREWED

$38.99

$

Usually ships in 4-12 days

0

16

Gravely 08682200

CPL, LEVER

$91.99

$

Usually ships in 4-12 days

0

17

Gravely 08629500

BOLT
(Superseded to 08681900)

$

$

Not available

18

Gravely 08629600

LOCKWASHER, D6799 6 MM

$

$

Not available

19

Gravely 08694600

WASHER, LOCK

$

$

Not available

20

Gravely 08629700

LOCK

$

$

Not available

21

Gravely 08697400

LEVER, EMERGENCY

$345.99

$

Usually ships in 4-12 days

0

22

Gravely 08693900

SWITCH

$

$

Not available

23

Gravely 08629800

SCREW, D912 M6X 22

$

$

Not available

24

Gravely 08697500

LEVER, CONTROL

$

$

Not available

25

Gravely 08630000

BUSH

$

$

Not available

26

Gravely 08630100

TRACER PLATE

$

$

Not available

27

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 08669600

SCREW, D912 M3X25

$

$

Not available

29

Gravely 08630300

SCREW, D912 M5X 25

$

$

Not available

30

Gravely 08630500

SCREW, D912 M3X16

$

$

Not available

31

Gravely 08697600

SWITCH, MICRO

$

$

Not available

32

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

33

Gravely 08630700

TENSION SPRING

$

$

Not available

34

Gravely 08630900

SUPPORT

$

$

Not available

35

Gravely 08631000

SHRINKDOWN TUBING, RNF100 1TYP

$

$

Not available

36

Gravely 08631300

WASHER

$

$

Not available

37

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 08631500

HEXAGON NUT, DIN 6334, M5X15

$

$

Not available

39

Gravely 08631600

SCREW, M8X50 D912 17932

$

$

Not available

40

Gravely 08631700

BUSH

$

$

Not available

41

Gravely 08631800

CIRCLIP, D471 16 1,00

$

$

Not available

42

Gravely 08695000

SWITCH, PTO

$

$

Not available

43

Gravely 08632000

FRONT SCREEN

$

$

Not available

44

Gravely 08695100

DIODE

$

$

Not available

45

Gravely 08632100

LUBRICATOR

$

$

Not available

46

Gravely 08695200

CONDENSER

$

$

Not available

47

Gravely 08632500

HEXAGON BOLT, D933 M5X16

$

$

Not available

48

Gravely 08632700

HEXAGON BOLT

$

$

Not available

49

Gravely 08606100

HEXAGON BOLT, D933 M5X25

$

$

Not available

50

Gravely 08632800

TRACER PLATE

$

$

Not available
