985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Swivel Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

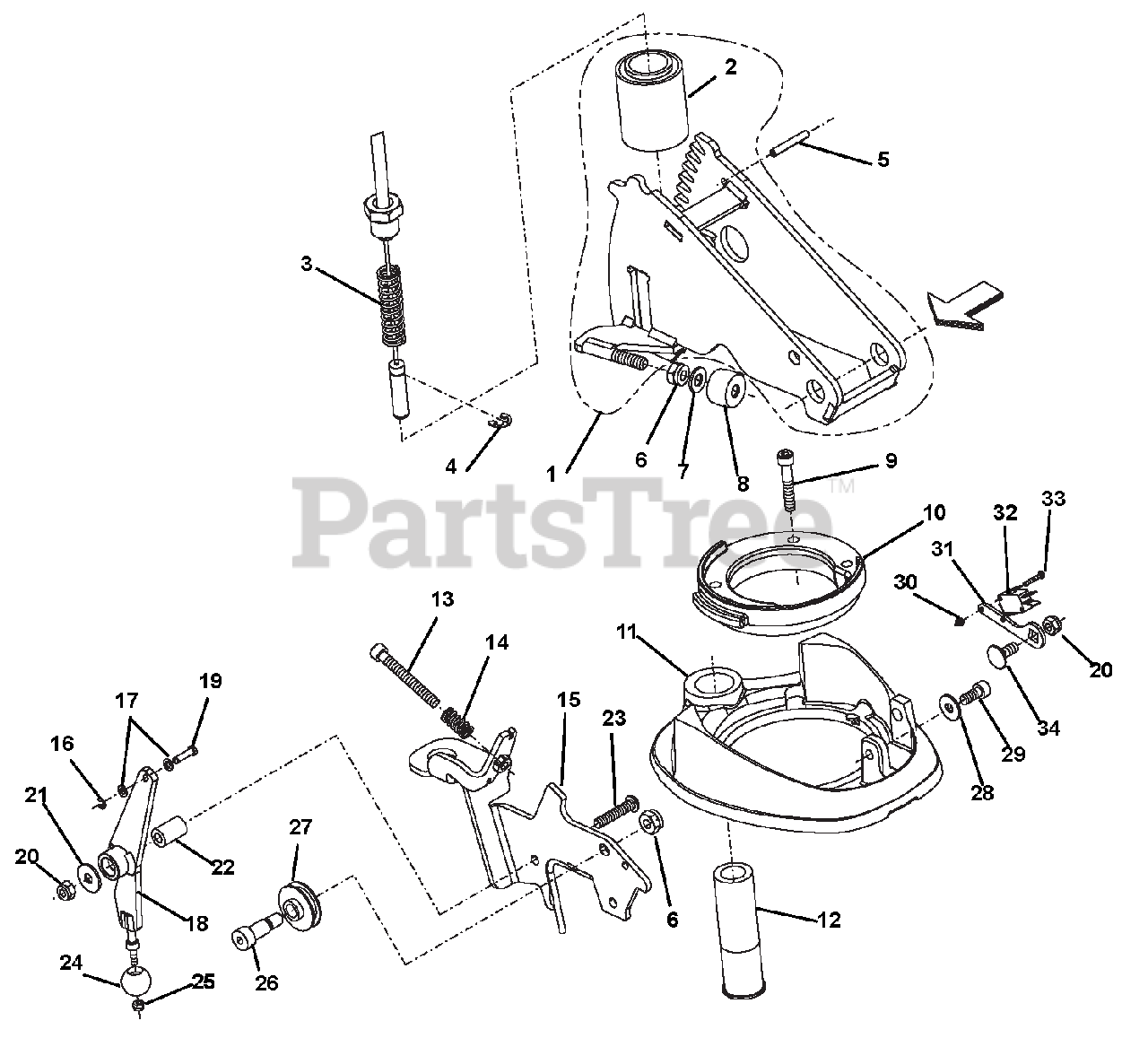

Handlebar Swivel Parts Diagram

  • Title

1

Gravely 08633400

SUPPORT HANDLE, INCL. POS. 2

$

$

Not available

2

Gravely 08630800

SILENTBLOC

$

$

Not available

3

Gravely 08630200

SPRING, PRESSURE

$

$

Not available

4

Gravely 08630400

WASHER, 31361 23X33X1.5

$

$

Not available

5

Gravely 08628100

PIN HEAVY, IS08752 6 X40
(Superseded to 00840300)

$

$

Not available

6

Gravely 08628600

NUT, LOCK, D985 M10

$

$

Not available

7

Gravely 08628700

WASHER, D125 10.5X21X2

$

$

Not available

8

Gravely 08631400

RUBBER ELEMENT, 25X10,5X20

$

$

Not available

9

Gravely 08633500

SCREW, CYLINDRICAL HEAD, D912

$

$

Not available

10

Gravely 08633600

SUPPORT

$

$

Not available

11

Gravely 08633700

SUPPORT HANDLE

$

$

Not available

12

Gravely 08632200

PIN

$

$

Not available

13

Gravely 08634400

BOLT D912 M8 X 65

$

$

Not available

14

Gravely 08674000

SPRING, PRESSURE

$

$

Not available

15

Gravely 08634500

HOLDING SHEET METAL

$

$

Not available

16

Gravely 08694600

WASHER, LOCK

$

$

Not available

17

Gravely 08614200

WASHER, D125 5.3X10X1

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 08636700

ADJUSTING LEVER

$

$

Not available

19

Gravely 08681900

BOLT

$

$

Not available

20

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

21

Gravely 08636800

WASHER, D9021 8,4X25X2
(Superseded to 00863600)

$

$

Not available

22

Gravely 08636900

BUSH

$

$

Not available

23

Gravely 08637000

COUNTERSUNK HEAD SCREW, ISO738

$

$

Not available

24

Gravely 08637100

BALL, STEEL

$

$

Not available

25

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 08672900

BOLT

$

$

Not available

27

Gravely 08637200

ROLLER

$

$

Not available

28

Gravely 08616300

WASHER, M 8

$

$

Not available

29

Gravely 08637300

SCREW, D912 M8X 18

$

$

Not available

30

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

31

Gravely 08672500

PLATE, LOCK

$

$

Not available

32

Gravely 08628000

SWITCH
(Superseded to 00690400)

$

$

Not available

33

Gravely 08607200

FLAT-HEADED SCREW, D85A M3X18
(Superseded to 08672800)

$

$

Not available

34

Gravely 08607800

WASHER

$

$

Not available
