985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydrostatic Pumps Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

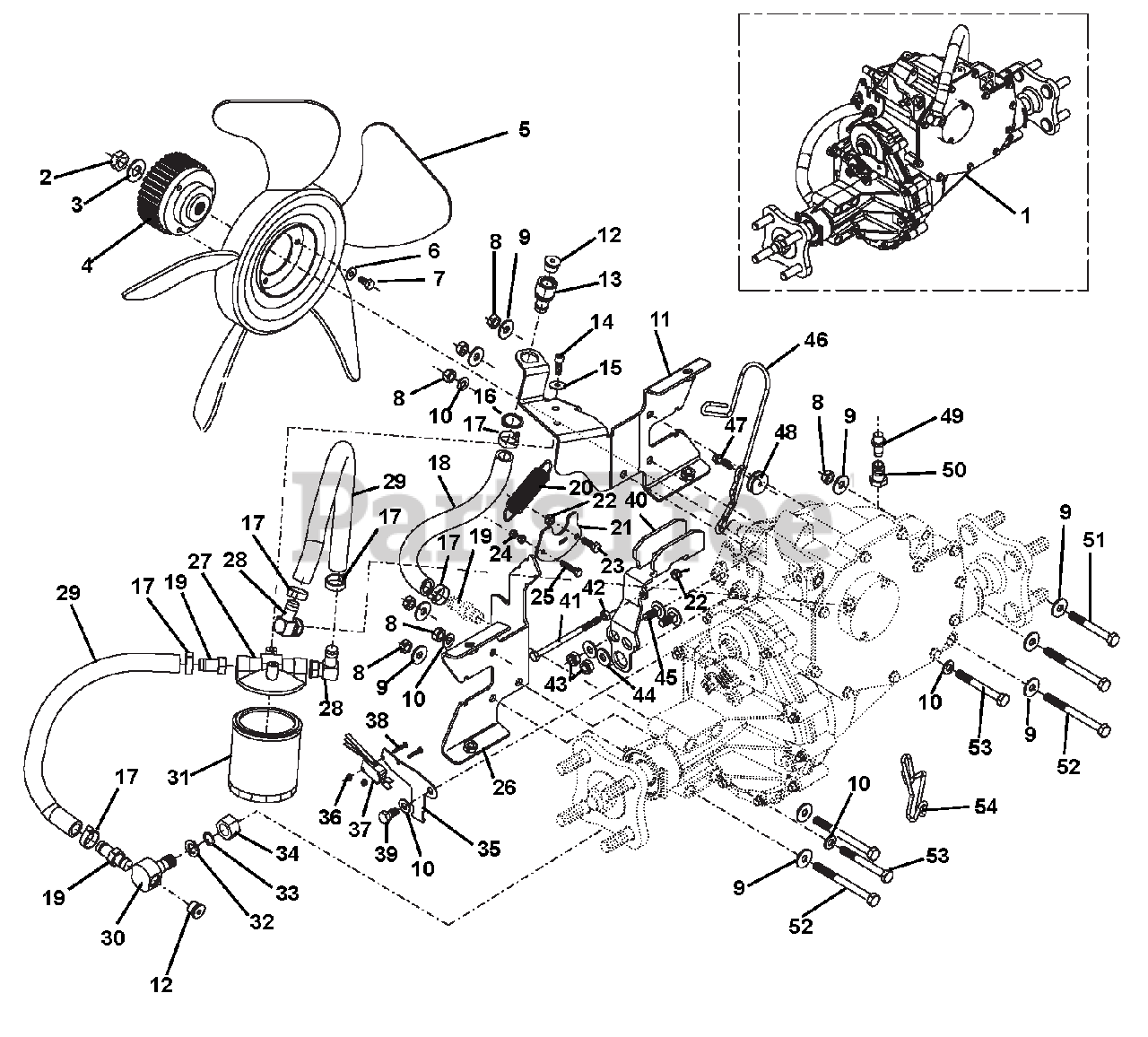

Hydrostatic Pumps Parts Diagram

  • Title

1

Gravely 08604100

HYDROSTAT

$

$

Not available

2

Gravely 08604700

NUT, SPECIAL

$

$

Not available

3

Gravely 08604600

WASHER, M12

$

$

Not available

4

Gravely 08604200

PULLEY, HYDRO
(Superseded to 08694000)

$

$

Not available

5

Gravely 08604400

FAN
(Superseded to 21543737)

$19.99

$

Usually ships in 4-12 days

0

6

Gravely 08609900

WASHER, 6.1X14.2X1.4 M6

$

$

Not available

7

Gravely 08614700

BOLT, HEX D933 M 6X 12

$

$

Not available

8

Gravely 08621300

NUT, HEX D934 M 8
(Superseded to 08605700)

$

$

Not available

9

Gravely 08616300

WASHER, M 8

$

$

Not available

10

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

11

Gravely 08604500

SUPPORT

$

$

Not available

12

Gravely 08613700

PLUG, STEEL (WITH SEAL)

Note: (with Seal)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 08604800

SUPPORT, TUBE

$

$

Not available

14

Gravely 08605000

SCREW, UNC 1/4"X5/8"
(Superseded to 00845700)

$

$

Not available

15

Gravely 08631900

WASHER, M6

$

$

Not available

16

Gravely 08605100

CIRCLIP, D471 20 1,20

$

$

Not available

17

Gravely 08605200

HOSE CLAMP

$

$

Not available

18

Gravely 08605300

PIPE

$

$

Not available

19

Gravely 08605400

FITTING

$

$

Not available

20

Gravely 08605500

TENSION SPRING 2,0/17,5X87

$

$

Not available

21

Gravely 08605600

LEVER

$

$

Not available

22

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

23

Gravely 08606000

HEXAGON BOLT, D933 M6X18

$

$

Not available

24

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 08606100

HEXAGON BOLT, D933 M5X25

$

$

Not available

26

Gravely 08606200

SUPPORT

$

$

Not available

27

Gravely 08606300

FILTER CASE

$

$

Not available

28

Gravely 08606400

FITTING

$

$

Not available

29

Gravely 08606500

PIPE

$

$

Not available

30

Gravely 08606600

CONNECTIONS, THREADED

$

$

Not available

31

Gravely 08606700

STUD, WHEEL MA14 X 1,5X50

$

$

Not available

32

Gravely 08606800

SUPPORTING RING

$

$

Not available

33

Gravely 08613500

RING, O

$

$

Not available

34

Gravely 08606900

HEXAGON NUT

$

$

Not available

35

Gravely 08607000

SUPPORT

$

$

Not available

36

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

37

Gravely 08607100

SWITCH
(Superseded to 08673800)

$

$

Not available

38

Gravely 08607200

FLAT-HEADED SCREW, D85A M3X18
(Superseded to 08672800)

$

$

Not available

39

Gravely 08607300

HEXAGON BOLT, UNF 5/16"X5/8"

$

$

Not available

40

Gravely 08607400

LEVER, FORWARD

$

$

Not available

41

Gravely 08607500

HEXAGON BOLT, D931 M6X100

$

$

Not available

42

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

43

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

44

Gravely 08607700

WASHER, BN737 8,4X20X2

$

$

Not available

45

Gravely 08607800

WASHER

$

$

Not available

46

Gravely 08607900

SPRING CLIP

$

$

Not available

47

Gravely 08608000

SCREW, DIN7500/D M5X20

$

$

Not available

48

Gravely 08608100

SUPPORT

$

$

Not available

49

Gravely 08608200

BREATHER

$

$

Not available

50

Gravely 08608300

FITTING
(Superseded to 07026300)

$26.99

$

In Stock, only 2 left!

0

51

Gravely 08605900

BOLT, HEX D931 M8X65

$

$

Not available

52

Gravely 08608400

HEXAGON BOLT, D931 M8X 90

$

$

Not available

53

Gravely 08608500

HEXAGON BOLT, D931 M8X70

$

$

Not available

54

Gravely 08608600

SPRING CLIP

$

$

Not available
