985401 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O. Drive Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

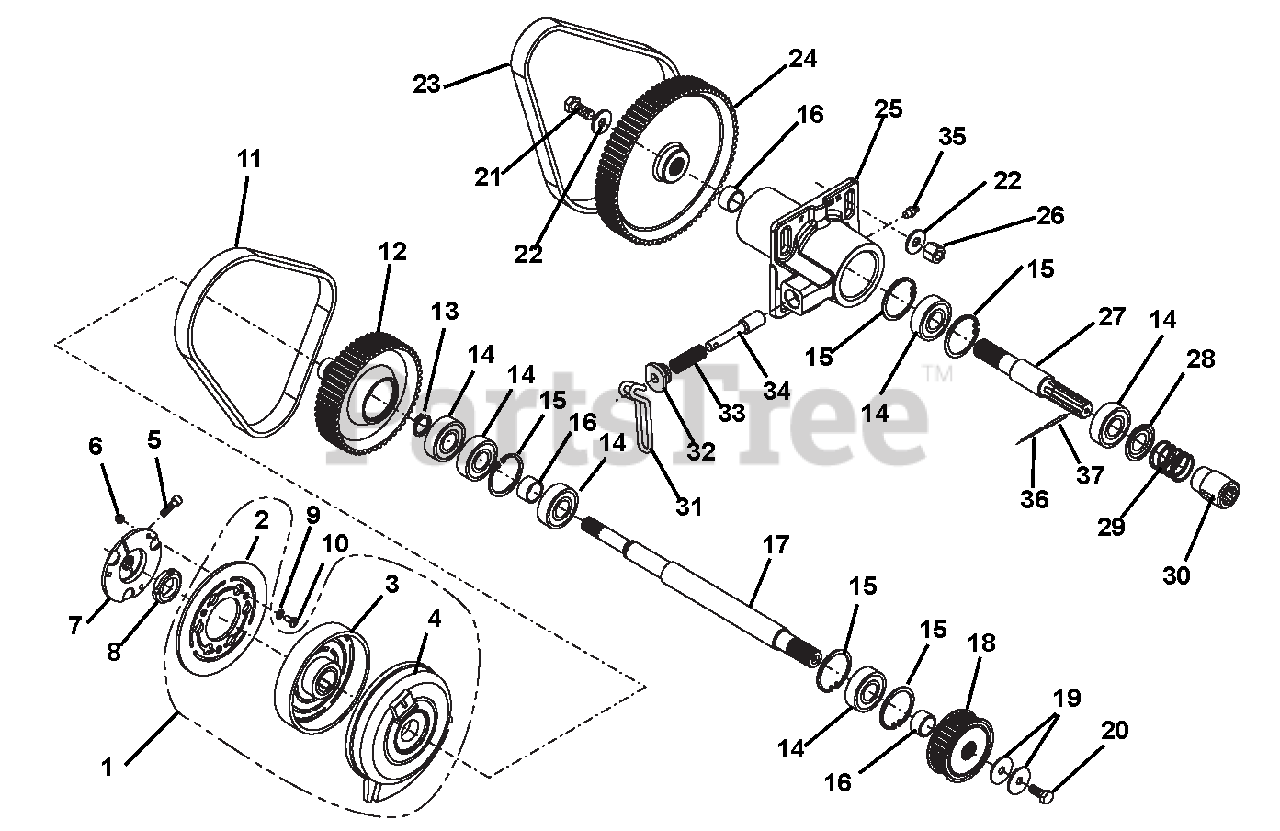

P.T.O. Drive Parts Diagram

  • Title

1

Gravely 08617900

CLUTCH, MAGNET, POS. 2-4

Note: (contains items 2 - 4)

$857.99

$

Usually ships in 4-12 days

0

2

Gravely 08614500

PLATE
(Superseded to 21554100)

$

$

Not available

3

Gravely 08614100

ROTOR
(Superseded to 08617900)

$857.99

$

Usually ships in 4-12 days

0

4

Gravely 08623200

BELLHOUSING, CLUTCH
(Superseded to 08617900)

$857.99

$

Usually ships in 4-12 days

0

5

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 08618300

DRIVER

$

$

Not available

8

Gravely 08614900

NUT, GROOVE D70852 M24X1.5

$

$

Not available

9

Gravely 08614200

WASHER, D125 5.3X10X1

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 08618500

SCREW, M 5X 12

$

$

Not available

11

Gravely 08619400

BELT, TOOTHED

$201.99

$

Usually ships in 4-12 days

0

12

Gravely 08623300

PULLEY

$

$

Not available

13

Gravely 08615200

CIRCLIP, D471 20 1.75

$

$

Not available

14

Gravely 08623400

BALL BEARING 6204 2RS/20X47X14

$55.99

$

Usually ships in 4-12 days

0

15

Gravely 08617100

CIRCLIP, D472 47 1.75

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 08615400

COLLAR

$

$

Not available

17

Gravely 08623500

CLUTCH, SHAFT

$

$

Not available

18

Gravely 08623600

PULLEY

$

$

Not available

19

Gravely 08619200

WASHER, FRICTION

$

$

Not available

20

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

21

Gravely 08623700

HEXAGON BOLT, D933 M10X25
(Superseded to 08683900)

$

$

Not available

22

Gravely 08616000

WASHER

$

$

Not available

23

Gravely 08623800

TOOTHED BELT, L=800 B=20
(Superseded to 08694400)

$122.99

$

Usually ships in 4-12 days

0

24

Gravely 08623900

PULLEY

$

$

Not available

25

Gravely 08619600

P.T.O, CASE

$

$

Not available

26

Gravely 08624000

HEXAGON NUT, D6330B M10

$

$

Not available

27

Gravely 08624100

POWER P.T.0
(Superseded to 08694100)

$

$

Not available

28

Gravely 08617600

NILOS, RING, N545 6204 ZAV

$

$

Not available

29

Gravely 08624200

PRESSURE SPRING, 2,25/29,75X47
(Superseded to 08694300)

$

$

Not available

30

Gravely 08624300

MUFF
(Superseded to 08694200)

$

$

Not available

31

Gravely 08616600

LOCK

$

$

Not available

32

Gravely 08616900

BOLT, CF 3851 =>

$

$

Not available

33

Gravely 08616700

SPRING, PRESSURE

$

$

Not available

34

Gravely 08616800

BOLT, LOCK

$

$

Not available

35

Gravely 08620000

LUBRICATOR, D71412B M 8X1 K

$

$

Not available

36

Gravely 08617500

DOWEL, SPRING, ISO 8752 2X 30

$

$

Not available

37

Gravely 08620100

DOWEL, SPRING, ISO 8752 3.5X30

$

$

Not available
