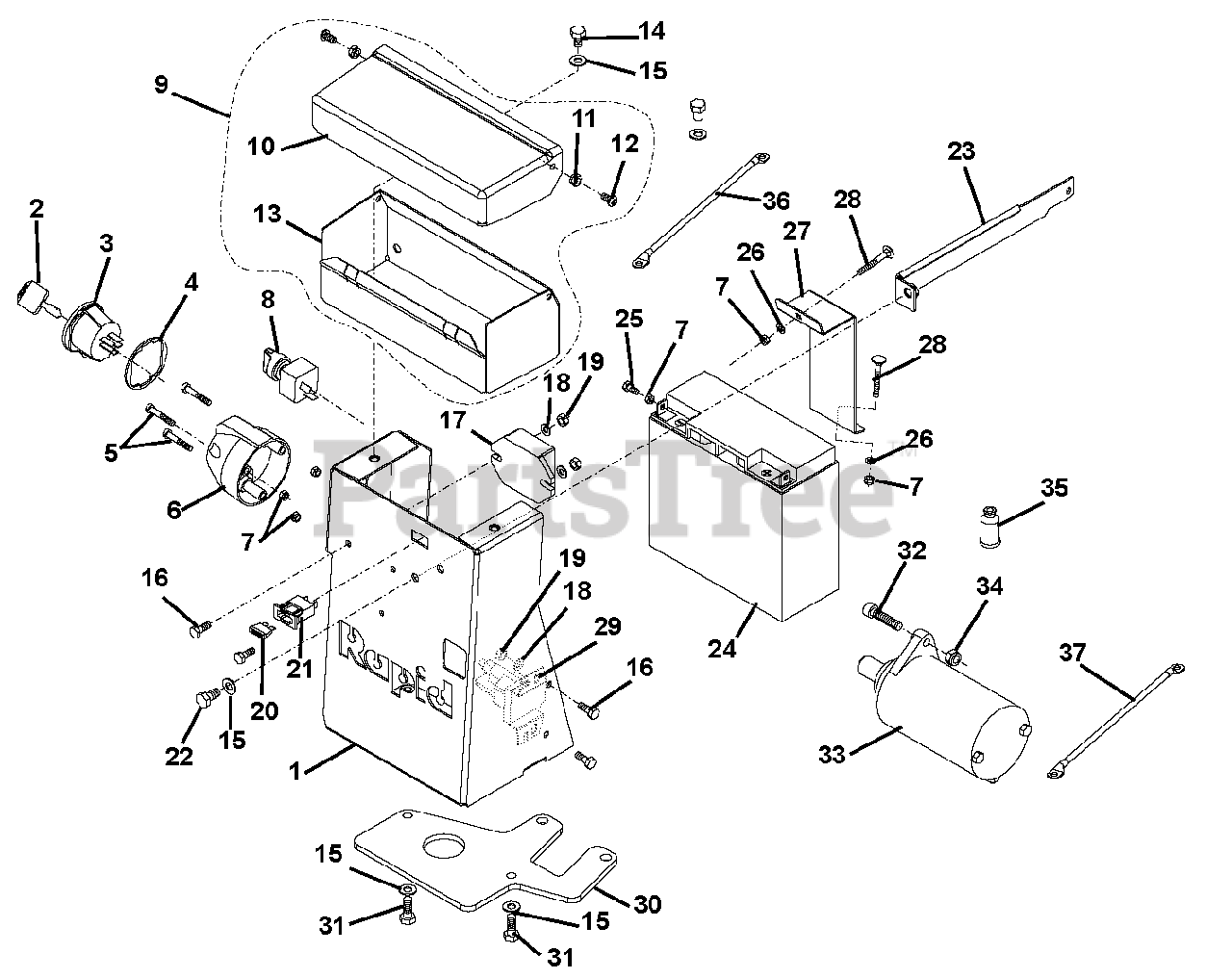

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Battery Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Battery Parts Diagram

  • Title

1

Gravely 08637600

Battery Container

$

$

Not available

2

Gravely 08697300

Assembly, Key

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 08697200

Assembly, Starter Switch

$66.99

$

Usually ships in 4-12 days

0

4

Gravely 08637700

Spacer
(Superseded to 00862200)

$

$

Not available

5

Gravely 00683100

Screw, Cylindrical Head

$

$

Not available

6

Gravely 00683200

Plug, Socket

$

$

Not available

7

Gravely 08614600

Nut, Lock M5

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 08670000

Switch, Rotary

$

$

Not available

9

Gravely 08637800

Tool Box Assembly, (Includes 10 - 13)

Note: (Includes 10 - 13)

$

$

Not available

10

Gravely 08668700

Cover

$

$

Not available

11

Gravely 08625000

Nut, Lock D985 M6

$

$

Not available

12

Gravely 08672200

Screw, M6 x 12

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 08668900

Box, Tool

$

$

Not available

14

Gravely 08621900

Bolt, Hex D933 M8 x 12

$

$

Not available

15

Gravely 08632300

Washer, M8
(Superseded to 08605800)

$

$

Not available

16

Gravely 00683300

Bolt, Hex M6 x 16

$

$

Not available

17

Gravely 00683400

Regulator

$

$

Not available

18

Gravely 08620600

Washer

$

$

Not available

19

Gravely 08620800

Nut, Hex M6

$

$

Not available

20

Gravely 08637500

15A, Fuse

$

$

Not available

21

Gravely 08637900

Fuse Box
(Superseded to 00690100)

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 08621400

Bolt, Hex M8 x 16

$

$

Not available

23

Gravely 00683500

Bracket

$

$

Not available

24

Gravely 08690700

Battery, RapidES 17-12 (12V 17AH) L 7.13 x W 2.99 x H 6.58

Note: (12V 17AH) L 7.13 x W 2.99 x H 6.58

$699.99

$

Usually ships in 4-12 days

0

25

Gravely 08638000

Bolt, D933 M5 x 12
(Superseded to 00862500)

$

$

Not available

26

Gravely 08614200

Washer, 5.3 x 10 x 1

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 08638100

Bow, Fastener
(Superseded to 00862600)

$

$

Not available

28

Gravely 08638200

Screw, Truss Head, D603 M5 x 40
(Superseded to 00862700)

$

$

Not available

29

Gravely 08696800

Relay

$

$

Not available

30

Gravely 00683600

Support, Battery

$

$

Not available

31

Gravely 08604300

Bolt, Hex M8 x 20

$

$

Not available

32

Gravely 00683700

Screw, Cylindrical Head

$

$

Not available

33

Gravely 00683800

Electrical Starter

$

$

Not available

34

Gravely 08622000

Nut, Lock M8

$

$

Not available

35

Gravely 08638400

Protecting Cap
(Superseded to 00690000)

$28.99

$

In Stock, only 1 left!

0

36

Gravely 00683900

Cable, Black

$43.99

$

Usually ships in 4-12 days

0

37

Gravely 00684000

Cable, Red

$

$

Not available
