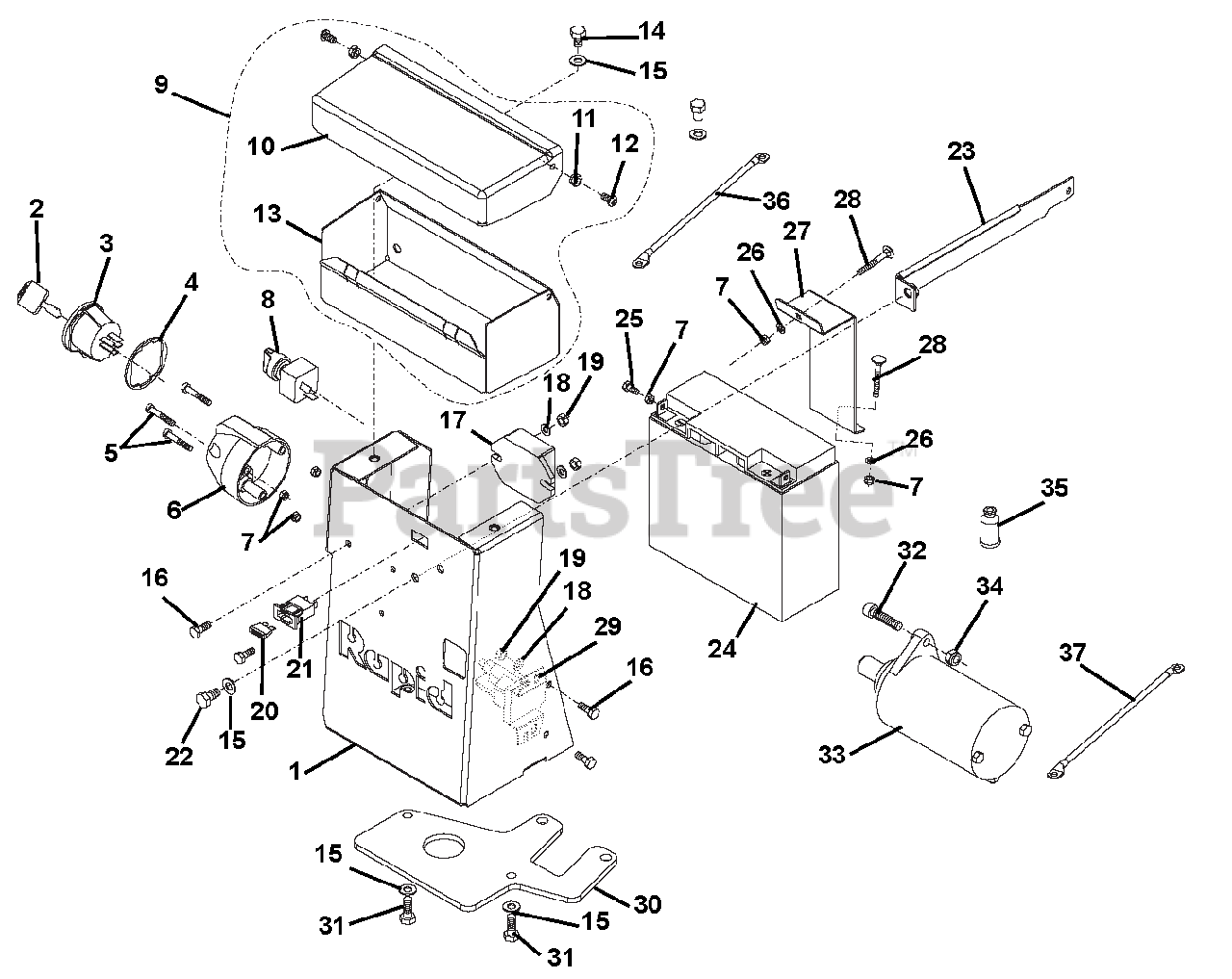

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Battery Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Battery Parts Diagram

  • Title

1

Gravely 08637600

BATTERY CONTAINER

$

$

Not available

2

Gravely 08697300

ASSY, KEY

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 08697200

ASSY, STARTER SWITCH

$66.99

$

Usually ships in 4-12 days

0

4

Gravely 08637700

SPACER
(Superseded to 00862200)

$

$

Not available

5

Gravely 00683100

SCREW, CYLINDRICAL HEAD, D84AM

$

$

Not available

6

Gravely 00683200

PLUG SOCKET, D72577 12/7A

$

$

Not available

7

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 08670000

SWITCH

$

$

Not available

9

Gravely 08637800

TOOL BOX ASSY., POS. 6-11

Note: (Includes 10 - 13)

$

$

Not available

10

Gravely 08668700

COVER

$

$

Not available

11

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

12

Gravely 08672200

SCREW, ISO7380 M 6X 12

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 08668900

BOX, TOOL

$

$

Not available

14

Gravely 08621900

BOLT, HEX, D933 M 8X 12

$

$

Not available

15

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

16

Gravely 00683300

HEXAGON BOLT, D933 M 6X 16

$

$

Not available

17

Gravely 00683400

REGULATOR, 691.185

$

$

Not available

18

Gravely 08620600

WASHER, M6

$

$

Not available

19

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

20

Gravely 08637500

15A, FUSE

$

$

Not available

21

Gravely 08637900

FUSE BOX
(Superseded to 00690100)

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available

23

Gravely 00683500

BRACKET

$

$

Not available

24

Gravely 08690700

BATTERY, RAPID

Note: (12V 17AH) L 7.13 x W 2.99 x H 6.58

$699.99

$

Usually ships in 4-12 days

0

25

Gravely 08638000

HEXAGON BOLT, D933 M5X12
(Superseded to 00862500)

$

$

Not available

26

Gravely 08614200

WASHER, D125 5.3X10X1

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 08638100

BOW, FASTENER
(Superseded to 00862600)

$

$

Not available

28

Gravely 08638200

TRUSS HEAD SCREW, D603 M5X40
(Superseded to 00862700)

$

$

Not available

29

Gravely 08696800

SOLENOID STARTER

$

$

Not available

30

Gravely 00683600

BATTERY SUPPORT

$

$

Not available

31

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

32

Gravely 00683700

SCREW, CYLINDRICAL HEAD

$

$

Not available

33

Gravely 00683800

ELECTRICAL STARTER, 715.208

$

$

Not available

34

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

35

Gravely 08638400

PROTECTING CAP
(Superseded to 00690000)

$28.99

$

Usually ships in 4-12 days

0

36

Gravely 00683900

CABLE BLACK

$43.99

$

Usually ships in 4-12 days

0

37

Gravely 00684000

CABLE RED

$

$

Not available
