985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Clutch Lever Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

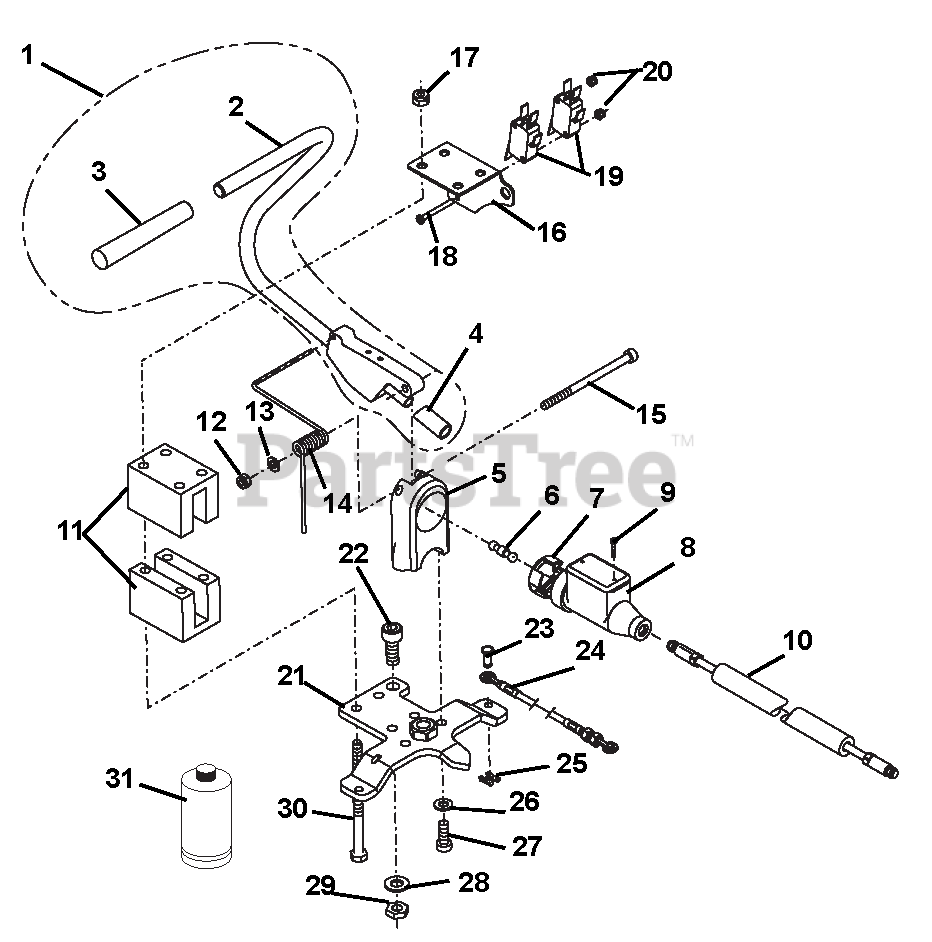

Clutch Lever Parts Diagram

  • Title

1

Gravely 08693700

LEVER, CLUTCH

$

$

Not available

2

Gravely 08678100

LEVER, CLUTCH

$

$

Not available

3

Gravely 08678300

KNOB, PLASTIC

$

$

Not available

4

Gravely 00684700

HOSE

$

$

Not available

5

Gravely 08678200

HOUSING

$

$

Not available

6

Gravely 08678400

TAPPET

$

$

Not available

7

Gravely 08678500

CLIP

$

$

Not available

8

Gravely 08678600

CYLINDER

$

$

Not available

9

Gravely 08678700

SCREW

$

$

Not available

10

Gravely 08651800

CLUTCH, CPL, PIPE

$

$

Not available

11

Gravely 08678900

DRIVER

$

$

Not available

12

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 08679000

WASHER, D7349 5.3X15X2

$

$

Not available

14

Gravely 08679100

SPRING, TORSION

$

$

Not available

15

Gravely 08679200

SCREW, D912 M 5X80

$

$

Not available

16

Gravely 08679300

PLATE, LOCK

$

$

Not available

17

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

18

Gravely 00684800

SCREW W/SLIT HEAD, D85A M 3X30

$

$

Not available

19

Gravely 08634200

SWITCH - RAPID NUMBER 218265

$21.99

$

Usually ships in 4-12 days

0

20

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

21

Gravely 08679600

WING

$

$

Not available

22

Gravely 08679700

SCREW, D912 M 8X 20

$

$

Not available

23

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

24

Gravely 08641100

CABLE "SHIFT"

$

$

Not available

25

Gravely 08694600

WASHER, LOCK

$

$

Not available

26

Gravely 08620600

WASHER, M6

$

$

Not available

27

Gravely 08675300

SCREW, D6912 M6X 16

$

$

Not available

28

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

29

Gravely 08674300

NUT, HEX, D439B M 8

$

$

Not available

30

Gravely 08679900

BOLT, HEX, D931 M6X 90

$

$

Not available

31

Gravely 08693800

OIL, 75ML

Note: (Includes Item 6)

$

$

Not available
