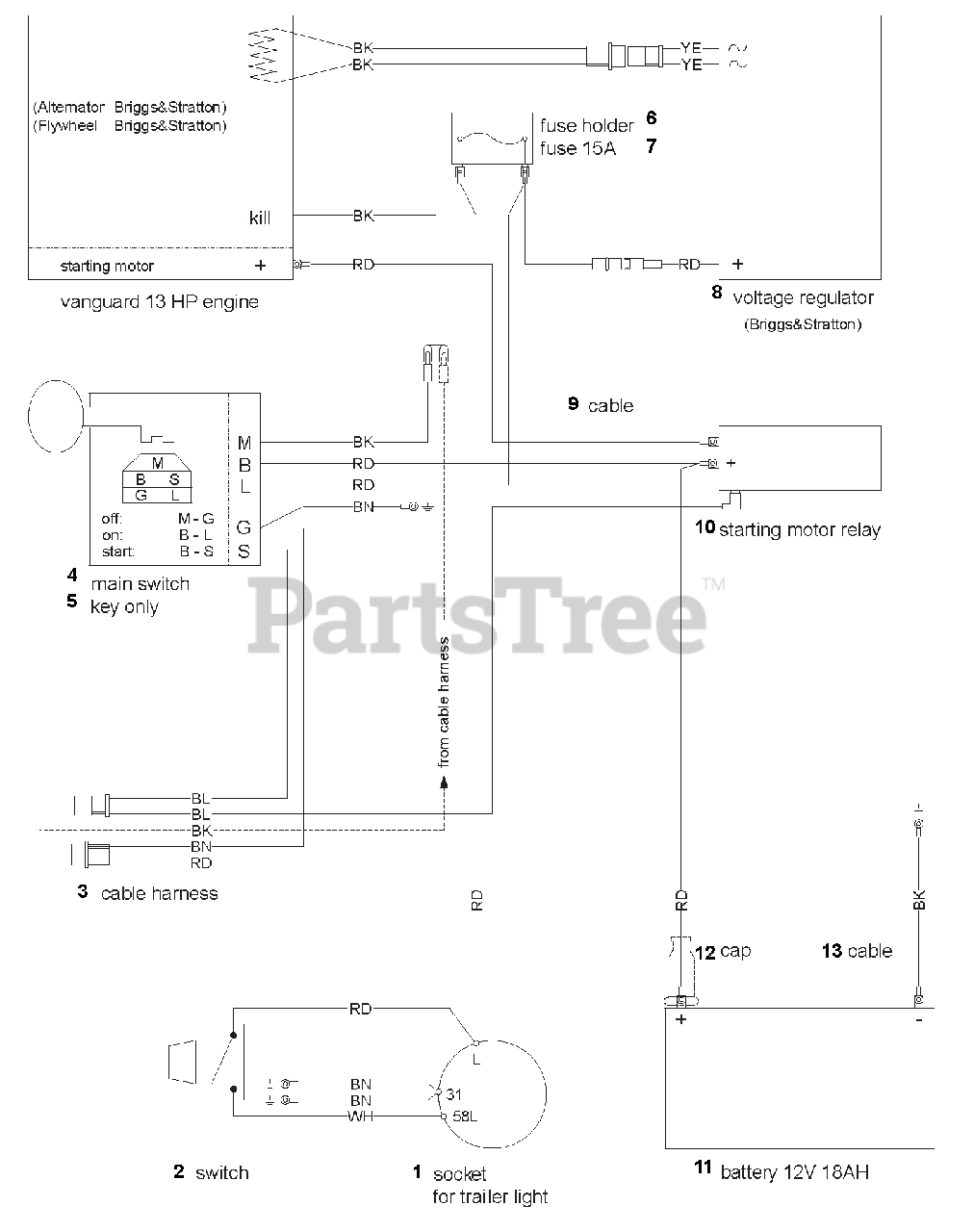

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Electrical Schematics Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Electrical Schematics Parts Diagram

  • Title

1

Gravely 00683200

PLUG SOCKET, D72577 12/7A

$

$

Not available

2

Gravely 00690600

SWITCH

$

$

Not available

3

Gravely 08696900

HARNESS, WIRING

$

$

Not available

4

Gravely 08697200

ASSY, STARTER SWITCH

$66.99

$

Usually ships in 4-12 days

0

5

Gravely 08697300

ASSY, KEY

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 00690100

FUSE BOX

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 08637500

15A, FUSE

$

$

Not available

8

Gravely 00683400

REGULATOR, 691.185

$

$

Not available

9

Gravely 00684000

CABLE RED

$

$

Not available

10

Gravely 08696800

SOLENOID STARTER

$

$

Not available

11

Gravely 08690700

BATTERY, RAPID

$699.99

$

Usually ships in 4-12 days

0

12

Gravely 00690000

CAP

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 00683900

CABLE BLACK

$43.99

$

Usually ships in 4-12 days

0
