985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

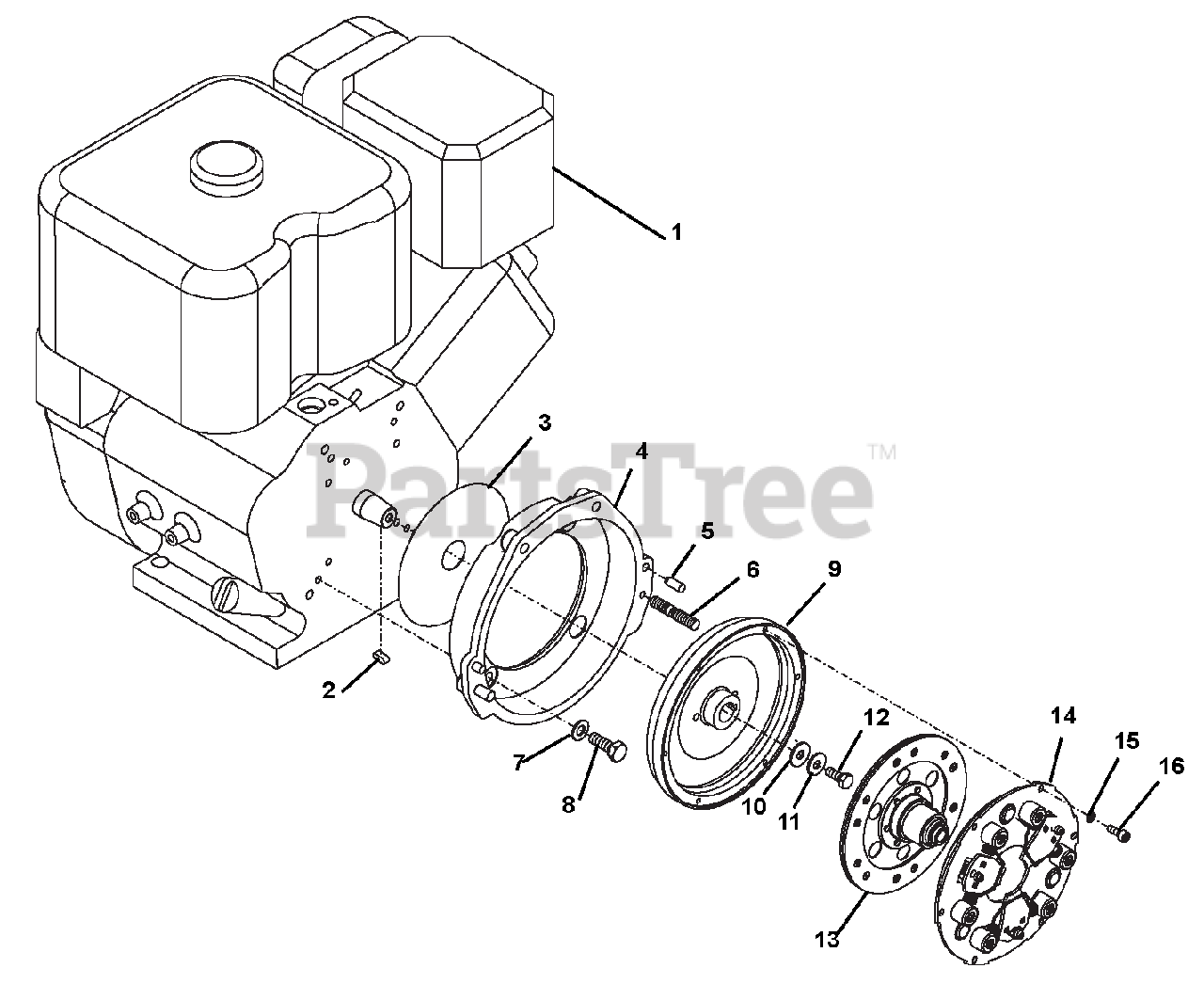

Engine (1) Parts Diagram

  • Title

1

Gravely 08664500

ENGINE, BASCO

$

$

Not available

2

Gravely 08664600

KEY, FEATHER, D6885A 6X 6X 16

$

$

Not available

3

Gravely 08664700

PLATE, INTERMEDIATE

$

$

Not available

4

Gravely 08664800

ENGINE, FLANGE

$

$

Not available

5

Gravely 08664900

PIN, STRAIGHT, BN 855 8-H8X 20

$

$

Not available

6

Gravely 08639700

BOLT, STUD D835 M10FOX35

$

$

Not available

7

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

8

Gravely 08665100

BOLT, HEX, UNC 3/8"X1"

$

$

Not available

9

Gravely 08665200

FLYWHEEL

$

$

Not available

10

Gravely 08665300

WASHER, D440 9.5X28X3

$

$

Not available

11

Gravely 08616300

WASHER, M 8

$

$

Not available

12

Gravely 08604300

BOLT, HEX D933 M8X20

$

$

Not available

13

Gravely 08665600

DISK, CLUTCH

$

$

Not available

14

Gravely 08665700

ASSY., CLUTCH

$

$

Not available

15

Gravely 08661300

WASHER, FORM Z 6.1/9.9X1.4

$

$

Not available

16

Gravely 08665800

SCREW, D912 M 6X 14

$

$

Not available
