985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

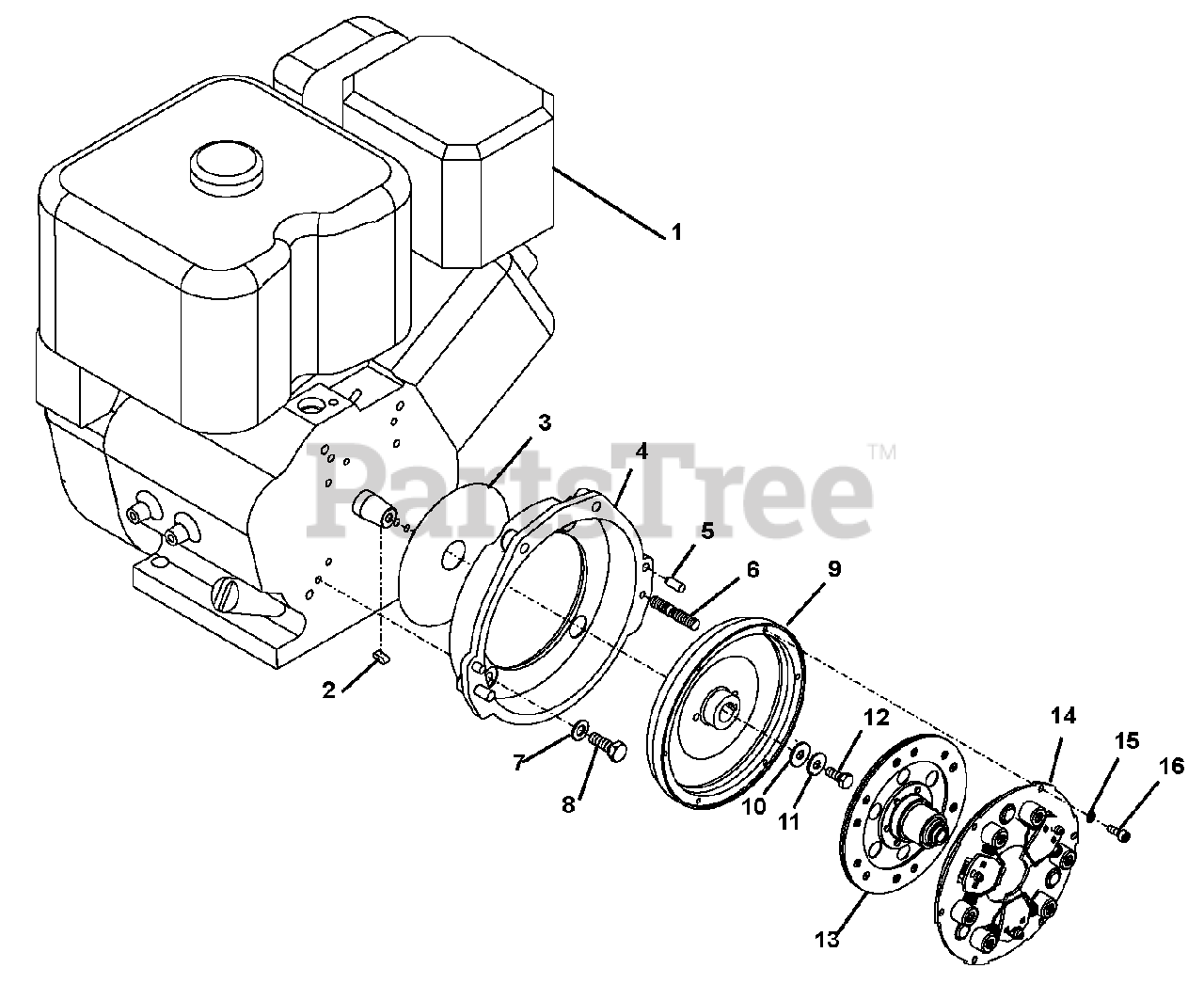

Engine (1) Parts Diagram

  • Title

1

Gravely 08664500

Engine, Basco

$

$

Not available

2

Gravely 08664600

Feather Key

$

$

Not available

3

Gravely 08664700

Plate, Intermediate

$

$

Not available

4

Gravely 08664800

Flange Engine

$

$

Not available

5

Gravely 08664900

Straight Pin

$

$

Not available

6

Gravely 08639700

Bolt, Stud

$

$

Not available

7

Gravely 08642500

Washer, Form Steel 10.2/20.25 x 1.6

$

$

Not available

8

Gravely 08665100

Bolt, Hex 3/8" x 1"

$

$

Not available

9

Gravely 08665200

Flywheel

$

$

Not available

10

Gravely 08665300

Washer, D440 9.5 x 28 x 3

$

$

Not available

11

Gravely 08616300

Washer, M8

$

$

Not available

12

Gravely 08604300

Bolt, Hex D933 M8 x 20

$

$

Not available

13

Gravely 08665600

Disk, Clutch

$

$

Not available

14

Gravely 08665700

Clutch Assembly

$

$

Not available

15

Gravely 08661300

Washer

$

$

Not available

16

Gravely 08665800

Screw, M6 x 14

$

$

Not available
