985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

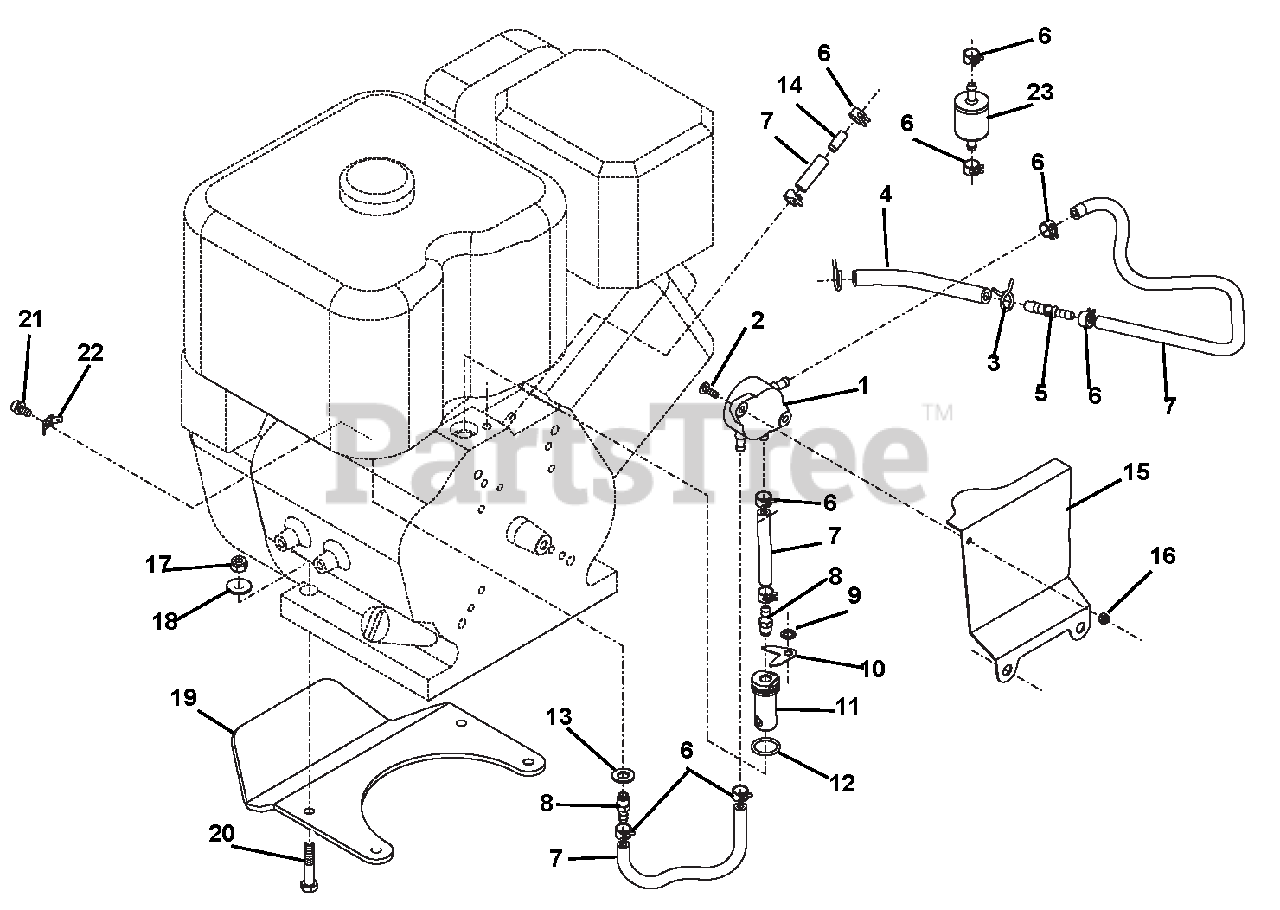

Engine (2) Parts Diagram

  • Title

1

Gravely 08665900

FUEL, PUMP, 808.856

$

$

Not available

2

Gravely 08614300

SEAL, LIP

$18.99

$

In Stock, Qty 7

0

3

Gravely 08666100

HOSE, CLAMP

$

$

Not available

4

Gravely 08666200

PIPE, 904001 LW 14X8

$

$

Not available

5

Gravely 08666300

NIPPLE, REDUCTION, GRS 8-6

$

$

Not available

6

Gravely 08666400

CLAMP, 93.053

$

$

Not available

7

Gravely 08666500

PIPE

$

$

Not available

8

Gravely 08666600

CONNECTOR, 495.194

$

$

Not available

9

Gravely 08666700

WASHER, FORM Z 8.2/12.7X1.4

$

$

Not available

10

Gravely 08666800

LOCKWASHER

$

$

Not available

11

Gravely 08666900

TUBE

$

$

Not available

12

Gravely 08677000

DECAL, DANGER (RAPID M AND U)

$

$

Not available

13

Gravely 08631300

WASHER

$

$

Not available

14

Gravely 08664900

PIN, STRAIGHT, BN 855 8-H8X 20

$

$

Not available

15

Gravely 08667100

PIPE, SAFETY

$

$

Not available

16

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

18

Gravely 08616300

WASHER, M 8

$

$

Not available

19

Gravely 08667400

PLATE, GUARD

$

$

Not available

20

Gravely 08667500

BOLT, HEX, D931 M 8X 45

$

$

Not available

21

Gravely 08667600

BOLT, HEX, D931 M 6X 30

$

$

Not available

22

Gravely 08667700

SHELL, CABLE

$

$

Not available

23

Gravely 00682500

GASOLINE FILTER, BRIGGS

$15.99

$

Usually ships in 4-12 days

0
