985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine (3) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

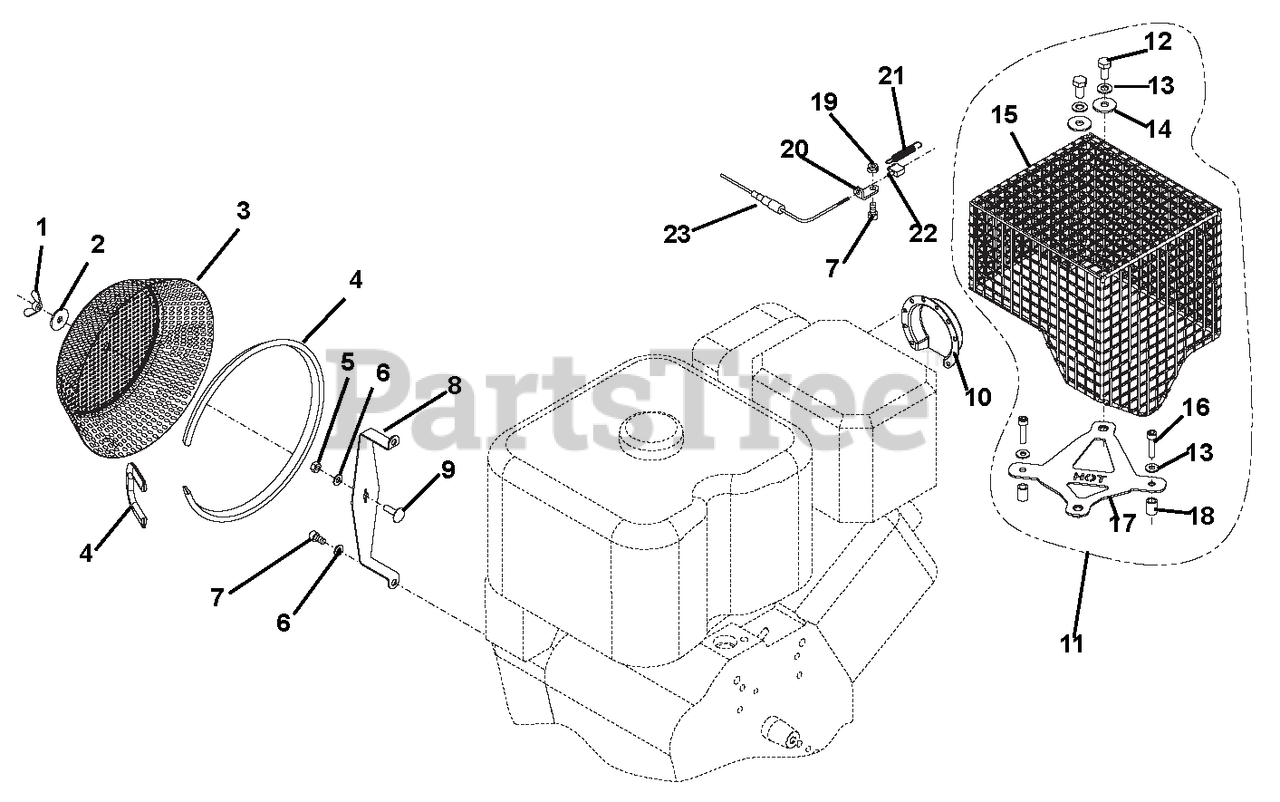

Engine (3) Parts Diagram

  • Title

1

Gravely 08620200

NUT, WING, M6

$

$

Not available

2

Gravely 08620300

WASHER, 7X25X1.8

$

$

Not available

3

Gravely 08668100

BONNET

$

$

Not available

4

Gravely 08668200

GUARD, EDGE, N802 6.5X 8

$

$

Not available

5

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

6

Gravely 08620600

WASHER, M6

$

$

Not available

7

Gravely 08668400

SCREW, D912 M 6X 12

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 08668500

BRACKET

$

$

Not available

9

Gravely 08620900

SCREW,

$

$

Not available

10

Gravely 00682600

DEFLECTOR, 393761

$

$

Not available

11

Gravely 00682700

HEAT PROTECTOR ASSY, POS.12-18

Note: (contains 12 - 18)

$

$

Not available

12

Gravely 08621400

BOLT, HEX, D933 M 8X 16

$

$

Not available

13

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

14

Gravely 08636800

WASHER, D9021 8,4X25X2
(Superseded to 00863600)

$

$

Not available

15

Gravely 00682800

HEAT PROTECTOR

$

$

Not available

16

Gravely 08662500

SCREW, D912 M 6X 25

$

$

Not available

17

Gravely 00682900

BRACKET

$

$

Not available

18

Gravely 08670100

BUSH, DISTANCE

$

$

Not available

19

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

20

Gravely 08669300

SHACKLE

$

$

Not available

21

Gravely 08669400

SPRING, TENSION, 1.2/10.8X62

$

$

Not available

22

Gravely 08669500

NIPPLE, 2 MM

$

$

Not available

23

Gravely 08693600

ASSY, CABLE

$

$

Not available
