985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

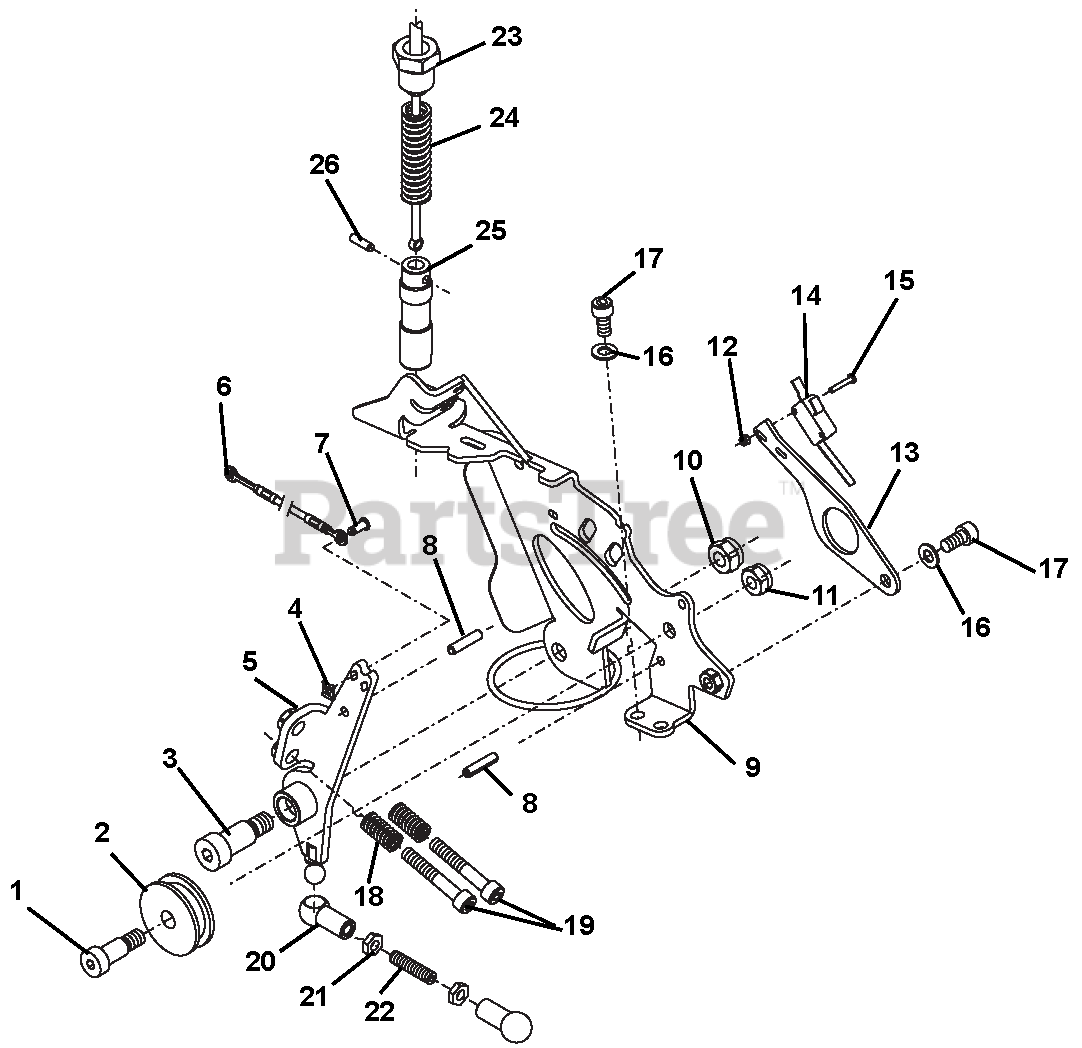

Handlebar (1) Parts Diagram

  • Title

1

Gravely 08672900

BOLT

$

$

Not available

2

Gravely 08673000

ROLLER

$

$

Not available

3

Gravely 08673100

BOLT

$

$

Not available

4

Gravely 08694600

WASHER, LOCK

$

$

Not available

5

Gravely 08673200

ROD, SHIFT

$

$

Not available

6

Gravely 08673300

DRIVING, CABLE

$

$

Not available

7

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

8

Gravely 08673400

DOWEL, SPRING, ISO8752 6 X 26

$

$

Not available

9

Gravely 08673500

PLATE, LOCK

$

$

Not available

10

Gravely 08671100

NUT, LOCK, D985 M12

$

$

Not available

11

Gravely 08628600

NUT, LOCK, D985 M10

$

$

Not available

12

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

13

Gravely 08673700

PLATE, LOCK

$

$

Not available

14

Gravely 08673800

DRIVING, SWITCH

$

$

Not available

15

Gravely 08672800

FLAT-HEADED SCREW, D85A M 3X18

$

$

Not available

16

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

17

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

18

Gravely 08674000

SPRING, PRESSURE

$

$

Not available

19

Gravely 08631600

SCREW, M8X50 D912 17932

$

$

Not available

20

Gravely 08633200

BEARING BUSHING

$

$

Not available

21

Gravely 08674300

NUT, HEX, D439B M 8

$

$

Not available

22

Gravely 08622300

PIN, THREADED M8X35

$

$

Not available

23

Gravely 08674400

SWIVELLING HANDLEBAR, CABLE

$

$

Not available

24

Gravely 08674500

SPRING, PRESSURE

$

$

Not available

25

Gravely 08674600

BOLT, BLOCK

$

$

Not available

26

Gravely 08674700

PIN, STRAIGHT, D6325 5-H6X 18

$

$

Not available
