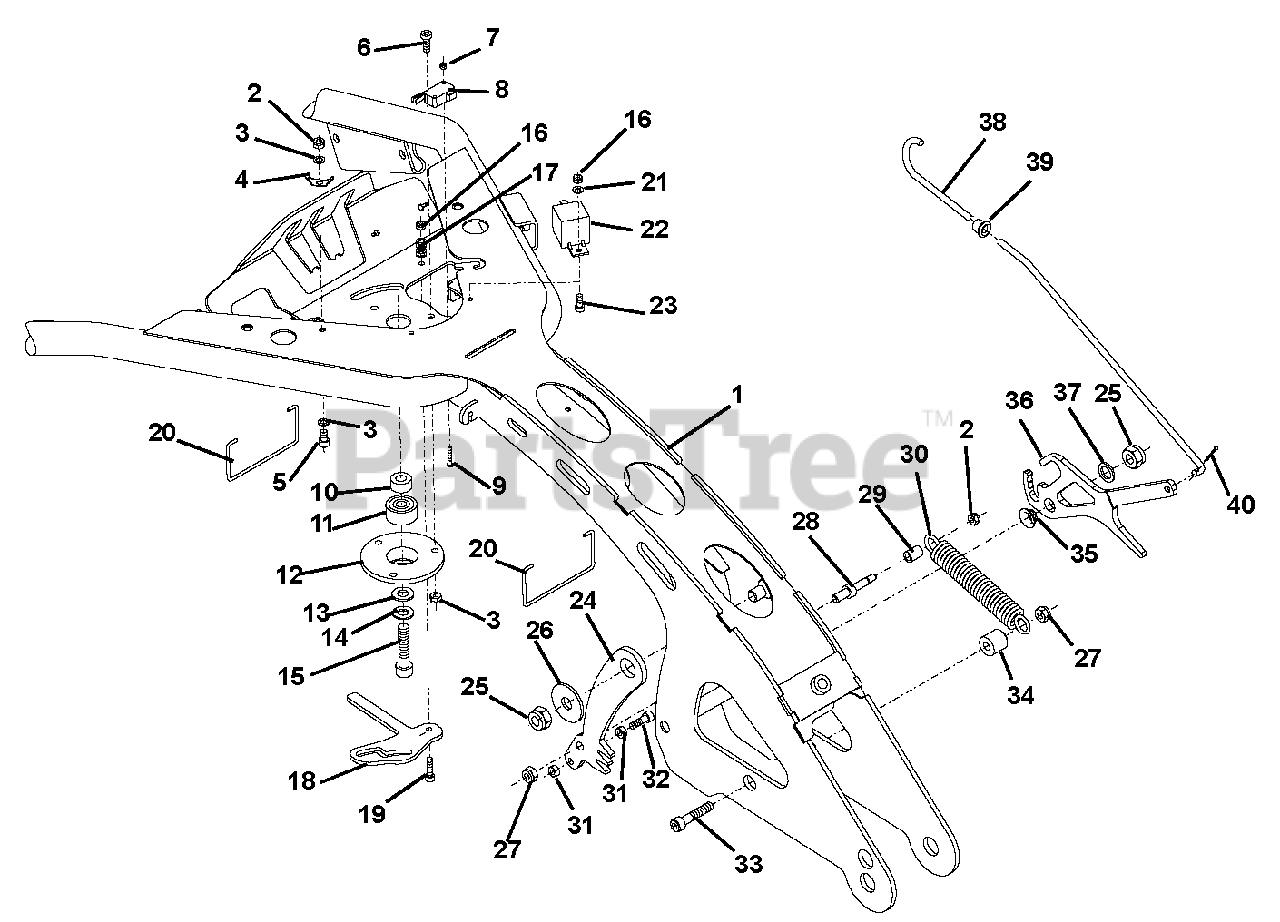

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Handlebar (2) Parts Diagram

  • Title

1

Gravely 08674800

Handle

$

$

Not available

2

Gravely 08625000

Nut, Lock M6

$

$

Not available

3

Gravely 08675000

Washer, Lock M6

$

$

Not available

4

Gravely 08667700

Shell, Cable

$

$

Not available

5

Gravely 08620500

Screw, M6 x 10

$

$

Not available

6

Gravely 08675300

Screw, M6 x 16

$

$

Not available

7

Gravely 08634600

Nut, Lock D985 M3

$

$

Not available

8

Gravely 08628000

Switch
(Superseded to 00690400)

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 08675500

Screw, M3 x 18

$

$

Not available

10

Gravely 08675600

Bushing

$

$

Not available

11

Gravely 08675700

Bearing, Ball

$

$

Not available

12

Gravely 08675800

Bracket, Bearing

$

$

Not available

13

Gravely 08675900

Washer, 10.5 x 21 x 2/2

$

$

Not available

14

Gravely 08642500

Washer, 10.2/20.25 x 1.6

$

$

Not available

15

Gravely 08644700

Screw, M10 x 45

$

$

Not available

16

Gravely 08614600

Nut, Lock

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 08676100

Washer, Spring 10 x 5.2

$

$

Not available

18

Gravely 08676200

Bar, Lock

$

$

Not available

19

Gravely 08625700

Screw, M5 x 20

$

$

Not available

20

Gravely 08676400

Cable Guide

$

$

Not available

21

Gravely 08634300

Washer, 5.1/10.2 x 1.0

$

$

Not available

22

Gravely 08629000

Relay

$71.99

$

Usually ships in 4-12 days

0

23

Gravely 08625300

Screw, D912 M5 x 12

$

$

Not available

24

Gravely 08676500

Lever

$

$

Not available

25

Gravely 08671100

M12

$

$

Not available

26

Gravely 08671000

Washer, 13 x 40 x 3

$

$

Not available

27

Gravely 08622000

Nut, Lock M8

$

$

Not available

28

Gravely 00684500

Spring Retainer

$

$

Not available

29

Gravely 08670100

Bushing, Distance

$

$

Not available

30

Gravely 08677100

Spring, Tension 3.2/19.3 x 122

$

$

Not available

31

Gravely 08620800

Nut, Hex M6

$

$

Not available

32

Gravely 08618100

Screw, M6 x 20

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 08677300

Screw, M8 x 40A

$

$

Not available

34

Gravely 08677400

Spring, Retainer

$

$

Not available

35

Gravely 08677500

Bushing

$

$

Not available

36

Gravely 08684600

Rod, Shift

$

$

Not available

37

Gravely 08677700

Washer, 13 x 20

$

$

Not available

38

Gravely 08677800

Lever Adjustment, High Compression

$

$

Not available

39

Gravely 08677900

Bushing

$

$

Not available

40

Gravely 08678000

Pin, Cotter

$

$

Not available
