985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

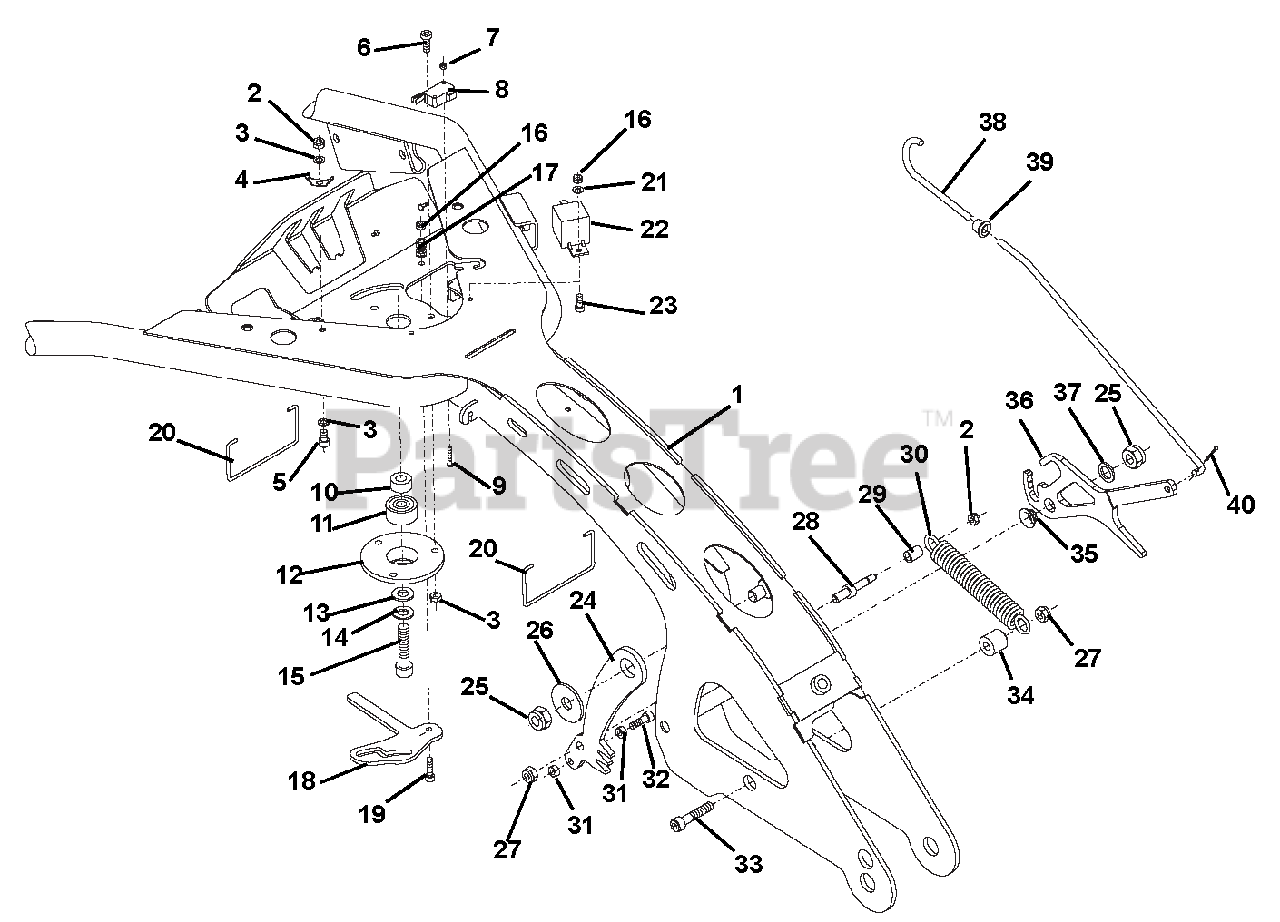

Handlebar (2) Parts Diagram

  • Title

1

Gravely 08674800

HANDLE

$

$

Not available

2

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

3

Gravely 08675000

LOCK WASHER, D6798A M 6

$

$

Not available

4

Gravely 08667700

SHELL, CABLE

$

$

Not available

5

Gravely 08620500

SCREW, M6X10

$

$

Not available

6

Gravely 08675300

SCREW, D6912 M6X 16

$

$

Not available

7

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

8

Gravely 08628000

SWITCH
(Superseded to 00690400)

$

$

Not available

9

Gravely 08675500

SCREW, D84A M 3X 18

$

$

Not available

10

Gravely 08675600

BUSH

$

$

Not available

11

Gravely 08675700

BEARING, BALL, 3200 2RS

$

$

Not available

12

Gravely 08675800

BEARING, BRACKET

$

$

Not available

13

Gravely 08675900

WASHER, D125 10.5X21X2/2

$

$

Not available

14

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

15

Gravely 08644700

SCREW, D912 M10X 45

$

$

Not available

16

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 08676100

WASHER, SPRING, D2093A 10 X 52

$

$

Not available

18

Gravely 08676200

BAR, LOCK

$

$

Not available

19

Gravely 08625700

GUARD, SHEET METAL

$

$

Not available

20

Gravely 08676400

GUIDE, CABLE

$

$

Not available

21

Gravely 08634300

WASHER, M5

$

$

Not available

22

Gravely 08629000

RELAY

$76.99

$

Usually ships in 4-12 days

0

23

Gravely 08625300

SCREW, 912 M5X12

$

$

Not available

24

Gravely 08676500

LEVER

$

$

Not available

25

Gravely 08671100

NUT, LOCK, D985 M12

$

$

Not available

26

Gravely 08671000

WASHER, D9021 13 X40X3

$

$

Not available

27

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

28

Gravely 00684500

SPRING RETAINER

$

$

Not available

29

Gravely 08670100

BUSH, DISTANCE

$

$

Not available

30

Gravely 08677100

SPRING, TENSION, 3.2/19.3X122

$

$

Not available

31

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

32

Gravely 08618100

SCREW

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 08677300

SCREW, D912 M 8X 40A

$

$

Not available

34

Gravely 08677400

RETAINER, SPRING

$

$

Not available

35

Gravely 08677500

BUSH, 12/14/20X7

$

$

Not available

36

Gravely 08684600

ROD, SHIFT

$

$

Not available

37

Gravely 08677700

WASHER, D433 13 X20

$

$

Not available

38

Gravely 08677800

LEVER ADJUST, HIGH COMP

$

$

Not available

39

Gravely 08677900

BUSHING

$

$

Not available

40

Gravely 08678000

PIN, COTTER, D94 2 X 16

$

$

Not available
