985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar Swivel Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

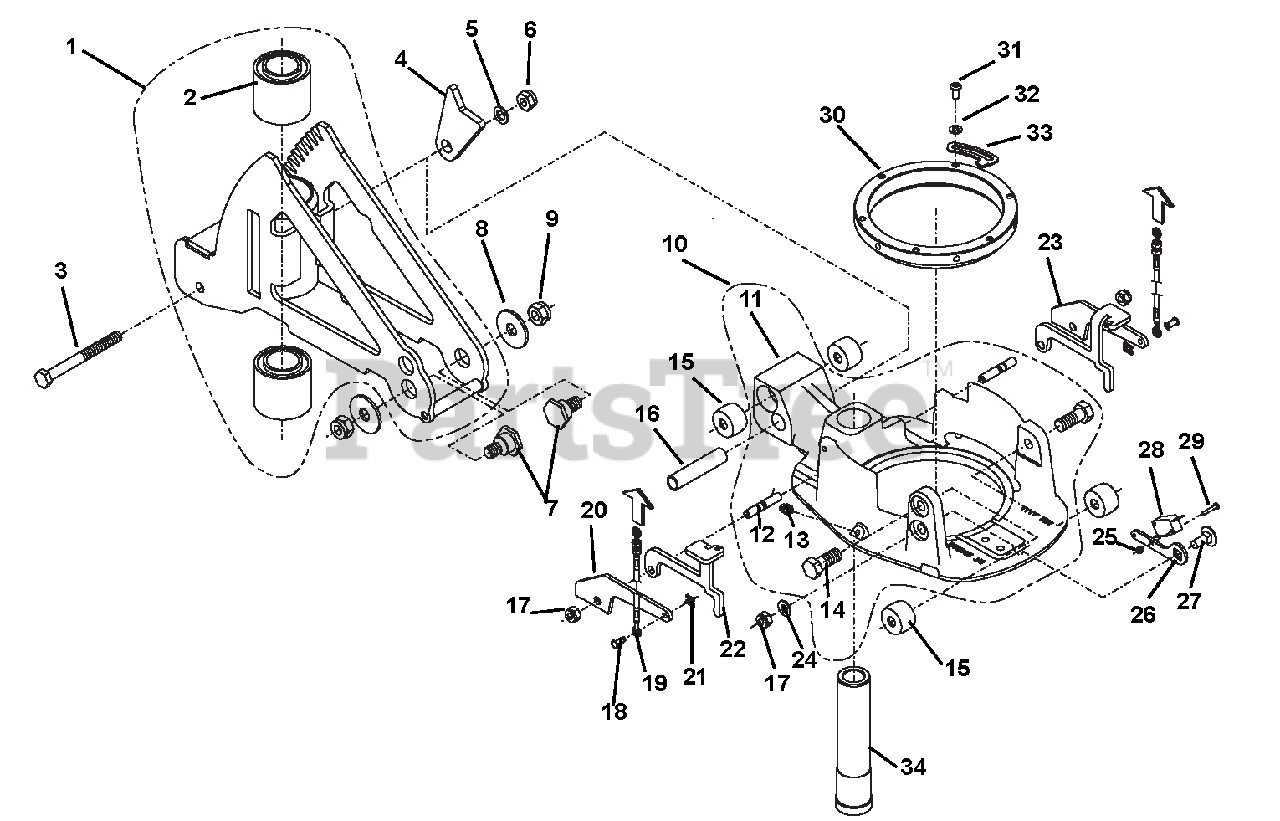

Handlebar Swivel Parts Diagram

  • Title

1

Gravely 00684100

SUPPORT HANDLE

$

$

Not available

2

Gravely 08670500

SILENTBLOC

$

$

Not available

3

Gravely 08670600

BOLT, HEX, D931 M10X100

$

$

Not available

4

Gravely 00684200

STOP

$

$

Not available

5

Gravely 08670700

WASHER, D433 10.5X18

$

$

Not available

6

Gravely 08628600

NUT, LOCK, D985 M10

$

$

Not available

7

Gravely 08670900

SCREW

$

$

Not available

8

Gravely 08671000

WASHER, D9021 13 X40X3

$

$

Not available

9

Gravely 08671100

NUT, LOCK, D985 M12

$

$

Not available

10

Gravely 00684300

SUPPORT HANDLE ASSY, POS.11-14

Note: (Includes 11 - 14)

$

$

Not available

11

Gravely 00684400

SUPPORT HANDLE

$

$

Not available

12

Gravely 08671800

BOLT, STUD, D835 M8FOX30

$

$

Not available

13

Gravely 08632100

LUBRICATOR

$

$

Not available

14

Gravely 08672000

BOLT, HEX, D933 M12X 30

$

$

Not available

15

Gravely 08631400

RUBBER ELEMENT, 25X10,5X20

$

$

Not available

16

Gravely 08671300

SPACER, DISTANCE

$

$

Not available

17

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

18

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

19

Gravely 08671400

STEERING, CABLE

$

$

Not available

20

Gravely 08671500

BRACKET

$

$

Not available

21

Gravely 08694600

WASHER, LOCK

$

$

Not available

22

Gravely 08671600

STEERING, RIGHT ARM

$

$

Not available

23

Gravely 08671700

STEERING LEFT, LEVER

$

$

Not available

24

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

25

Gravely 08634600

NUT, LOCK, D985 M3

$

$

Not available

26

Gravely 08672500

PLATE, LOCK

$

$

Not available

27

Gravely 08672600

SCREW, TRUSS HEAD

$

$

Not available

28

Gravely 08628000

SWITCH
(Superseded to 00690400)

$

$

Not available

29

Gravely 08672800

FLAT-HEADED SCREW, D85A M 3X18

$

$

Not available

30

Gravely 08672100

BUCKLE

$

$

Not available

31

Gravely 08672200

SCREW, ISO7380 M 6X 12

$10.99

$

Usually ships in 4-12 days

0

32

Gravely 08620600

WASHER, M6

$

$

Not available

33

Gravely 08672300

LOCKWASHER

$

$

Not available

34

Gravely 08672400

BEARING, TUBE

$

$

Not available
