985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

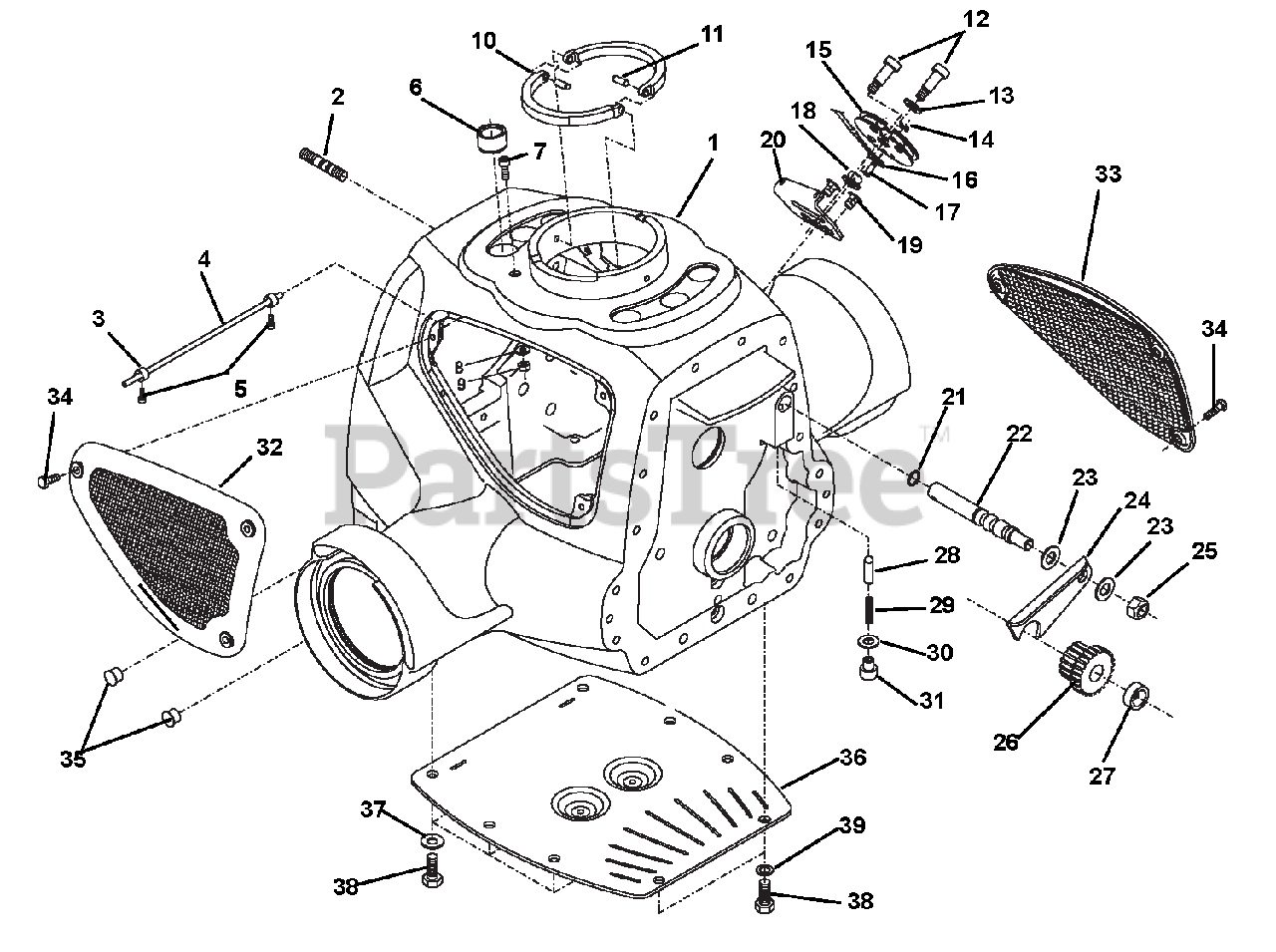

Housing (1) Parts Diagram

  • Title

1

Gravely 08639600

HOUSING

$

$

Not available

2

Gravely 08639700

BOLT, STUD D835 M10FOX35

$

$

Not available

3

Gravely 08608500

HEXAGON BOLT, D931 M8X70

$

$

Not available

4

Gravely 08639900

SAFETY, ROD

$

$

Not available

5

Gravely 08640000

SCREW, D912 M 4X 8

$

$

Not available

6

Gravely 08640100

BUSH

$

$

Not available

7

Gravely 08640200

SCREW, D912 M 6X 15

$

$

Not available

8

Gravely 08640300

WASHER, FORM M 6.1/14.2X1.4

$

$

Not available

9

Gravely 08620800

NUT, HEX, D934 M6

$

$

Not available

10

Gravely 08640500

RING, PRESSURE

$

$

Not available

11

Gravely 08640600

PIN, STRAIGHT, D6325 6M6X18

$

$

Not available

12

Gravely 08640700

BOLT, M8 10/20

$

$

Not available

13

Gravely 08640800

WASHER, D125 10.5X21X2/3

$

$

Not available

14

Gravely 08633000

SAFETY PLATE

$

$

Not available

15

Gravely 08641000

GEAR, CLUTCH

$

$

Not available

16

Gravely 08641100

CABLE "SHIFT"

$

$

Not available

17

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

18

Gravely 08641300

BEARING

$

$

Not available

19

Gravely 00681300

BOLT, D7991 M 8X 16

$

$

Not available

20

Gravely 08641500

GUIDE, CABLE

$

$

Not available

21

Gravely 08641600

O-RING, 12.42X 1.78

$

$

Not available

22

Gravely 08641700

ROD, CONTROL

$

$

Not available

23

Gravely 08607800

WASHER

$

$

Not available

24

Gravely 08641900

FORK, SHIFT

$

$

Not available

25

Gravely 08642000

NUT, LOCK, D980V M12

$

$

Not available

26

Gravely 08642100

GEAR, CLUTCH, Z = 17 / 22

$

$

Not available

27

Gravely 08642200

RING, DISTANCE

$

$

Not available

28

Gravely 08642300

PIN, LOCK

$

$

Not available

29

Gravely 08642400

SPRING, PRESSURE

$

$

Not available

30

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

31

Gravely 08642600

SCREW

$

$

Not available

32

Gravely 08681400

COVER RIGHT

$

$

Not available

33

Gravely 08681500

COVER LEFT

$

$

Not available

34

Gravely 08669800

HEXAGON BOLT, D933 M6X20
(Superseded to 00861400)

$

$

Not available

35

Gravely 08643000

CAP

$

$

Not available

36

Gravely 08643100

ASSEMBLY, BASE

$

$

Not available

37

Gravely 08607600

WASHER

$

$

Not available

38

Gravely 08683900

BOLT, HEX, D933 M10X 25

$

$

Not available

39

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available
