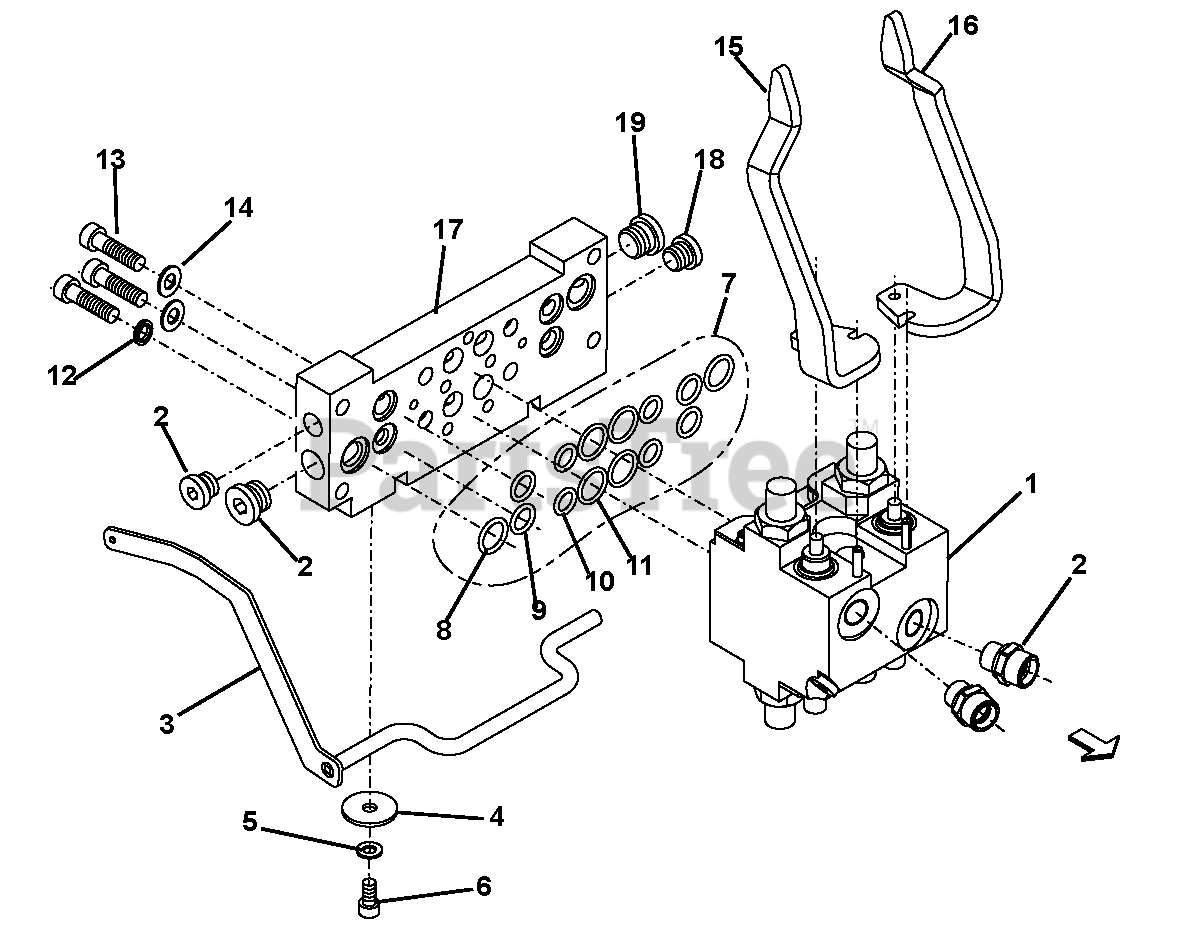

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Housing (2) Parts Diagram

  • Title

1

Gravely 08643500

Assembly, Valve

$

$

Not available

2

Gravely 00681600

Connection

$

$

Not available

3

Gravely 08643700

Lever

$

$

Not available

4

Gravely 08643800

Washer, BN 732 9 x 35 x 2.5

$

$

Not available

5

Gravely 08623200

Clutch Bellhousing
(Superseded to 08617900)

$857.99

$

Usually ships in 4-12 days

0

6

Gravely 08644000

Screw, D912 M8 x 16

$

$

Not available

7

Gravely 08644100

Kit, Gasket

$

$

Not available

8

Gravely 08644200

O-Ring, 19 x 3.00

$

$

Not available

9

Gravely 08644300

O-Ring, 15 x 3.00

$

$

Not available

10

Gravely 08644400

O-Ring, 13 x 3.00

$

$

Not available

11

Gravely 08644500

O-Ring, D3770 20.24 x 2.62

$

$

Not available

12

Gravely 08644600

Seals, Bonded 10.35 x 16 x 2

$

$

Not available

13

Gravely 08644700

Screw, D912 M10 x 45

$

$

Not available

14

Gravely 08642500

Washer, Form Steel 10.2/20.25 x 1.6

$

$

Not available

15

Gravely 08644900

Lever, Control

$

$

Not available

16

Gravely 08645000

Lever, Control

$

$

Not available

17

Gravely 00681700

Connection Plate

$

$

Not available

18

Gravely 00681800

Screw, Lock M16 x 1,5

$

$

Not available

19

Gravely 00681900

Screw, Lock, M20 x 1,5

$

$

Not available
