985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

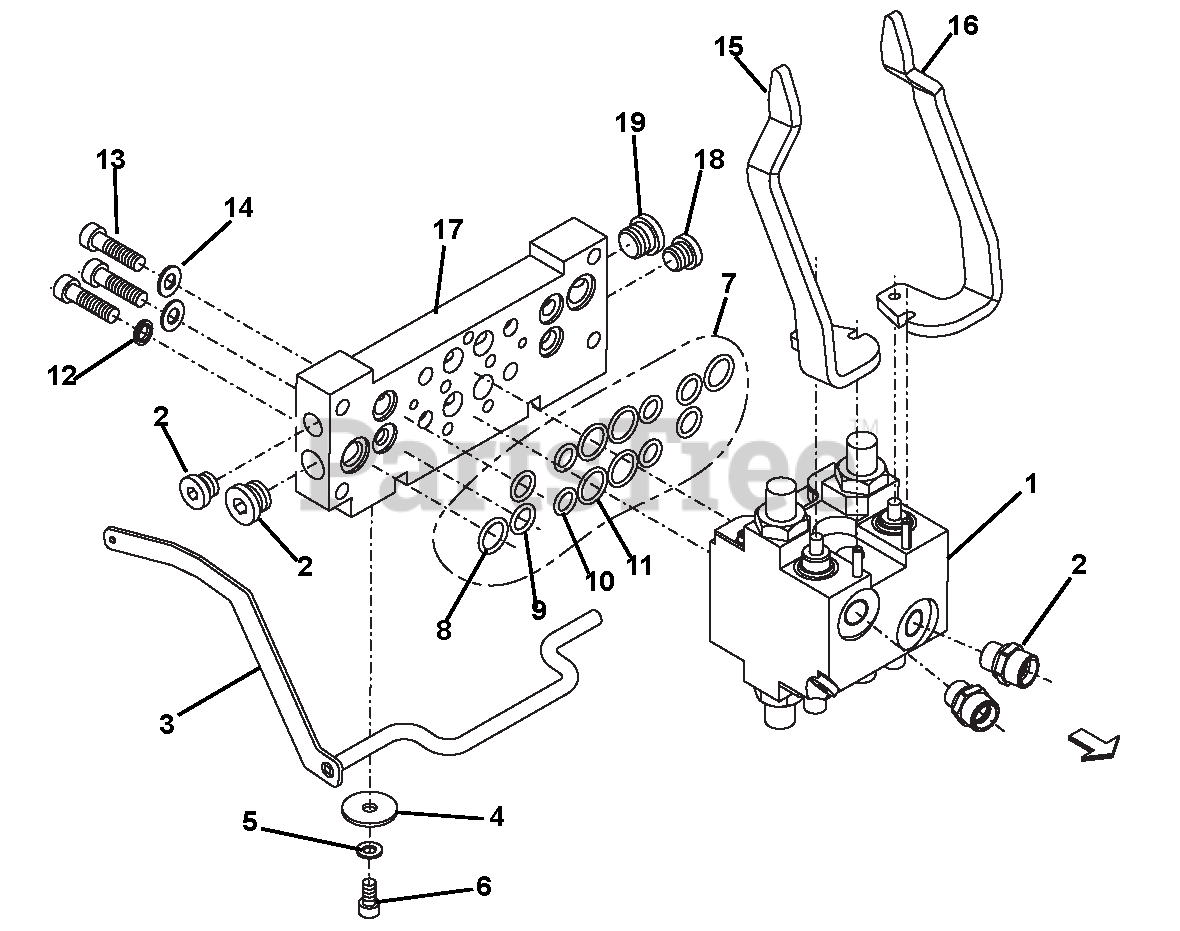

Housing (2) Parts Diagram

  • Title

1

Gravely 08643500

ASSY, VALVA, POS. 2 - 7

$

$

Not available

2

Gravely 00681600

CONNECTION

$

$

Not available

3

Gravely 08643700

LEVER

$

$

Not available

4

Gravely 08643800

WASHER, BN 732 9X35X2.5

$

$

Not available

5

Gravely 08623200

BELLHOUSING, CLUTCH
(Superseded to 08617900)

$857.99

$

Usually ships in 4-12 days

0

6

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

7

Gravely 08644100

KIT, GASKET, POS. 8 - 12

$

$

Not available

8

Gravely 08644200

O-RING, 19X3.00

$

$

Not available

9

Gravely 08644300

O-RING, 15X3.00

$

$

Not available

10

Gravely 08644400

O-RING, 13X3.00

$

$

Not available

11

Gravely 08644500

O-RING, D3770 20.24X2.62

$

$

Not available

12

Gravely 08644600

SEALS, BONDED, 10.35X16X2

$

$

Not available

13

Gravely 08644700

SCREW, D912 M10X 45

$

$

Not available

14

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

15

Gravely 08644900

LEVER, CONTROL

$

$

Not available

16

Gravely 08645000

LEVER, CONTROL

$

$

Not available

17

Gravely 00681700

CONNECTION PLATE

$

$

Not available

18

Gravely 00681800

PLUG, DRAIN

$

$

Not available

19

Gravely 00681900

PLUG, DRAIN

$

$

Not available
