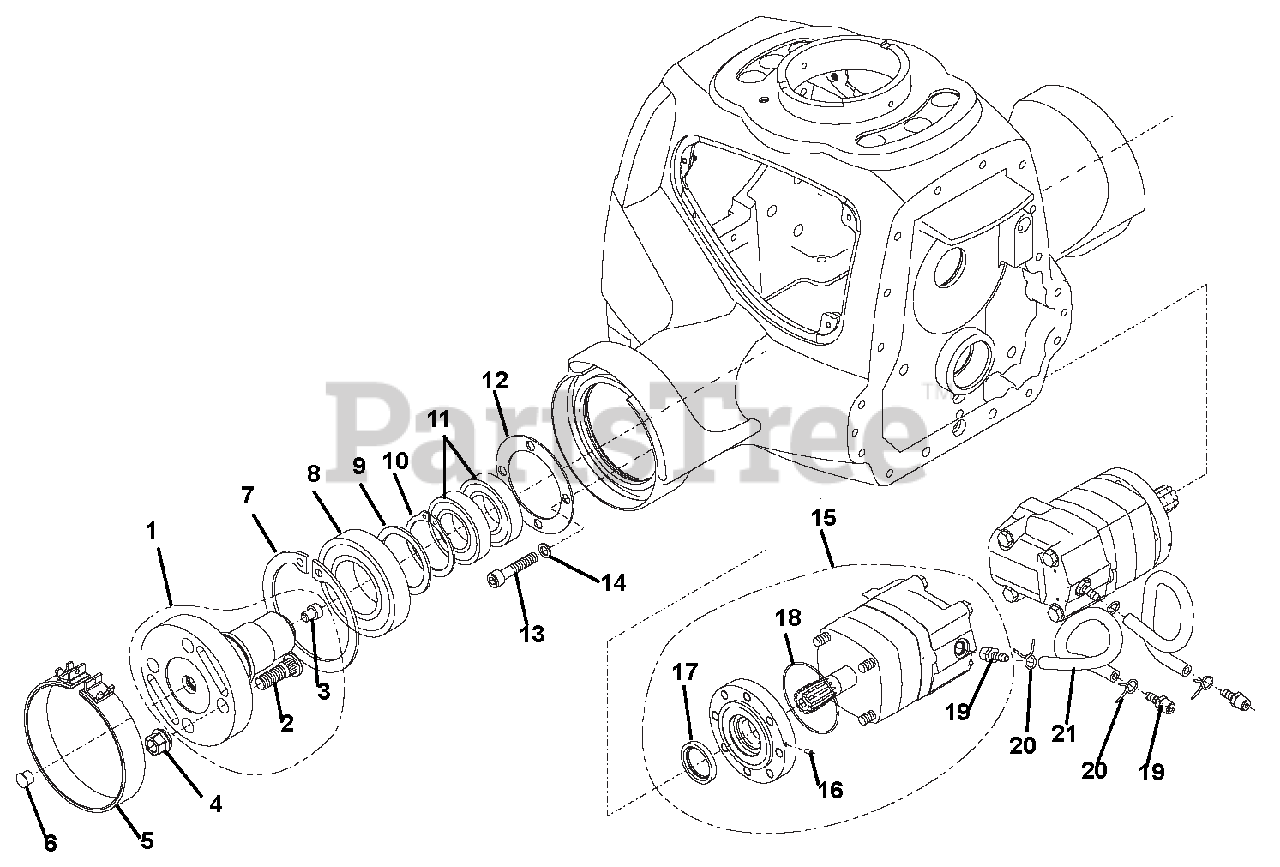

985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Housing (3) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

Housing (3) Parts Diagram

  • Title

1

Gravely 00682000

FLANGE WHEEL CPL, POS. 2,3

Note: (Includes 2 and 3)

$

$

Not available

2

Gravely 08606700

STUD, WHEEL MA14 X 1,5X50

$

$

Not available

3

Gravely 08645200

SPIGOT

$

$

Not available

4

Gravely 08609300

NUT

$

$

Not available

5

Gravely 00682100

BRAKE BAND

$

$

Not available

6

Gravely 08645300

PLUG, N559 TL-4-133

$

$

Not available

7

Gravely 08645400

CIRCLIP, D472 110 4.00

$

$

Not available

8

Gravely 08645500

BEARING, BALL, 6212 2RS

$

$

Not available

9

Gravely 08645600

WASHER, D988 60X75X3

$

$

Not available

10

Gravely 08645700

CIRCLIP, D471 60 2.00

$

$

Not available

11

Gravely 08645800

BEARING, BALL, 6009 2RS

$

$

Not available

12

Gravely 08645900

WASHER

$

$

Not available

13

Gravely 08646000

SCREW, D912 M10X 50

$

$

Not available

14

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

15

Gravely 00682200

MOTOR HYDRAULI, POS. 16-19

Note: (Includes 16 - 19)

$

$

Not available

16

Gravely 08646300

PIN, THREADED, D914 M 4X 10

$

$

Not available

17

Gravely 08646400

SEAL, OIL, 32X45X6

$

$

Not available

18

Gravely 08646500

O-RING, 75.95X1.78

$

$

Not available

19

Gravely 08646600

CONNECTION, 1/4" 8X19

$

$

Not available

20

Gravely 08646700

HOSE, CLAMP

$

$

Not available

21

Gravely 08646800

HOSE

$

$

Not available
