985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydraulic Pump (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

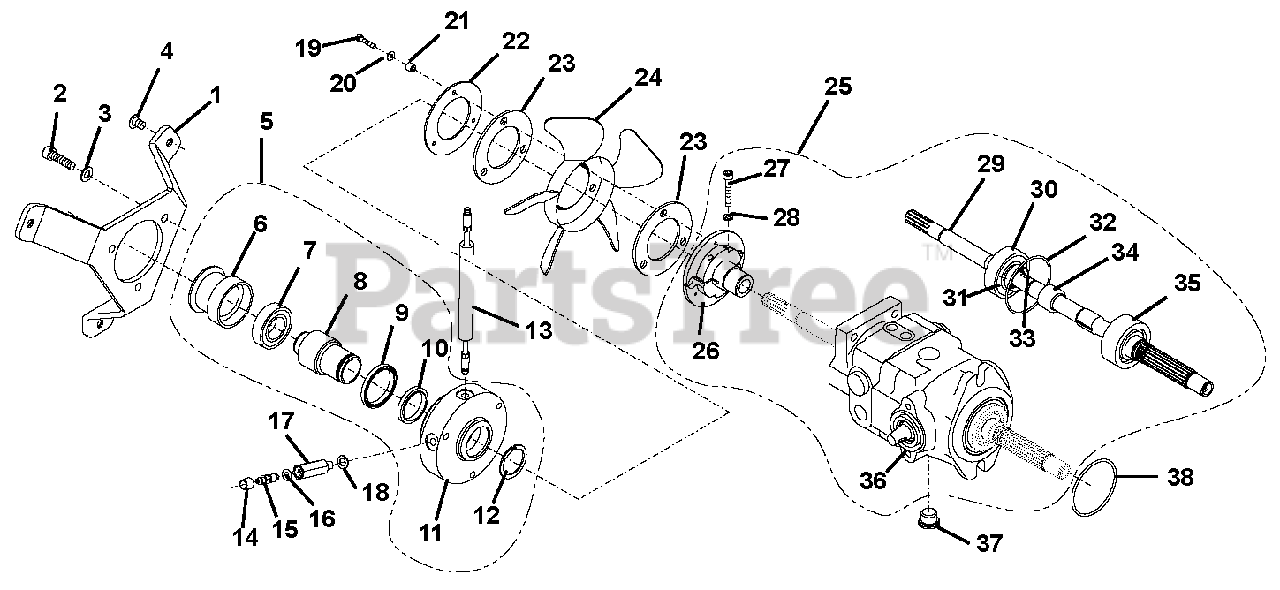

Hydraulic Pump (1) Parts Diagram

  • Title

1

Gravely 08649100

Basket

$

$

Not available

2

Gravely 08649200

Screw, M8 x 30

$

$

Not available

3

Gravely 08632300

Washer
(Superseded to 08605800)

$

$

Not available

4

Gravely 00681300

Bolt, M8 x 16

$

$

Not available

5

Gravely 08693500

Cylinder Assembly (Includes 6 - 12)

Note: (Includes 6 - 12)

$

$

Not available

6

Gravely 08649400

Pressure Ring

$

$

Not available

7

Gravely 08649500

Ball Bearing

$

$

Not available

8

Gravely 08649600

Piston

$

$

Not available

9

Gravely 08649700

Gasket, Piston

$

$

Not available

10

Gravely 08649800

Gasket, Piston

$

$

Not available

11

Gravely 08649900

Cylinder

$

$

Not available

12

Gravely 08650700

Circlip

$

$

Not available

13

Gravely 08651800

Clutch, CPL Pipe

$

$

Not available

14

Gravely 08653300

Cap

$

$

Not available

15

Gravely 08657400

Bolt

$

$

Not available

16

Gravely 08657500

O-Ring, 6.00 x 3.00

$

$

Not available

17

Gravely 08657600

Bolt

$

$

Not available

18

Gravely 08660000

Ring, Joint D7603A 8 x 14 CU

$

$

Not available

19

Gravely 08660100

Screw, M4 x 20

$

$

Not available

20

Gravely 08660500

Washer, FORM Metric 4.1/10.2 x 1.0

$

$

Not available

21

Gravely 08660600

Bushing

$

$

Not available

22

Gravely 08660700

Washer

$

$

Not available

23

Gravely 08660800

Damper

$

$

Not available

24

Gravely 08660900

Fan

$

$

Not available

25

Gravely 08661000

Hydraulic Pump

$

$

Not available

26

Gravely 08661100

Flange

$

$

Not available

27

Gravely 08624900

Bolt, Hex M6 x 8

$

$

Not available

28

Gravely 08661300

Washer, Form Z 6.1/9.9 x 1.4

$

$

Not available

29

Gravely 08661400

Drive Shaft

$

$

Not available

30

Gravely 08661500

Ball Bearing

$

$

Not available

31

Gravely 08661600

Oil Seal

$

$

Not available

32

Gravely 08661700

O-Ring 62.00 x 2.00

$

$

Not available

33

Gravely 08661800

Key

$

$

Not available

34

Gravely 08661900

Ball Bearing

$

$

Not available

35

Gravely 08647000

Ball Bearing

$

$

Not available

36

Gravely 08662100

Oil Seal

$

$

Not available

37

Gravely 08662200

Plug, Drain

$

$

Not available

38

Gravely 08662300

O-Ring, 60.00 x 2.50

$

$

Not available
