985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydraulic Pump (1) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

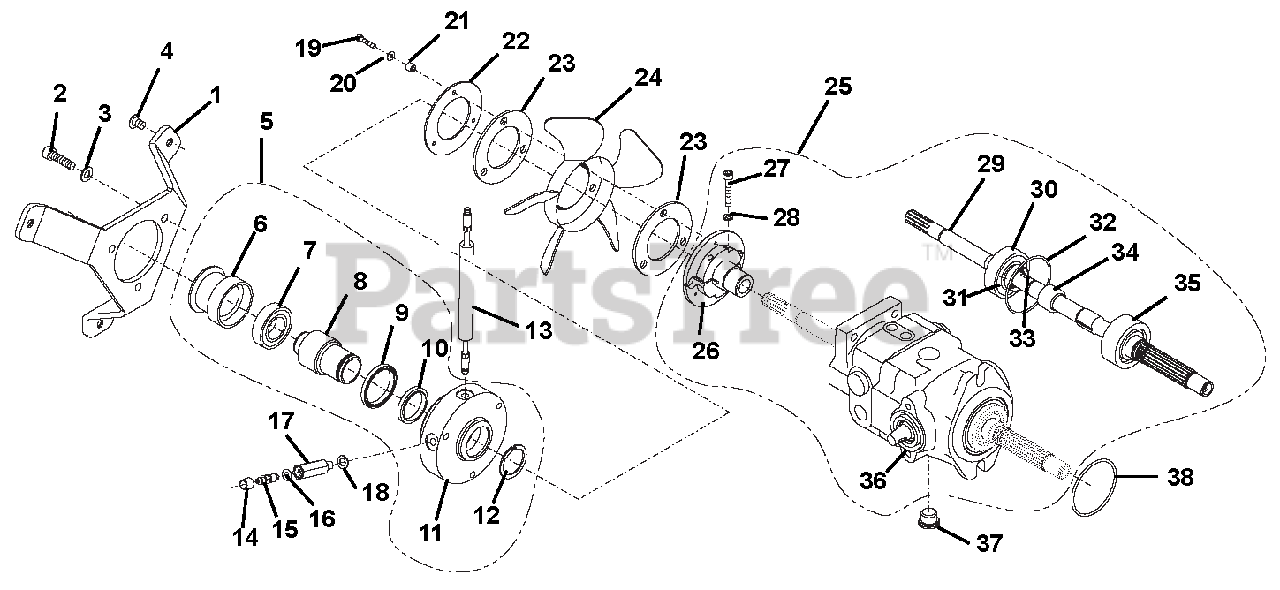

Hydraulic Pump (1) Parts Diagram

  • Title

1

Gravely 08649100

BASKET

$

$

Not available

2

Gravely 08649200

SCREW, D912 M 8X 30

$

$

Not available

3

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

4

Gravely 00681300

BOLT, D7991 M 8X 16

$

$

Not available

5

Gravely 08693500

CYLINDER, CLUTCH

Note: (Includes 6 - 12)

$

$

Not available

6

Gravely 08649400

RING, PRESSURE

$

$

Not available

7

Gravely 08649500

BEARING, BALL, 6005 2RS

$

$

Not available

8

Gravely 08649600

PISTON

$

$

Not available

9

Gravely 08649700

PISTON, GASKET

$

$

Not available

10

Gravely 08649800

PISTON, GASKET

$

$

Not available

11

Gravely 08649900

CYLINDER

$

$

Not available

12

Gravely 08650700

CIRCLIP

$

$

Not available

13

Gravely 08651800

CLUTCH, CPL, PIPE

$

$

Not available

14

Gravely 08653300

CAP

$

$

Not available

15

Gravely 08657400

BOLT

$

$

Not available

16

Gravely 08657500

O-RING, D3770 6.00X3.00

$

$

Not available

17

Gravely 08657600

BOLT

$

$

Not available

18

Gravely 08660000

RING, JOINT, D7603A 8X14 CU

$

$

Not available

19

Gravely 08660100

SCREW, D912 M 4X 20

$

$

Not available

20

Gravely 08660500

WASHER, FORM M 4.1/10.2X1.0

$

$

Not available

21

Gravely 08660600

BUSH

$

$

Not available

22

Gravely 08660700

WASHER

$

$

Not available

23

Gravely 08660800

DAMPER

$

$

Not available

24

Gravely 08660900

FAN

$

$

Not available

25

Gravely 08661000

CPL PUMP, HYDRAULIC, POS.25-35

$

$

Not available

26

Gravely 08661100

FLANGE

$

$

Not available

27

Gravely 08624900

SCREW,D912 M6X35

$

$

Not available

28

Gravely 08661300

WASHER, FORM Z 6.1/9.9X1.4

$

$

Not available

29

Gravely 08661400

SHAFT, DRIVE

$

$

Not available

30

Gravely 08661500

BEARING, BALL, 62052RS

$

$

Not available

31

Gravely 08661600

SEAL, OIL

$

$

Not available

32

Gravely 08661700

O-RING, D3770 62.00X2.00

$

$

Not available

33

Gravely 08661800

KEY, 3.17/3.6/10

$

$

Not available

34

Gravely 08661900

BEARING, BALL, NK 17/16

$

$

Not available

35

Gravely 08647000

BEARING, BALL, NJ 2304E

$

$

Not available

36

Gravely 08662100

SEAL, OIL

$

$

Not available

37

Gravely 08662200

DRAIN, PLUG

$

$

Not available

38

Gravely 08662300

O-RING, D3770 60.00 X 2.50

$

$

Not available
