985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydraulic Pump (2) Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

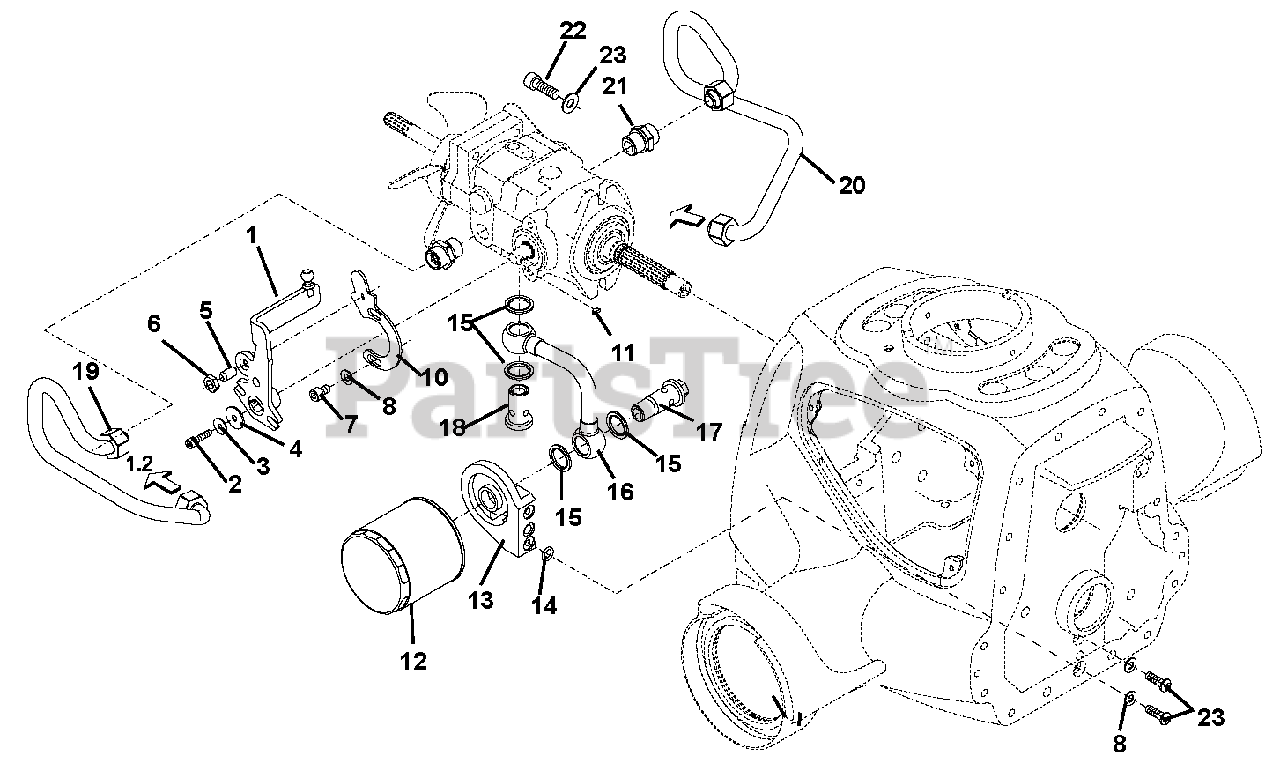

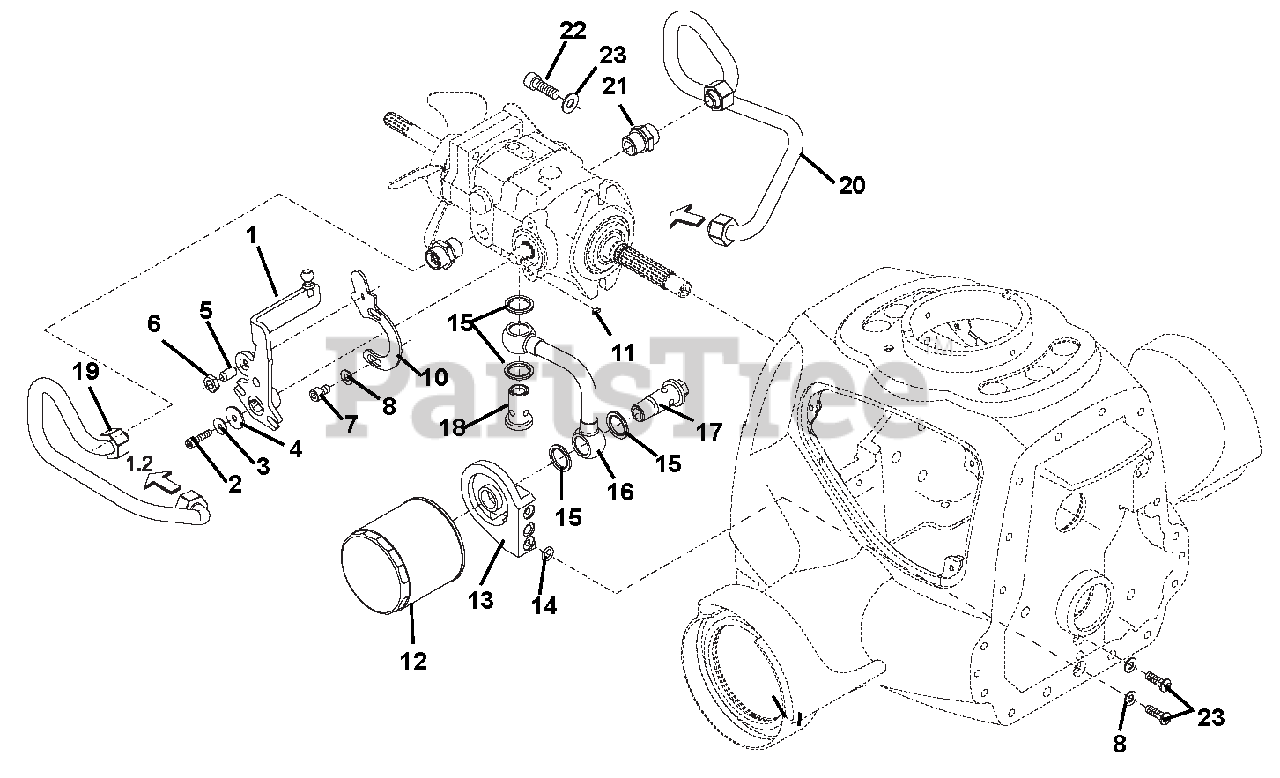

Hydraulic Pump (2) Parts Diagram

  • Title

1

Gravely 08662400

Rod, Shift

$

$

Not available

2

Gravely 08662500

Screw, M6 x 25

$

$

Not available

3

Gravely 08631900

Washer, Form B 6.1/18.2 x 1.4

$

$

Not available

4

Gravely 08620300

Washer, 7 x 25 x 1.8

$

$

Not available

5

Gravely 08662800

Piece, Pressure with Ball M10 x 19

$

$

Not available

6

Gravely 08663000

Nut, Hex M10

$

$

Not available

7

Gravely 08663100

Screw, M8 x 12

$

$

Not available

8

Gravely 08632300

Washer, Form S 8.2/16.2 x 1.4
(Superseded to 08605800)

$

$

Not available

9

Gravely 08663200

Centralizing

$

$

Not available

10

Gravely 08663300

Key

$

$

Not available

11

Gravely 08663400

Filter, Suction

$

$

Not available

12

Gravely 08663500

Flange

$

$

Not available

13

Gravely 08663600

O-Ring, 10.78 x 2.62

$

$

Not available

14

Gravely 08663700

Seals, Bonded 20.7 x 30 x 2

$

$

Not available

15

Gravely 08663800

Manifold, Inlet

$

$

Not available

16

Gravely 08663900

Bolt

$

$

Not available

17

Gravely 08664000

Bolt

$

$

Not available

18

Gravely 08664100

Pipe, Hydraulic Left

$

$

Not available

19

Gravely 08664200

Pipe, Hydraulic Right

$

$

Not available

20

Gravely 08643600

Elbow

$

$

Not available

21

Gravely 08649000

Screw, M10 x 30

$

$

Not available

22

Gravely 08607600

Washer, Form M 10.2/22.25 x 1.6

$

$

Not available

23

Gravely 08664400

Screw, M8 x 25

$

$

Not available
