985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Lever Controls Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

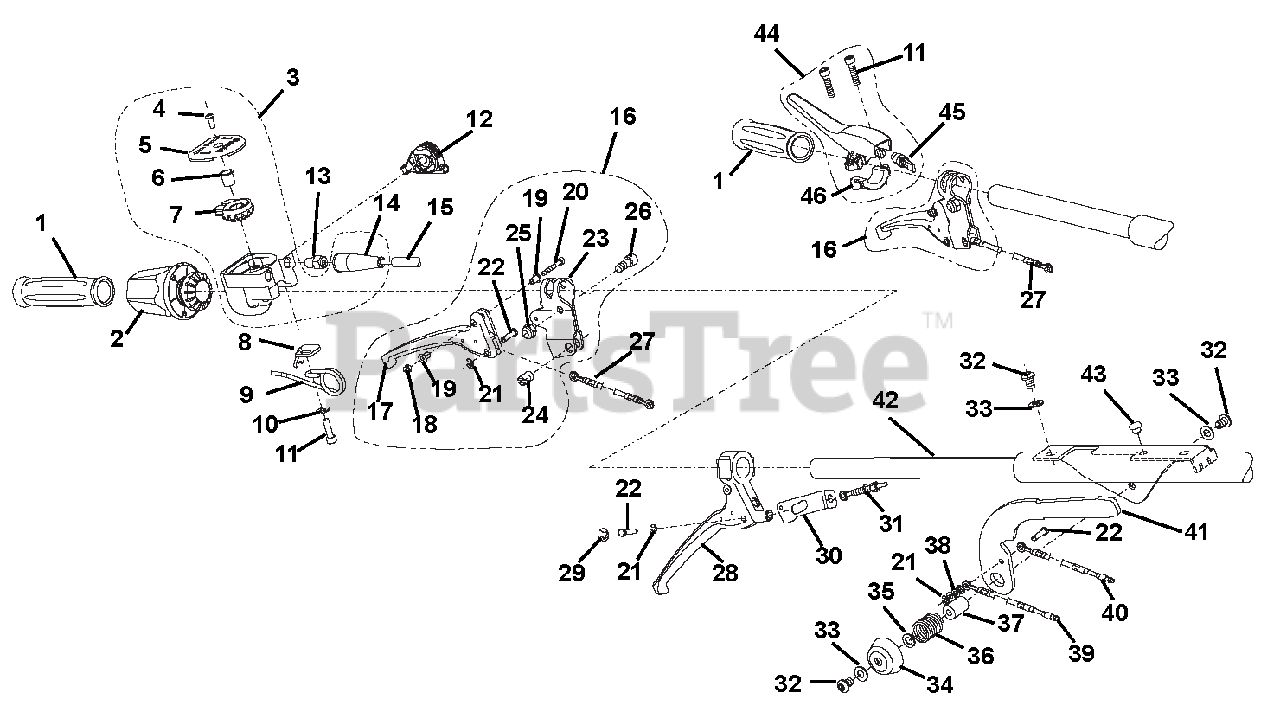

Lever Controls Parts Diagram

  • Title

1

Gravely 08627000

RUBBER, HANDLE

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 08694900

BUSH, GRIP

$210.99

$

Usually ships in 4-12 days

0

3

Gravely 08680200

MF CONTROL UNIT CPL, POS. 4-8

Note: (Includes 4 - 7 and 14)

$259.99

$

Usually ships in 4-12 days

0

4

Gravely 08626600

SCREW, ISO7380 M5X12/ 10.9

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 08627400

COVER

$72.99

$

Usually ships in 4-12 days

0

6

Gravely 08626900

BUSH
(Superseded to 00854200)

$46.99

$

Usually ships in 4-12 days

0

7

Gravely 08626800

BEVEL WHEEL W. CAM

$50.99

$

Usually ships in 4-12 days

0

8

Gravely 08629400

COVER, STOP
(Superseded to 00854400)

$

$

Not available

9

Gravely 08694800

SPRING, RETURN

$

$

Not available

10

Gravely 08640300

WASHER, FORM M 6.1/14.2X1.4

$

$

Not available

11

Gravely 08618100

SCREW

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 00684900

THROTTLE LEVER
(Superseded to 08694700)

$

$

Not available

13

Gravely 08627700

NIPPLE, SCREWED

$39.99

$

Usually ships in 4-12 days

0

14

Gravely 08627800

CAP

$46.99

$

Usually ships in 4-12 days

0

15

Gravely 08673300

DRIVING, CABLE

$

$

Not available

16

Gravely 08681400

COVER RIGHT

Note: (Includes 17 - 26)

$

$

Not available

17

Gravely 08681500

COVER LEFT

$

$

Not available

18

Gravely 08681600

NUT, LOCK, D985 M 4

$

$

Not available

19

Gravely 08681700

BUSH

$

$

Not available

20

Gravely 08681800

SCREW, D912 M 4X 30

$

$

Not available

21

Gravely 08694600

WASHER, LOCK

$

$

Not available

22

Gravely 08629500

BOLT
(Superseded to 08681900)

$

$

Not available

23

Gravely 08682000

GUIDE, LEVER

$

$

Not available

24

Gravely 08682100

SHAFT, STAY

$

$

Not available

25

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

26

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

27

Gravely 08671400

STEERING, CABLE

$

$

Not available

28

Gravely 08682200

CPL, LEVER

$95.99

$

Usually ships in 4-12 days

0

29

Gravely 08629600

LOCKWASHER, D6799 6 MM

$

$

Not available

30

Gravely 08629700

LOCK

$

$

Not available

31

Gravely 08674400

SWIVELLING HANDLEBAR, CABLE

$

$

Not available

32

Gravely 08669000

SCREW, ISO7380 M 8X 12

$

$

Not available

33

Gravely 08632300

WASHER, 31181 M 8
(Superseded to 08605800)

$

$

Not available

34

Gravely 08682500

SPACER

$

$

Not available

35

Gravely 08682600

WASHER, D433 8.4X15

$

$

Not available

36

Gravely 08682700

SPRING, PRESSURE

$

$

Not available

37

Gravely 08682800

BUSH WI/TREAD

$

$

Not available

38

Gravely 08614200

WASHER, D125 5.3X10X1

$4.99

$

Usually ships in 4-12 days

0

39

Gravely 08683000

CABLE, HANDBRAKE RIGHT

$

$

Not available

40

Gravely 08683100

CABLE, HANDBRAKE LEFT

$

$

Not available

41

Gravely 08683200

LEVER, BRAKE

$

$

Not available

42

Gravely 08683300

BRACKET ASSY., BRAKE

$

$

Not available

43

Gravely 08683400

STOP, PRESSURE SWITCH

$

$

Not available

44

Gravely 08697000

DEAD MANS LEVER ASSY

$

$

Not available

45

Gravely 08693900

SWITCH

$

$

Not available

46

Gravely 00685000

CLAMP

$

$

Not available
