985402 - Gravely Rapid U Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) P.T.O. Case Parts Diagram

Rapid U Walk-Behind 2-Wheel Tractor

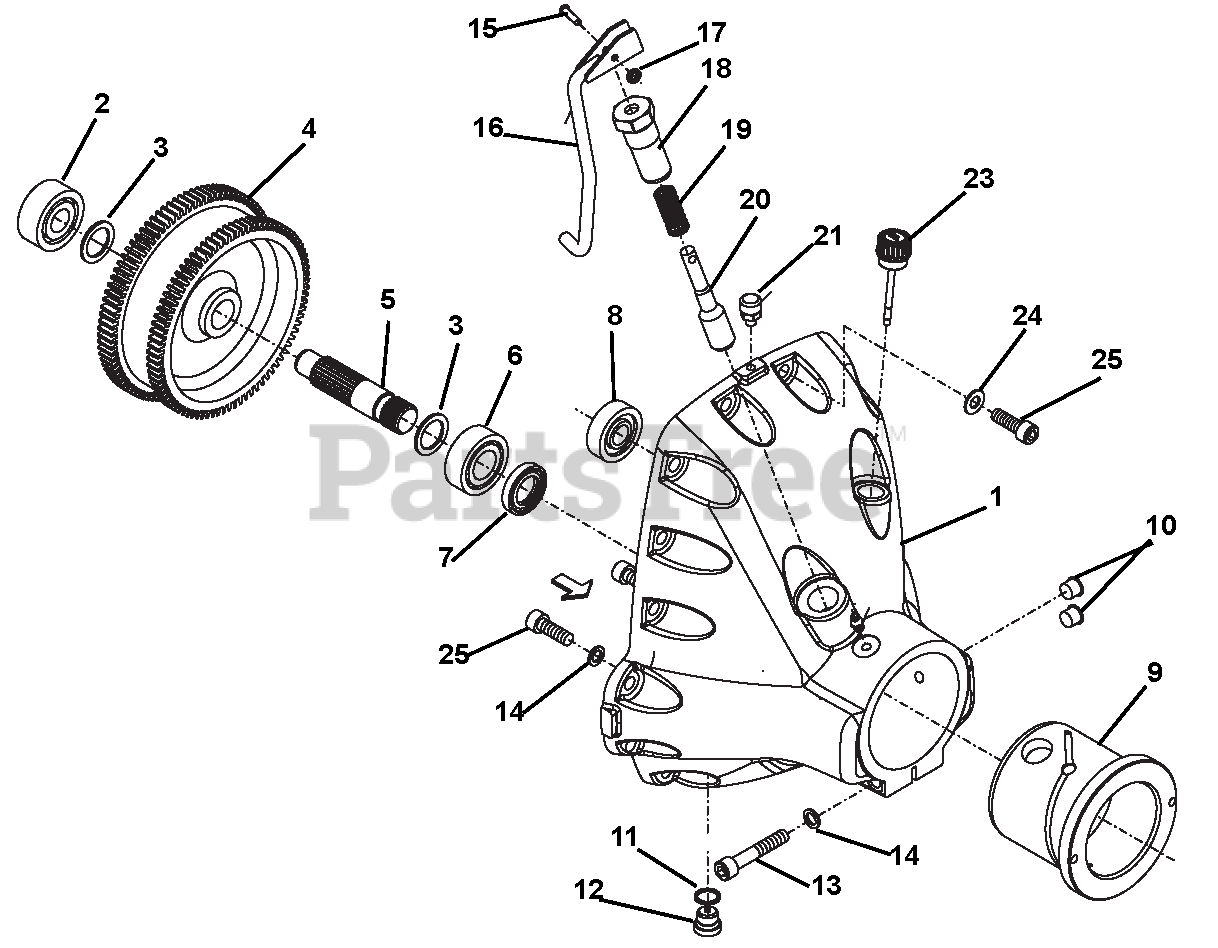

P.T.O. Case Parts Diagram

  • Title

1

Gravely 08646900

P.T.O, CASE

$

$

Not available

2

Gravely 08647000

BEARING, BALL, NJ 2304E

$

$

Not available

3

Gravely 08647100

WASHER, D988 25X 35X2

$

$

Not available

4

Gravely 08647200

PINION, DOUBLE, Z=83/88

$

$

Not available

5

Gravely 08647300

P.T.O, POWER

$

$

Not available

6

Gravely 08647400

BEARING, BALL, 4205B.TVH

$

$

Not available

7

Gravely 08647500

SEAL, OIL, D3760 25X42X7 AS

$

$

Not available

8

Gravely 08662900

BEARING, BALL, NJ 303E

$

$

Not available

9

Gravely 08647600

BUSH

$

$

Not available

10

Gravely 08643000

CAP

$

$

Not available

11

Gravely 08647800

RING, JOINT, D7603A 16X20 CU

$

$

Not available

12

Gravely 08647900

DRAIN, PLUG, D908 M 16X1.5MG

$

$

Not available

13

Gravely 08648000

SCREW, D912 M10X 60

$

$

Not available

14

Gravely 08643400

WASHER, FORM Z 10.2/16.1X1.6

$

$

Not available

15

Gravely 08648100

PIN, LOCK, D1444A 5X 25

$

$

Not available

16

Gravely 08648200

LEVER

$

$

Not available

17

Gravely 08648300

CIRCLIP, BQ-DL5, 5/18/6

$

$

Not available

18

Gravely 00682300

GUIDE TUBE

$

$

Not available

19

Gravely 08648500

SPRING, PRESSURE, 1.6/15.1X60

$

$

Not available

20

Gravely 08693400

BAR, LOCK

$

$

Not available

21

Gravely 08648700

FILTER, BREATHER

$

$

Not available

22

Gravely 08648800

LUBRICATOR, D71412A M 8X1

$

$

Not available

23

Gravely 08648900

OIL GAUGE WITH GAKET

$

$

Not available

24

Gravely 08642500

WASHER, FORM S 10.2/20.25X1.6

$

$

Not available

25

Gravely 08649000

SCREW, D912 M10X 30

$

$

Not available
