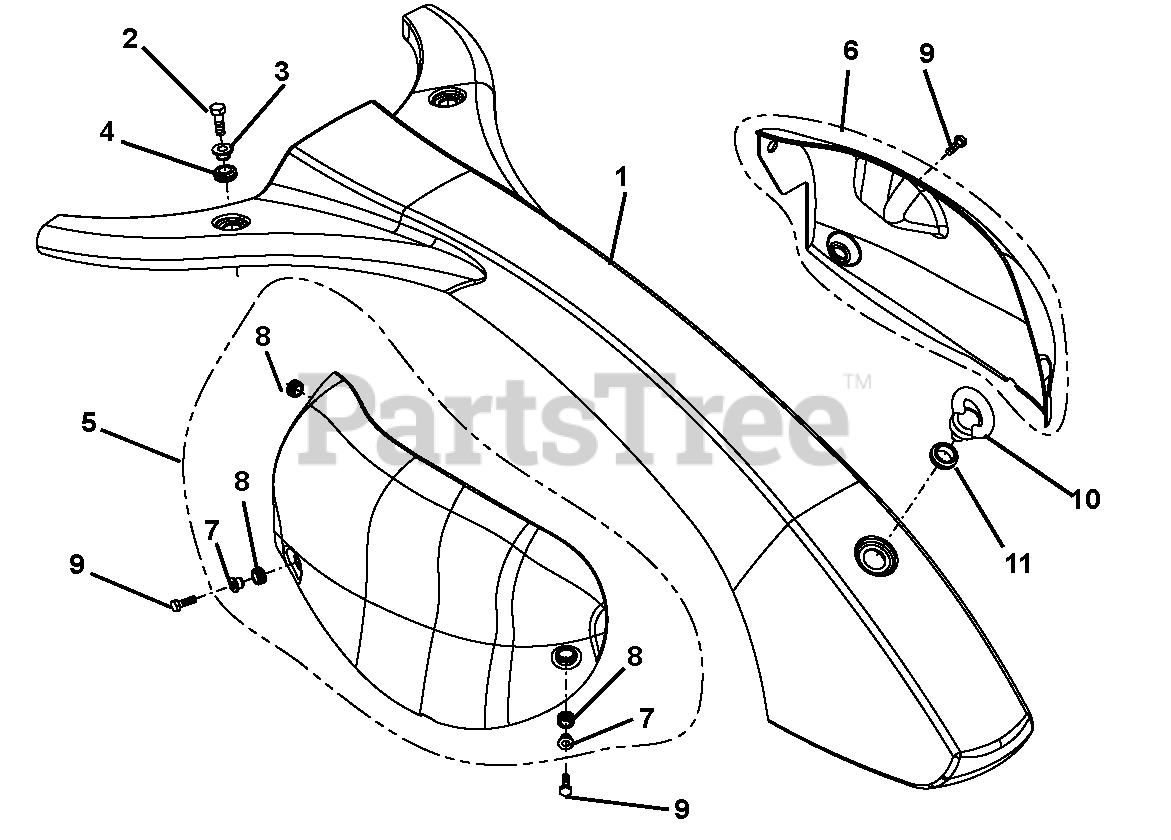

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Covers Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Covers Parts Diagram

  • Title

1

Gravely 08638600

Bonnet Handlebar

$

$

Not available

2

Gravely 08635100

Bolt, Hex D933 M8 x 25

$

$

Not available

3

Gravely 08635000

Bushing

$

$

Not available

4

Gravely 08634900

Grommet

$

$

Not available

5

Gravely 08638900

Bonnet Assembly (Includes 7 & 8)

Note: (Includes 7 & 8)

$

$

Not available

6

Gravely 08639000

Bonnet Assembly (Includes 7 & 8)

Note: (Includes 7 & 8)

$

$

Not available

7

Gravely 08639200

Grommet

$

$

Not available

8

Gravely 08667800

Bushing

$

$

Not available

9

Gravely 08669800

Bolt, Hex D933 M6 x 20
(Superseded to 00861400)

$

$

Not available

10

Gravely 08684500

Screw, Ring D580 M12 x 20

$

$

Not available

11

Gravely 08634800

Grommet, N553 18 x 27 x 22

$

$

Not available
