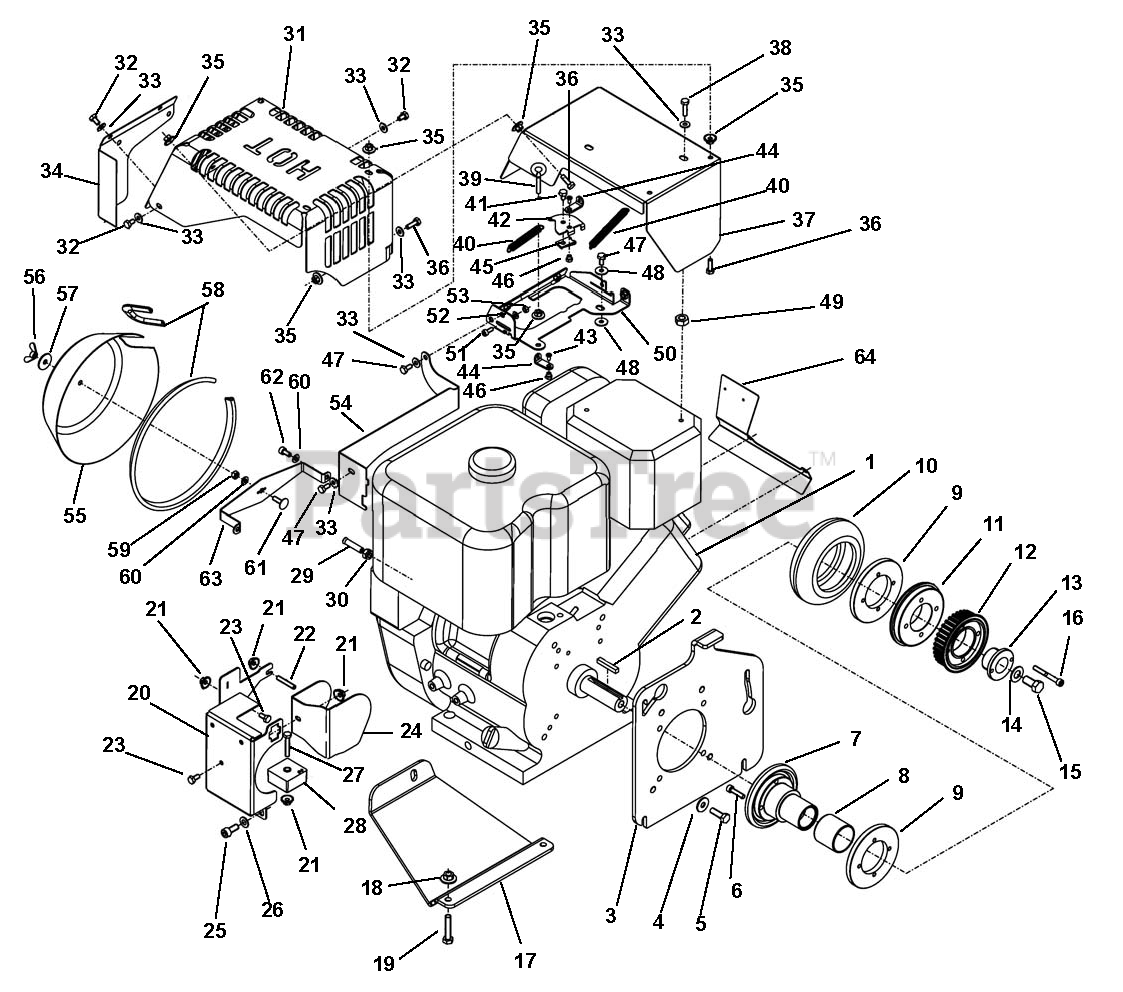

985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

Engine Parts Diagram

  • Title

1

Gravely 03711100

ENGINE, VAGUARD 13 HP

$

$

Not available

2

Gravely 03712800

3712800

$

$

Not available

3

Gravely 08626100

RETAINING PLATE

$

$

Not available

4

Gravely 08616300

WASHER, M 8

$

$

Not available

5

Gravely 08626700

HEXAGON BOLT, UNF 5/16"X1"

$

$

Not available

6

Gravely 03712600

BOLT, CYLINDRICAL DIN912 M6X25

$

$

Not available

7

Gravely 03711900

SHAFT

$

$

Not available

8

Gravely 03712400

BEARING, SLEEVE

$

$

Not available

9

Gravely 03712100

PIECE JAM

$

$

Not available

10

Gravely 03712500

TIRE

$

$

Not available

11

Gravely 03712000

PIECE JAM

$

$

Not available

12

Gravely 03712200

PULLEY

$

$

Not available

13

Gravely 03712300

CONNECTION

$

$

Not available

14

Gravely 08607800

WASHER

$

$

Not available

15

Gravely 03712900

BOLT, DIN933 UNF 7/16X7/8 HEX

$

$

Not available

16

Gravely 03712700

BOLT, CYLINDRIC DIN912 M6X50

$

$

Not available

17

Gravely 08625700

GUARD, SHEET METAL

$

$

Not available

18

Gravely 08627100

LOCK NUT, M 8

$

$

Not available

19

Gravely 03713000

BOLT, DIN933 M8X40 HEX

$

$

Not available

20

Gravely 03711400

SUPPORT

$

$

Not available

21

Gravely 03711600

NUT, FLANGED M6

$

$

Not available

22

Gravely 03711300

STUD, THREADED DIN913 M6X35

$

$

Not available

23

Gravely 08614700

BOLT, HEX D933 M 6X 12

$

$

Not available

24

Gravely 03711700

COVER

$

$

Not available

25

Gravely 08637300

SCREW, D912 M8X 18

$

$

Not available

26

Gravely 08605800

WASHER, M8

$

$

Not available

27

Gravely 08622900

HEXAGON BOLT DIN933 M6X35

$

$

Not available

28

Gravely 03711500

REGULATOR, AC

$

$

Not available

29

Gravely 03711200

BOLT, THREADED PEM M8

$

$

Not available

30

Gravely 08622000

NUT, LOCK, D985 M 8

$

$

Not available

31

Gravely 03713800

SHIELD, HEAT

$

$

Not available

32

Gravely 03714100

BOLT, DIN933 M6X10 HEX

$

$

Not available

33

Gravely 08604900

WASHER, M6

$

$

Not available

34

Gravely 03714400

SHEETMETAL FOR WINTER

$

$

Not available

35

Gravely 03711600

NUT, FLANGED M6

$

$

Not available

36

Gravely 08606000

HEXAGON BOLT, D933 M6X18

$

$

Not available

37

Gravely 03713900

SHIELD, HEAT

$

$

Not available

38

Gravely 03714000

BOLT, DIN933 M6X22 HEX

$

$

Not available

39

Gravely 03713200

SCREW, M6 RING

$

$

Not available

40

Gravely 08626200

TENSION SPRING

$

$

Not available

41

Gravely 03713500

SCREW, SHEET METAL

$

$

Not available

42

Gravely 03713100

SUPPORT

$

$

Not available

43

Gravely 03713700

SCREW, OVAL HEAD M4X8

$

$

Not available

44

Gravely 08669300

SHACKLE

$

$

Not available

45

Gravely 03713400

NUT, SPEED

$

$

Not available

46

Gravely 03713600

SUPPORT

$

$

Not available

47

Gravely 08614700

BOLT, HEX D933 M 6X 12

$

$

Not available

48

Gravely 08631900

WASHER, M6

$

$

Not available

49

Gravely 08616100

NUT, LOCK, D934 M10

$

$

Not available

50

Gravely 03713100

SUPPORT

$

$

Not available

51

Gravely 08625300

SCREW, 912 M5X12

$

$

Not available

52

Gravely 08634300

WASHER, M5

$

$

Not available

53

Gravely 08625800

NUT, HEX, D934 M 5

$

$

Not available

54

Gravely 03714500

SHEETMETAL FOR WINTER

$

$

Not available

55

Gravely 08668100

BONNET

$

$

Not available

56

Gravely 08620200

NUT, WING, M6

$

$

Not available

57

Gravely 08620300

WASHER, 7X25X1.8

$

$

Not available

58

Gravely 08668200

GUARD, EDGE, N802 6.5X 8

$

$

Not available

59

Gravely 08608900

NUT, HEX D934 M6

$

$

Not available

60

Gravely 08620600

WASHER, M6

$

$

Not available

61

Gravely 08620900

SCREW,

$

$

Not available

62

Gravely 08668400

SCREW, D912 M 6X 12

$3.99

$

Usually ships in 4-12 days

0

63

Gravely 08668500

BRACKET

$

$

Not available

64

Gravely 03746900

SHEET METAL FOR WINTER

$

$

Not available
