985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebar (1) Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

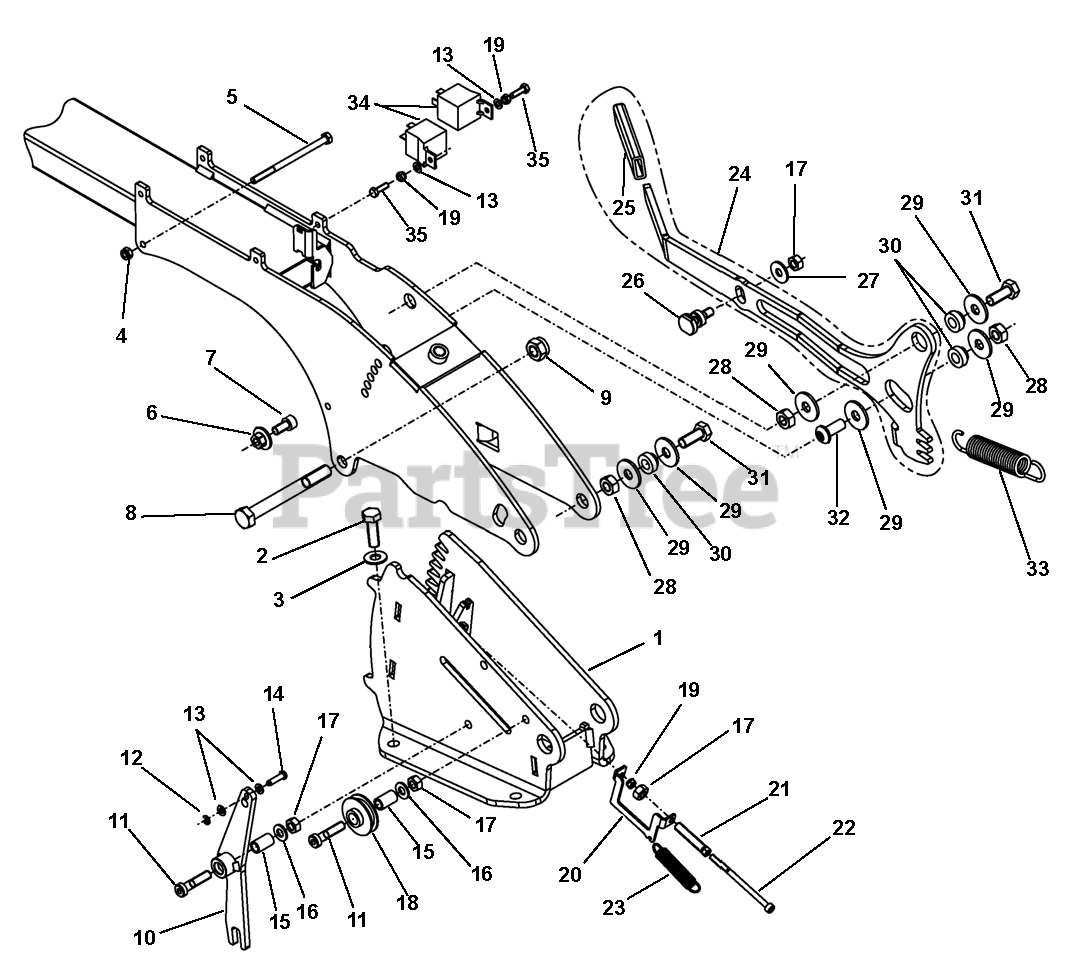

Handlebar (1) Parts Diagram

  • Title

1

Gravely 03715400

SUPPORT, HANDLEBAR

$

$

Not available

2

Gravely 03715500

BOLT, DIN933 M10X30 HEX

$

$

Not available

3

Gravely 08607600

WASHER

$

$

Not available

4

Gravely 08625000

NUT, LOCK, D985 M6

$

$

Not available

5

Gravely 08607500

HEXAGON BOLT, D931 M6X100

$

$

Not available

6

Gravely 08627100

LOCK NUT, M 8

$

$

Not available

7

Gravely 08644000

SCREW, D912 M 8X 16

$

$

Not available

8

Gravely 08633300

HEXAGON BOLT, D931 M12X110

$

$

Not available

9

Gravely 08671100

NUT, LOCK, D985 M12

$

$

Not available

10

Gravely 03715600

LEVER, ADVANCE

$

$

Not available

11

Gravely 03747000

CYLINDRIC BOLT DIN7984 M8X35

$

$

Not available

12

Gravely 08694600

WASHER, LOCK

$

$

Not available

13

Gravely 08614200

WASHER, D125 5.3X10X1

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 08681900

BOLT

$

$

Not available

15

Gravely 03715700

BUSH

$

$

Not available

16

Gravely 03715800

WASHER, DIN125 M8

$

$

Not available

17

Gravely 08605700

NUT, HEX D934 M8

$

$

Not available

18

Gravely 08637200

ROLLER

$

$

Not available

19

Gravely 08614600

NUT, LOCK

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 03714800

ANGLE

$

$

Not available

21

Gravely 03714700

SCREW, HOLLOW

$

$

Not available

22

Gravely 03714900

BOLT, CYLINDRIC DIN912 M5X80

$

$

Not available

23

Gravely 03715000

SPRING, TENSION

$

$

Not available

24

Gravely 03715900

LEVER

$

$

Not available

25

Gravely 03747100

GRIP COVER

$

$

Not available

26

Gravely 08633000

SAFETY PLATE

$

$

Not available

27

Gravely 08616300

WASHER, M 8

$

$

Not available

28

Gravely 08616100

NUT, LOCK, D934 M10

$

$

Not available

29

Gravely 08633100

WASHER, D9021 10.5X30X2.5

$

$

Not available

30

Gravely 08633200

BEARING BUSHING

$

$

Not available

31

Gravely 08623700

HEXAGON BOLT, D933 M10X25
(Superseded to 08683900)

$

$

Not available

32

Gravely 08643300

SCREW, ISO 7380 M10X25

$

$

Not available

33

Gravely 08677100

SPRING, TENSION, 3.2/19.3X122

$

$

Not available

34

Gravely 08629000

RELAY

$76.99

$

Usually ships in 4-12 days

0

35

Gravely 08632500

HEXAGON BOLT, D933 M5X16

$

$

Not available
