985403 - Gravely Rapid M Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Tires/Wheel Assembly Parts Diagram

Rapid M Walk-Behind 2-Wheel Tractor

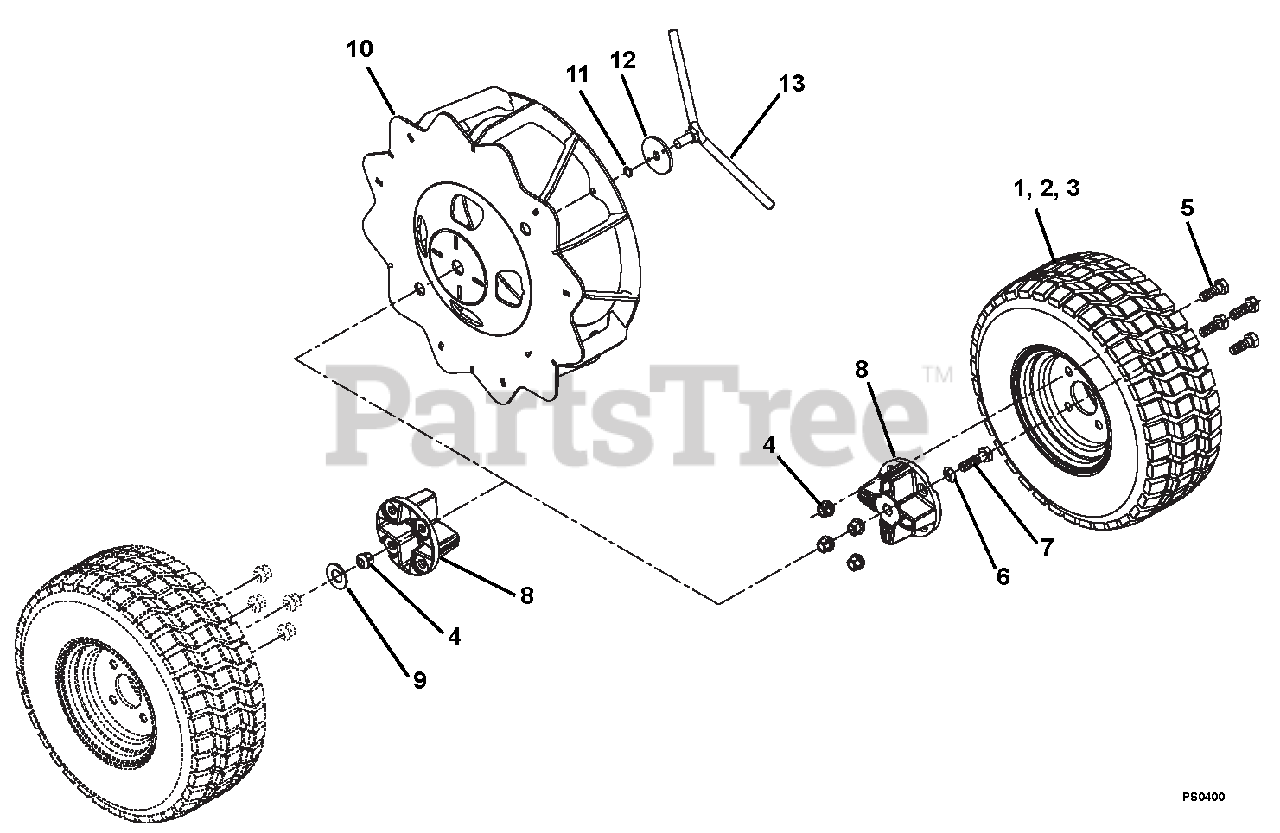

Tires/Wheel Assembly Parts Diagram

  • Title

1

Gravely 03717700

WHEEL, DISC

$

$

Not available

2

Gravely 00686300

TYRE

$

$

Not available

3

Gravely 00686400

TYRE TUBE

$

$

Not available

4

Gravely 08609300

NUT

$

$

Not available

5

Gravely 00680300

HEXAGON BOLT, D961 M14X1,5X40

$

$

Not available

6

Gravely 00680400

SPRING WASHER, D74361C M14

$

$

Not available

7

Gravely 00680500

HEXAGON BOLT, D960 M14X1,5X40

$

$

Not available

8

Gravely 00680600

DRIVING FLANGE

$

$

Not available

9

Gravely 00680700

SPRING WASHER, D2093B 45X22,4

$

$

Not available

10

Gravely 00680800

CAGE WHEEL

$294.99

$

Usually ships in 4-12 days

0

11

Gravely 00680900

CIRCLIP

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 00681000

WASHER

$

$

Not available

13

Gravely 00681100

HANDLE SCREW

$

$

Not available
