9855-0 - Generac Home & Away 1,850 Watt Portable Generator Generator & Cradle Parts Diagram

Home & Away 1,850 Watt Portable Generator

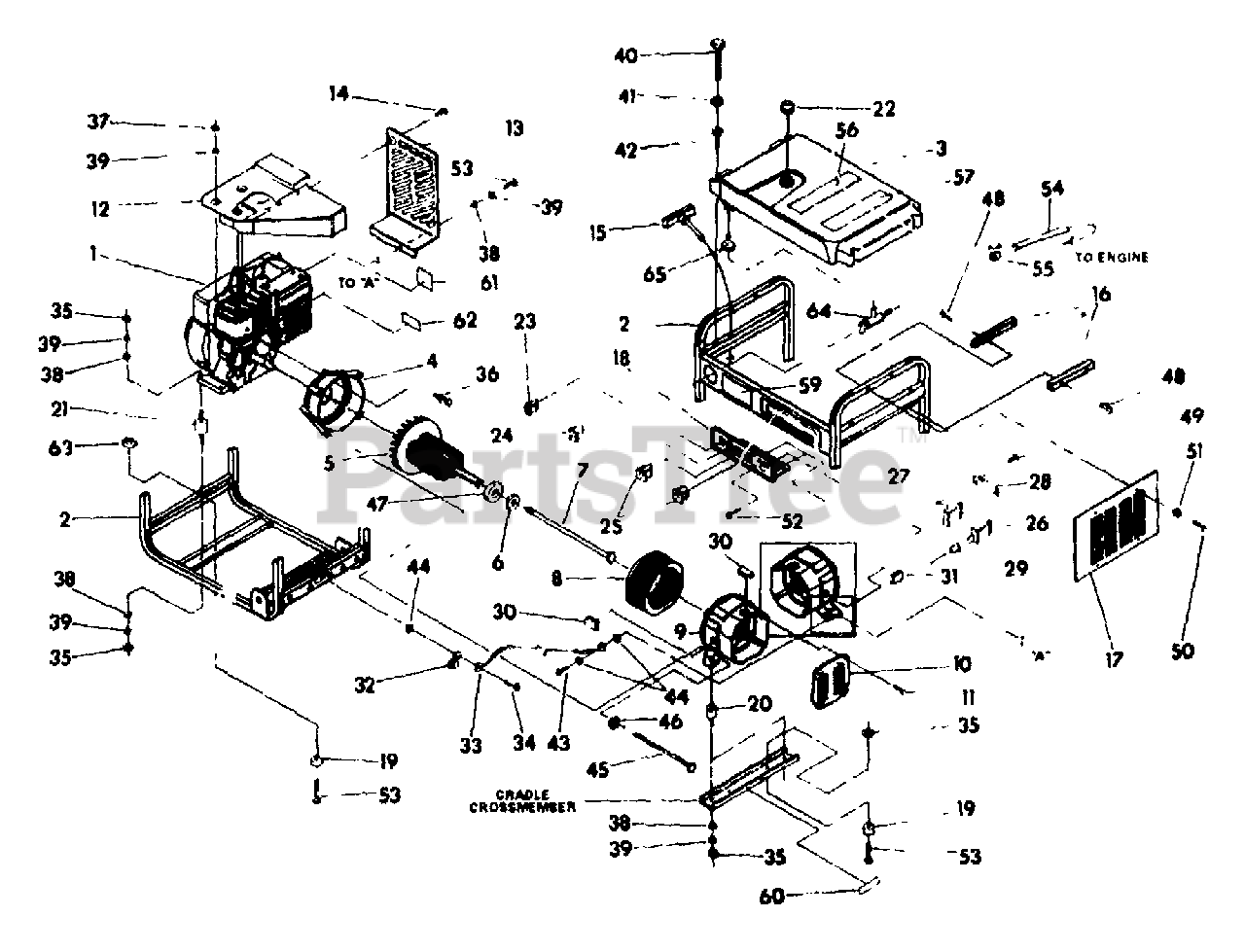

Generator & Cradle Parts Diagram

  • Title

1

Briggs & Stratton 93687

Briggs & Stratton Engine
(Superseded to 690307)

$8.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 93694

Cradle

$

$

Not available

3

93941

Fuel Tank

$

$

Not available

4

Briggs & Stratton 66365F

Engine Adaptor
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 93705G

Rotor
(Superseded to 93705GGS)

$186.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

Flat Washer

$

$

Currently unavailable

7

Briggs & Stratton 75444

Rotor Bolt
(Superseded to 75444GS)

$14.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93706G

Stator Assembly
(Superseded to 93706GGS)

$226.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 93686

Rear Bearing Carrier
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 67025

Rear Bearing Cover

$

$

Currently unavailable

11

Briggs & Stratton 74908

M5-.08 x 10mm Taptite Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 93628

Heat Shield

$

$

Not available

13

Briggs & Stratton 93638

Muffler Guard
(Superseded to 93638GS)

$19.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 56892

10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton Handle

$

$

Not available

16

Briggs & Stratton 66450

Handle Cover

$

$

Not available

17

Briggs & Stratton 93704

Enclosure Panel

$15.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93702

Plastic Control Panel

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 87841

Foot Pad
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 66443B

Vibration Mount
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 85651

Vibration Mount
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94133

Fuel Cap
(Superseded to 94133GS)

$19.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 78653

Shut-Off Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 90418

12V. DC Outlet
(Superseded to 90418GS)

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 66818

120V. AC Outlet
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207D

15 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 83514

10 amp Auto Circuit Breaker
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 93857

Retaining Bar
(Superseded to 93857GS)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84198

Plastic Cap
(Superseded to 84198GS)

$4.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84242

Plastic Cap
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 25433

Ground Lug

$

$

Not available

33

14353621

Ground Wire Assembly

$

$

Not available

34

Briggs & Stratton 86292

Self Drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 45771

8mm Hex Nut

$

$

Not available

36

Briggs & Stratton 86307

5/16 x 3/4" Capscrew
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22259

5/16" Hex Nut
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22145

Flat Washer

$

$

Not available

39

Briggs & Stratton 22129

5/16" Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 51753

M6 x 40mm Capscrew
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 78830

Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 83465

Rubber Tank Mount
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 43116

M6 x 12mm Capscrew
(Superseded to 43116GS)

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 26850

1/4 Shake Proof Washer

$

$

Not available

45

Briggs & Stratton 74095

M6 x 60mm Capscrew
(Superseded to 74095GS)

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 94383

Torx Screw

$

$

Currently unavailable

49

Briggs & Stratton 84543C

3.5 x 18mm Screw
(Superseded to 84543CGS)

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 94352

M5 x 12mm Screw

$

$

Currently unavailable

51

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94360

M5 x 12mm Screw

$

$

Not available

53

Briggs & Stratton 39253

M8 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 30340

12" Fuel Hose

$3155.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 48031C

Hose Clamp

$

$

Not available

56

Briggs & Stratton 92982

Decal -- Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 93826

Decal -- Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 73054

Decal -- Fuel Shut-off

$

$

Not available

59

Briggs & Stratton 94134

Decal -- Home & Away

$1.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 67210A

Decal -- Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 78817

Decal -- Data
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 81886

Decal -- STA-BIL
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 52858

M8 Locking Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

64

Briggs & Stratton 80270

Plastic Fuel Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

65

Briggs & Stratton 78299

Plastic Fuel Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

67

Briggs & Stratton 91825

Bridge Rectifier

$

$

Not available

68

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0
