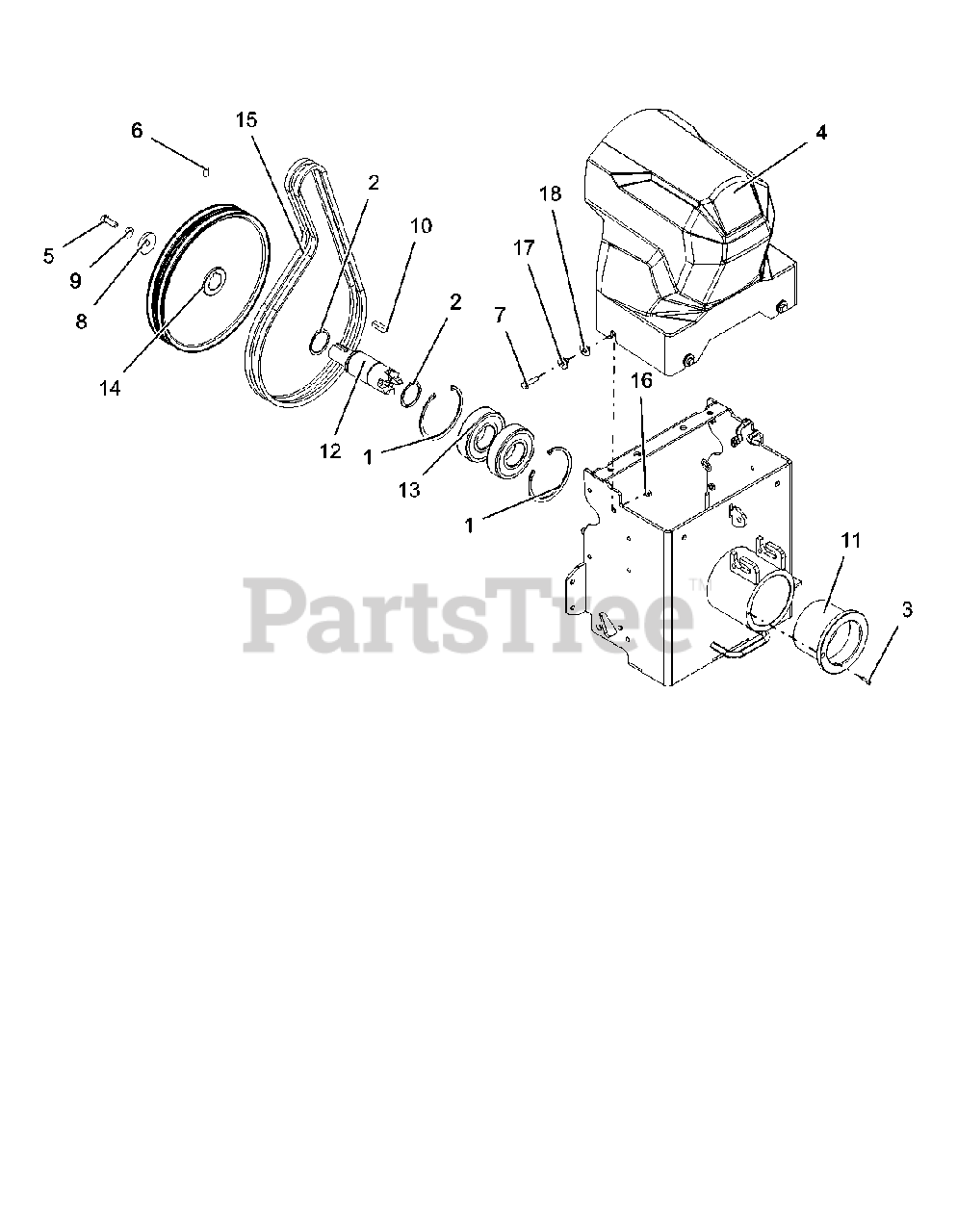

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Belts And Pulley Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Belts And Pulley Parts Diagram

  • Title

1

Gravely 05700219

RING, RETAININT - INT 4.250X.109

$17.99

$

Usually ships in 4-12 days

0

2

Gravely 05700220

RING, RETAINING-EXTERNAL 50MM X 2MM

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 05901607

SCR, SKH M5-.8 X 16 GR12.9 ROHS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 04959900

COVER, FRONT BELT

$91.99

$

Usually ships in 4-12 days

0

5

Gravely 05901625

BLT, HEX M10-1.5X30 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06000224

SCR-SET .38-24X.750 SK CUP

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 05901713

BLT, HEX M8-1.25X35 GR8.8 ZC120

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06401004

WSHR-FL-STL .406X1.750X.250 ROHS

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06401005

WSHR, 3/8" SPRING DISC

$24.99

$

Usually ships in 4-12 days

0

10

Gravely 06606800

KEY, SQ 3/8 X 1.250

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 09115500

BUSHING, OUTPUT

$41.99

$

Usually ships in 4-12 days

0

12

Gravely 09118400

SHAFT, PTO

$410.99

$

Usually ships in 4-12 days

0

13

Gravely 09121300

BRG, BALL 6310-2RS

$83.99

$

Usually ships in 4-12 days

0

14

Gravely 09121600

PULLEY, DBL PTO INPUT

$200.99

$

Usually ships in 4-12 days

0

15

Gravely 09122000

V-Belt, HA-DOUBLE CLUTCHING COVER (Set)

$67.99

$

Usually ships in 4-12 days

0

16

Gravely 06500817

NUT, LK-CTR-JAM M8-1.25 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

17

Gravely 09130900

BSHG, BELT COVER

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 09131000

WSHR, RUBBER, .093X.425X1.250 DUR 56A

$3.49

$

Usually ships in 4-12 days

0
