985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Clutch Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

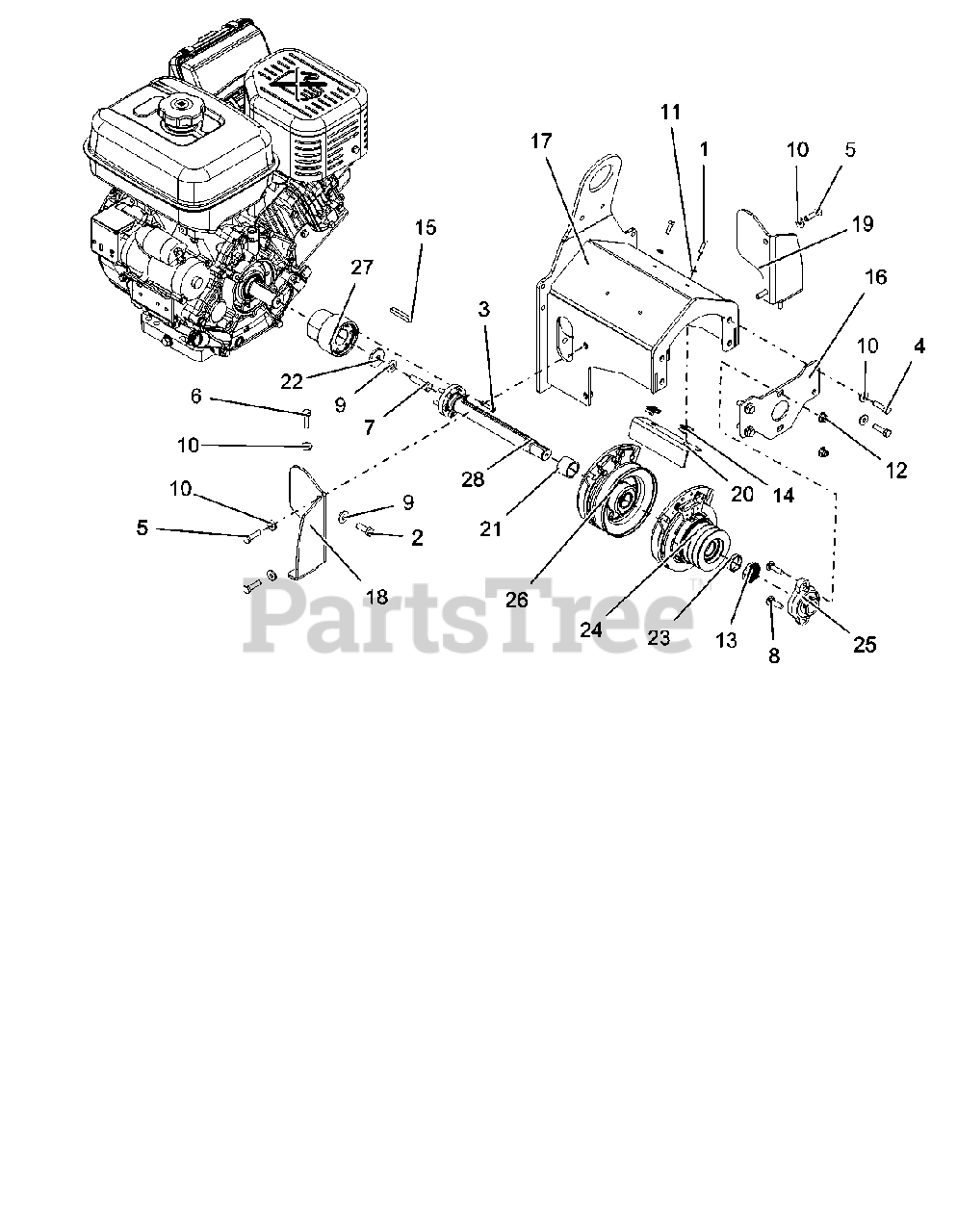

Clutch Parts Diagram

  • Title

1

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 05901617

BLT, HEX 0.375-16X1 GR5 CKF

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 05901619

SCR, SKH M6-1 X 25 GR10.9 CKF

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 05901620

BLT, HEX M8-1.25X30 GR8.8 CKF

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 05901620

BLT, HEX M8-1.25X30 GR8.8 CKF

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 05901620

BLT, HEX M8-1.25X30 GR8.8 CKF

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 05901706

BLT, HEX M10-1.25X40FT GR10.9 CKF

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 06200230

BLT-RDHDSQSHNK .31-18X1.75 YWZC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 06401005

WSHR, 3/8" SPRING DISC

$24.99

$

Usually ships in 4-12 days

0

10

Gravely 06401007

WSHR, BLVL M8X19.84X2.5 ROHS

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06401009

WSHR-LK .25X.062 REG YWZC

$0.99

$

In Stock, Qty 16

0

12

Gravely 06500725

NUT, LK-NYL-FLG M8-1.25 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06500804

NUT, BRG -LK M25X1.5 ROHS

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 07001728

NUT, RTNR M6 X 1.0

$

$

Not available

15

Gravely 09131600

KEY, 7MM X 46MM

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 09116451

PLATE, FACE CRANK SUPPORT-BLACK

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 09116651

WLDMT, CRANK SHAFT SUPPORT-BLACK

$173.99

$

Usually ships in 4-12 days

0

18

Gravely 09116751

BRKT, ENCLOSURE LH-BLACK

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 09116851

BRKT, ENCLOSURE RH-BLACK

$28.99

$

Usually ships in 4-12 days

0

20

Gravely 09116951

BRKT, CLUTCH STOP-BLACK

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09118900

SPCR, CLUTCH

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 09119012

WSHR, CLUTCH .394X1.438X.188

$13.99

$

Usually ships in 4-12 days

0

23

Gravely 09120500

SPCR, BRG NUT

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 09121200

CLUTCH, PTO DOUBLE GROOVE

$413.99

$

Usually ships in 4-12 days

0

25

Gravely 09122500

BRG, FLANGE FX205

$56.99

$

Usually ships in 4-12 days

0

26

Gravely 09122800

CLUTCH, RMS WARNER

$258.99

$

Usually ships in 4-12 days

0

27

Gravely 09126700

COUPLER, SHAFT EXTENSION

$245.99

$

Usually ships in 4-12 days

0

28

Gravely 09126800

CRANK, SHAFT EXTENSION

$175.99

$

Usually ships in 4-12 days

0
