985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Engine -Subaru EX40 Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

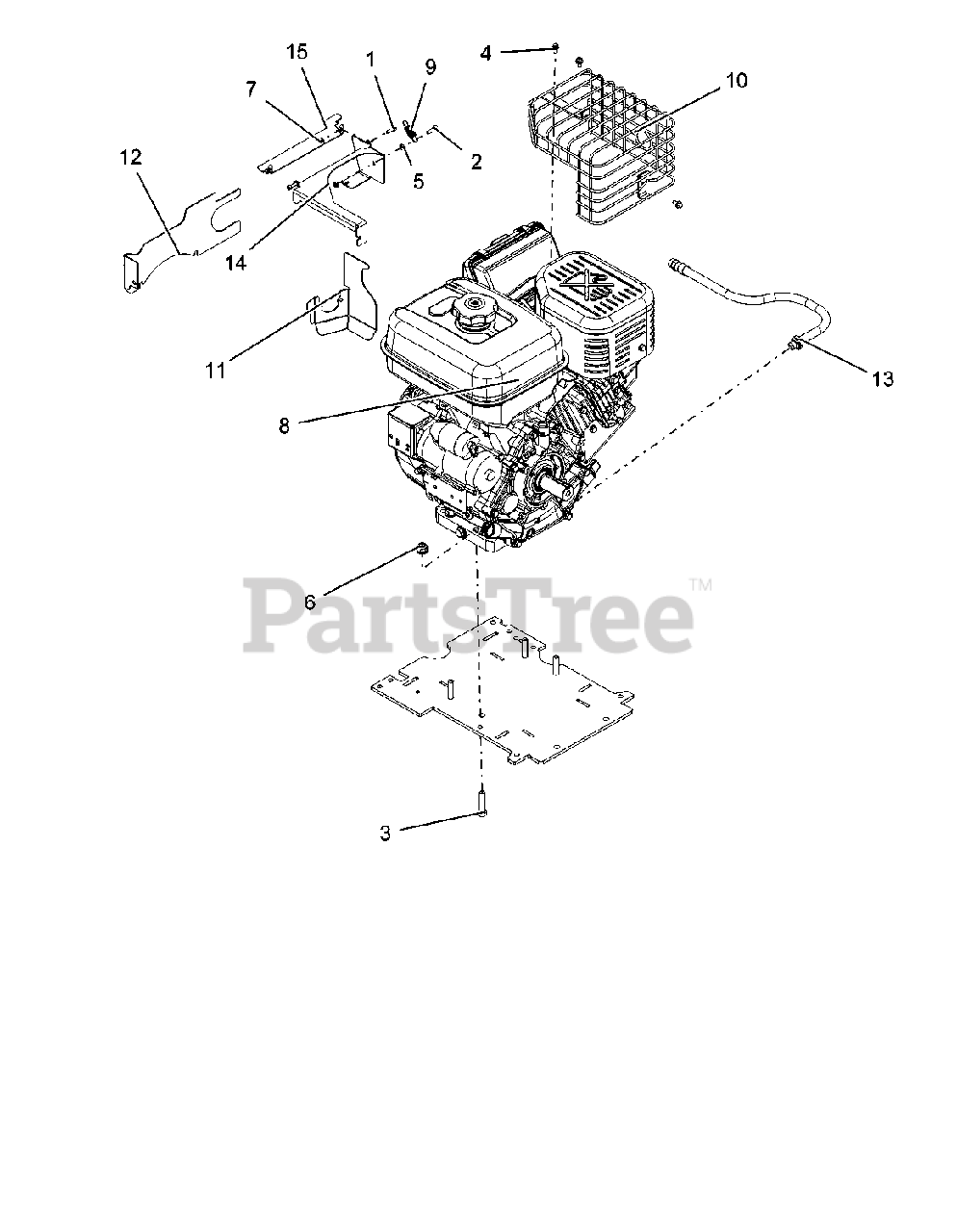

Engine -Subaru EX40 Parts Diagram

  • Title

1

Gravely 05901607

SCR, SKH M5-.8 X 16 GR12.9 ROHS

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 05901708

BLT, HEX M10-1.5X45 GR8.8 ZC120

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 05901709

BLT, HEX M6-1X12 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06500728

NUT, HEX-JAM M6-1.0 GR8.8 ZC120

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 06500731

NUT, LK-NYL-FLG M10-1.5 GR8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 06500801

NUT, LK-NYL M5-0.8 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 08200547

ENGINE, SUBARU EX40 - 12V

$

$

Not available

9

Gravely 08339300

SG-TENS .041X.500X1.750

$5.99

$

In Stock, only 2 left!

0

10

Gravely 09125800

HEAT SHIELD

$

$

Not available

11

Gravely 09127351

PLATE, WINTERIZE CARB (BLACK)

$12.99

$

Usually ships in 4-12 days

0

12

Gravely 09127451

PLATE, WINTERIZE RECOIL (BLACK)

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 09128600

ASM, HOSE OIL DRAIN W/CAP

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 09129800

PLATE, ENGINE COVER-BLACK

$

$

Not available

15

Gravely 09129900

PLATE, ENGINE FLAP-BLACK

$

$

Not available
