985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Frame Parts Diagram
Pro-QXT Walk-Behind 2-Wheel Tractor

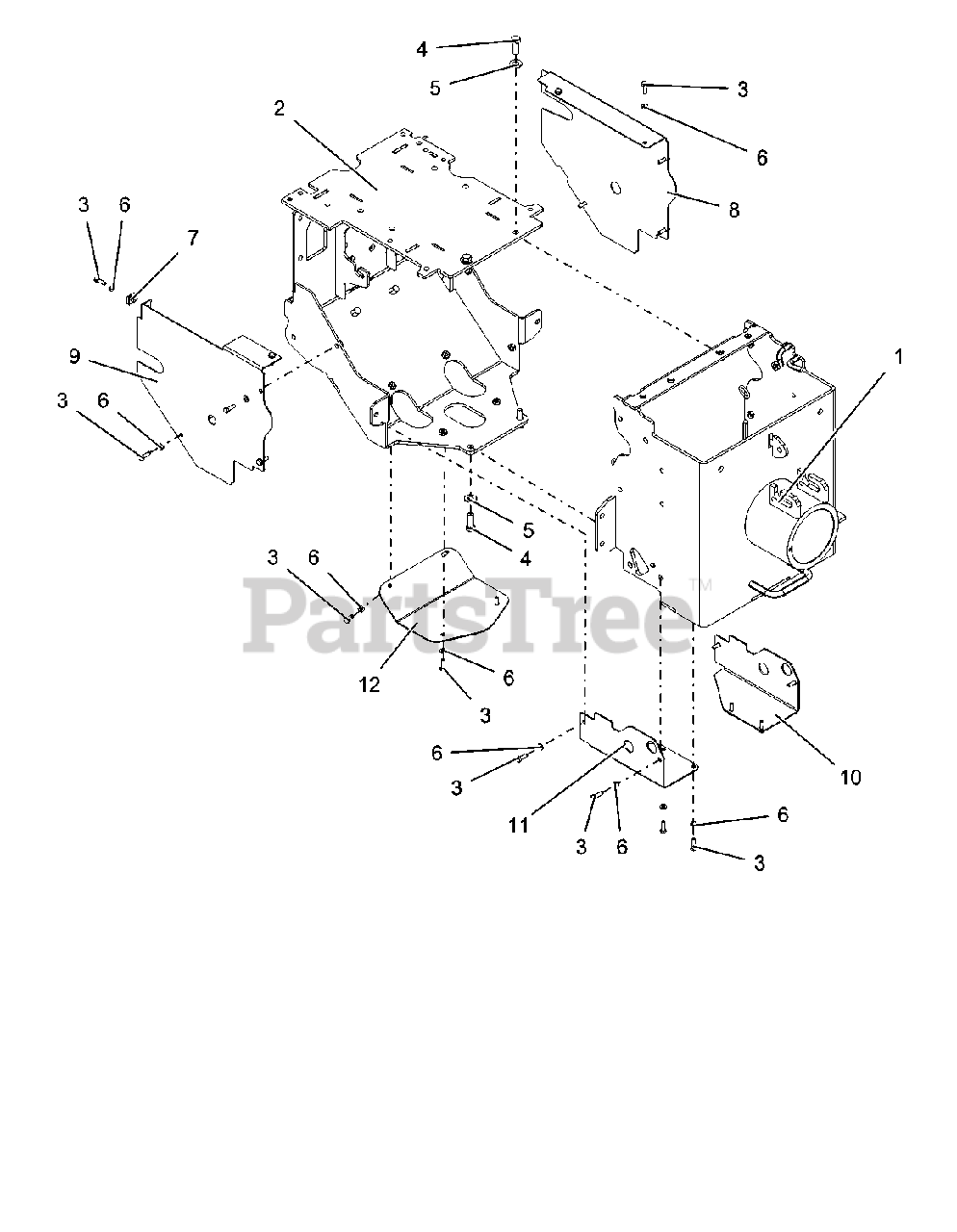

Frame Parts Diagram
Gravely 09116053
WLDMT, FRONT HOUSING
$919.99
$
Usually ships in 4-12 days
Gravely 09117753
WLDMT, FRAME BACK
$
$
Not available
Gravely 05901610
BLT, HEX M6-1.0 X 20 8.8ZC120
$2.49
$
Usually ships in 4-12 days
Gravely 05901625
BLT, HEX M10-1.5X30 8.8ZC120
$2.99
$
Usually ships in 4-12 days
Gravely 06401005
WSHR,BLVL,M10 X 25 X 3.9 ZCMCH
$25.99
$
Usually ships in 4-12 days
Gravely 06401009
WSHR, LK-SPRG .25X.062 ZC120
$0.99
$
In Stock, Qty 9
Gravely 07001728
NUT-RTNR M6X1
$
$
Not available
Gravely 09116353
COVER, LH
$
$
Not available
Gravely 09118353
COVER, RH
$35.99
$
Usually ships in 4-12 days
Gravely 09119753
COVER, LH LOWER
$25.99
$
Usually ships in 4-12 days
Gravely 09119853
COVER, RH LOWER
$23.99
$
Usually ships in 4-12 days
Gravely 09126453
COVER, OIL
$23.99
$
Usually ships in 4-12 days
