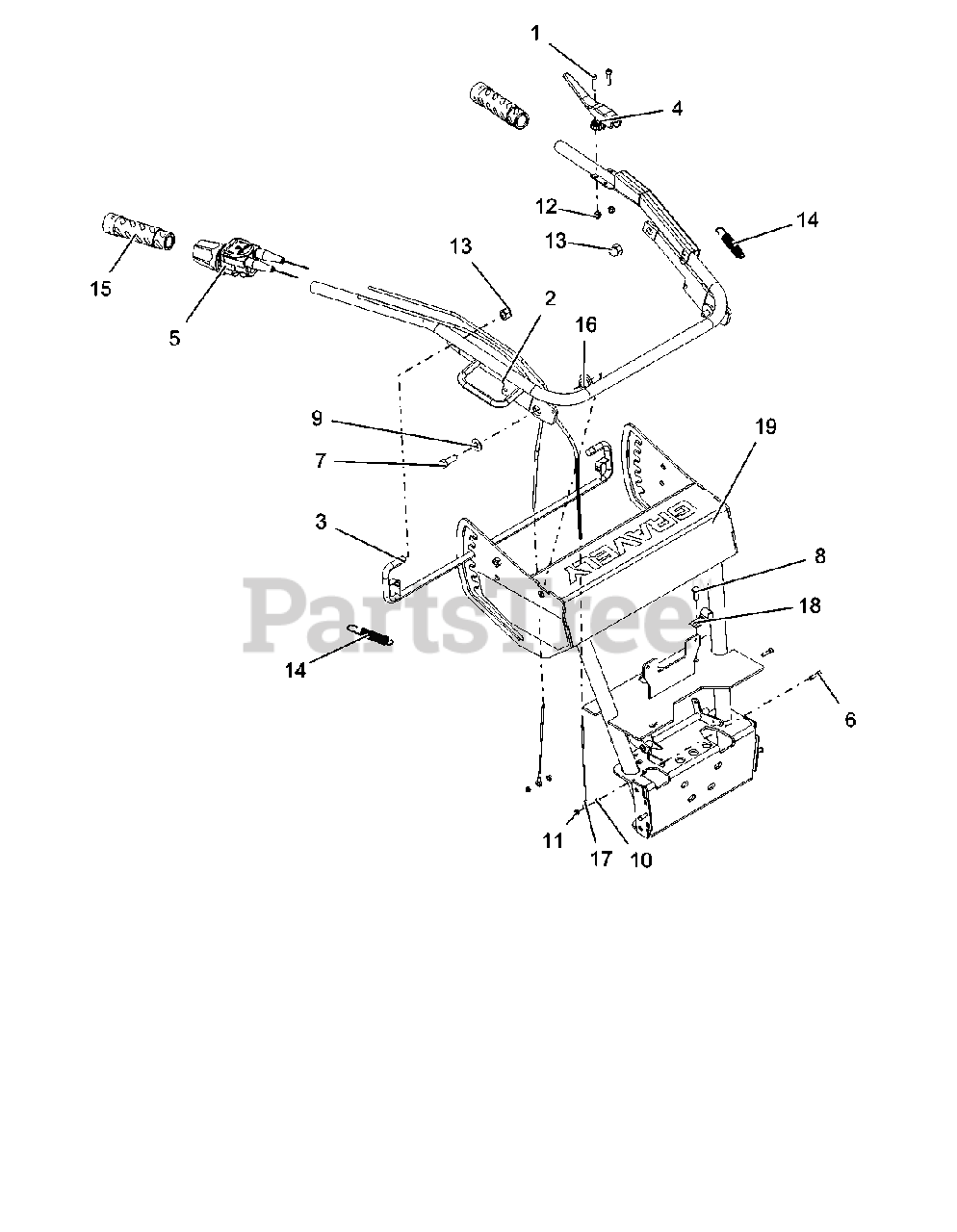

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebars And Controls Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 05901619

SCR, SKH M6-1 X 25 GR10.9 CKF

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 09117351

WLDMT, HANDLEBAR ADJUSTABLE (BLACK)

$300.99

$

Usually ships in 4-12 days

0

3

Gravely 09119351

ROD, WLDMT HEIGHT CONTROL

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 09128400

ASM, LEVER OP PRESENCE
(Superseded to 05095700)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 09128500

CONTROL, GROUP RAPID

$219.99

$

Usually ships in 4-12 days

0

6

Gravely 05901624

SCR, SKH M5-.8 X 20 GR12.9 ROHS

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 05901625

BLT, HEX M10-1.5X30 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 05901628

BLT, HEX M8-1.25X20 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 06401008

WSHR-FL-STL .438X1.00X.083 ZC120

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 06500740

NUT, HEX M5-0.8 GR 8.8 ZC120

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06500801

NUT, LK-NYL M5-0.8 GR8.8 ZC120

$1.49

$

Usually ships in 4-12 days

0

12

Gravely 06500802

NUT, LK-NYL M6-1.0 GR8.8 ZC120

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06500816

NUT, ACORN-M12-1.75 BLACK ZINC

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 08300628

SPRG, EXTENSION .063 X .653 X 2.755

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 08627000

HANDLE RUBBER

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 09128200

ASM, CABLE SPEED CONTROL

$

$

Not available

18

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

19

Gravely 58591000

ASM, STEERING PIVOT W/DECALS

$

$

Not available
