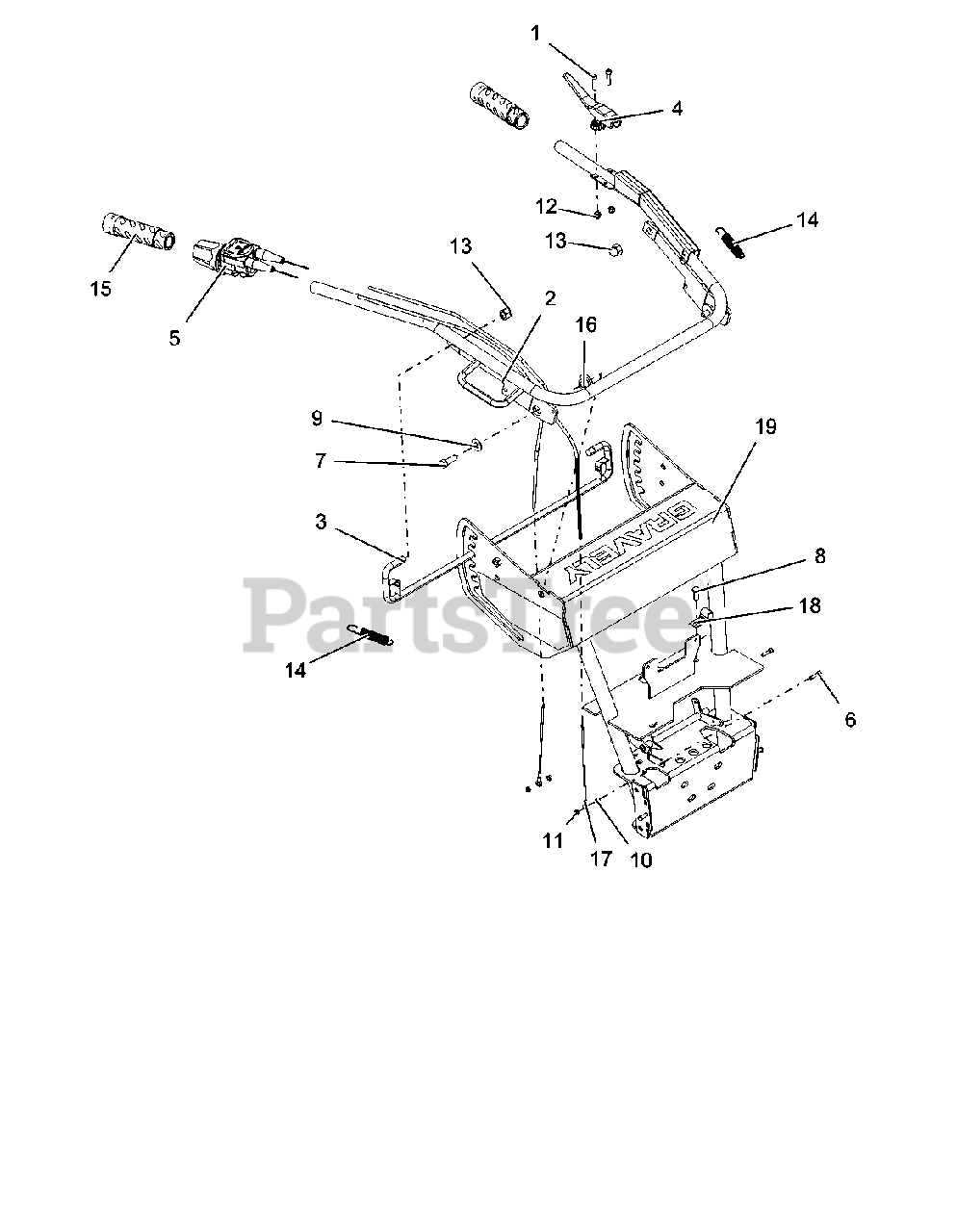

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Handlebars And Controls Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 05901619

SCR,SKH M6-1.0X25 10.9CRKFCTR

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 09117351

WLDMT, HANDLEBAR ADJUSTABLE

$313.99

$

Usually ships in 4-12 days

0

3

Gravely 09119351

WLDMT, LEVER HANDLEBAR ADJUST

$92.99

$

Usually ships in 4-12 days

0

4

Gravely 09128400

ASM, LEVER OP PRESENCE
(Superseded to 05095700)

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 09128500

ASM, TWIST GRIP W/CABLE

$260.99

$

Usually ships in 4-12 days

0

6

Gravely 05901624

SCR, SKH M5-.8X20 12.9ZC120

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 05901625

BLT, HEX M10-1.5X30 8.8ZC120

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 05901628

BLT, HEX M8-1.25X20 8.8ZC120

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 06401008

WSHR,FL-STL.438X1.00X.083 ROHS

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06500740

NUT, HEX M5-.8 8.8ZC120

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06500801

NUT, LK-NYL M5-.8 8.8ZC120

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06500802

NUT, LK-NYL M6-1.0 8.8ZC120

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06500816

M12-1.75 ACORN NUT BLACK ZINC

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 08300628

SPRG, EXT .653 X .063 X 2.755

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 08627000

RUBBER, HANDLE

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 09128200

ASM, CABLE SPEED CONTROL

$

$

Not available

18

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 58591000

ASM, STEERING PIVOT W/DECALS

$

$

Not available
