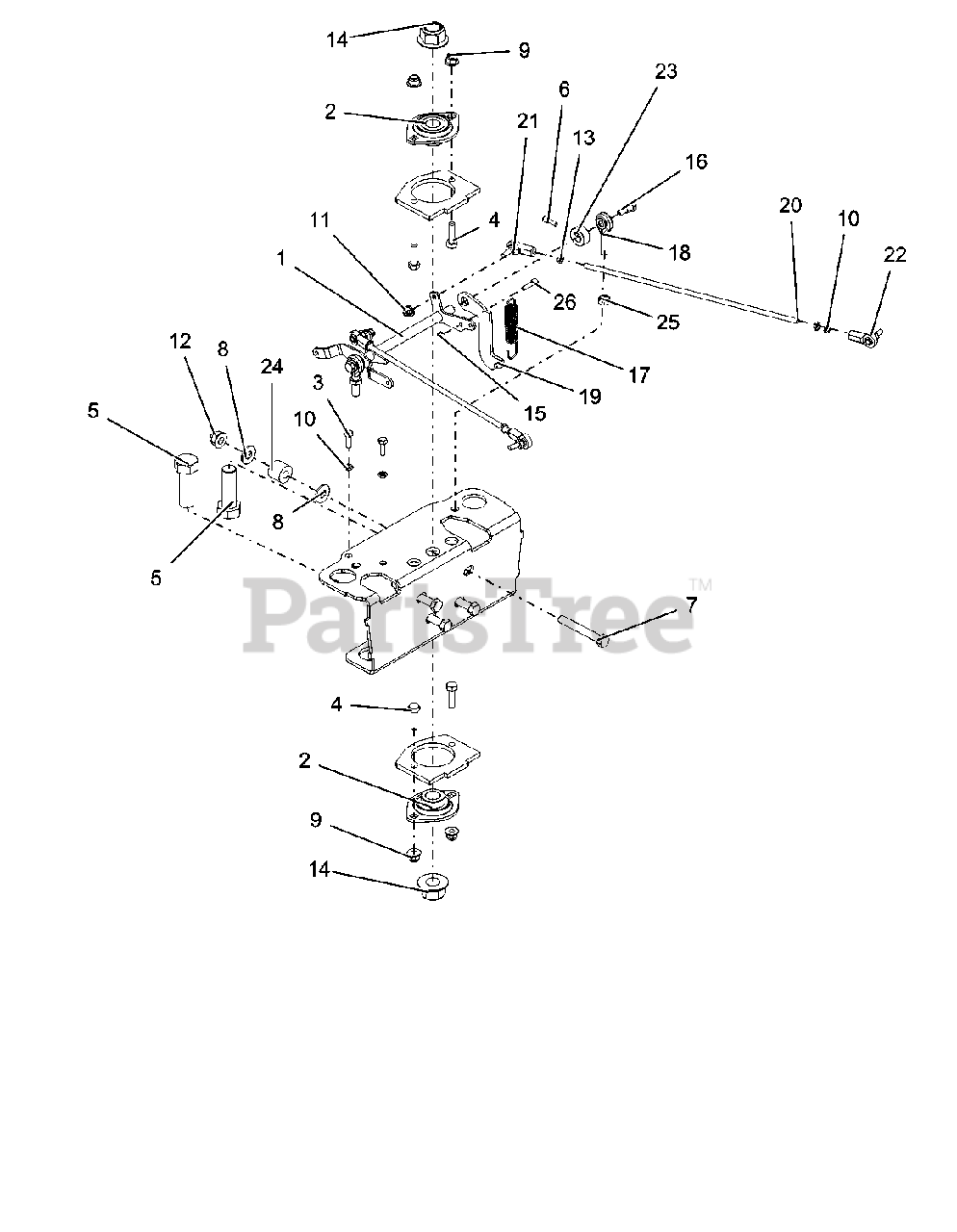

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Pivot Steering Controls Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Pivot Steering Controls Parts Diagram

  • Title

1

Gravely 09117053

WLDMT, ARM DRIVE-RED

$63.99

$

Usually ships in 4-12 days

0

2

Gravely 03685300

BEARING, 2 BOLT FLANGE - .75 ID

$50.99

$

In Stock, only 2 left!

0

3

Gravely 05901610

BLT, HEX M6-1X20 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 05901620

BLT, HEX M8-1.25X30 GR8.8 CKF

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05901623

BLT, HEX 0.75-10X2.25 GR5 ZC120

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 05901607

SCR, SKH M5-.8 X 16 GR12.9 ROHS

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901627

BLT, HEX M10-1.5X75 GR8.8 ZC120

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06401008

WSHR-FL-STL .438X1.00X.083 ZC120

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06500725

NUT, LK-NYL-FLG M8-1.25 GR8.8 ZC120

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06500728

NUT, HEX-JAM M6-1.0 GR8.8 ZC120

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06500729

NUT, LK-NYL-FLG M6-1.0 GR8.8 ZC120

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06500731

NUT, LK-NYL-FLG M10-1.5 GR8.8 ZC120

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06500732

NUT, HEX-JAM M6-1.0LH GR8.8 ZC120

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 06500738

NUT, LK-NYL-FLG M12-1.75 GR8.8 ZC120

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06500740

NUT, HEX M5-0.8 GR 8.8 ZC120

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07000021

BOLT, SHLDR -.375 X .375 X .25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 08300628

SPRG, EXTENSION .063 X .653 X 2.755

$7.49

$

Usually ships in 4-12 days

0

18

Gravely 08790600

ROD, END 3/8 RH REV

$60.99

$

Usually ships in 4-12 days

0

19

Gravely 09117153

LATCH, REVERSE-RED

$

$

Not available

20

Gravely 09118800

ROD, DRIVE THREADED LH-RH

$55.99

$

Usually ships in 4-12 days

0

21

Gravely 09118805

LINKAGE, BALL JOINT M6X1.00 LH

$53.99

$

Usually ships in 4-12 days

0

22

Gravely 09118810

LINKAGE, BALL JOINT M6X1.0 RH

$53.99

$

Usually ships in 4-12 days

0

23

Gravely 09119200

COLLAR, LOCKING REVERSE

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 09123700

BUMPER, STEERING

$12.99

$

Usually ships in 4-12 days

0

25

Gravely 06500739

NUT, HEX-JAM .375-24 ZC120

$2.49

$

In Stock, Qty 5

0

26

Gravely 05901624

SCR, SKH M5-.8 X 20 GR12.9 ROHS

$2.49

$

Usually ships in 4-12 days

0
