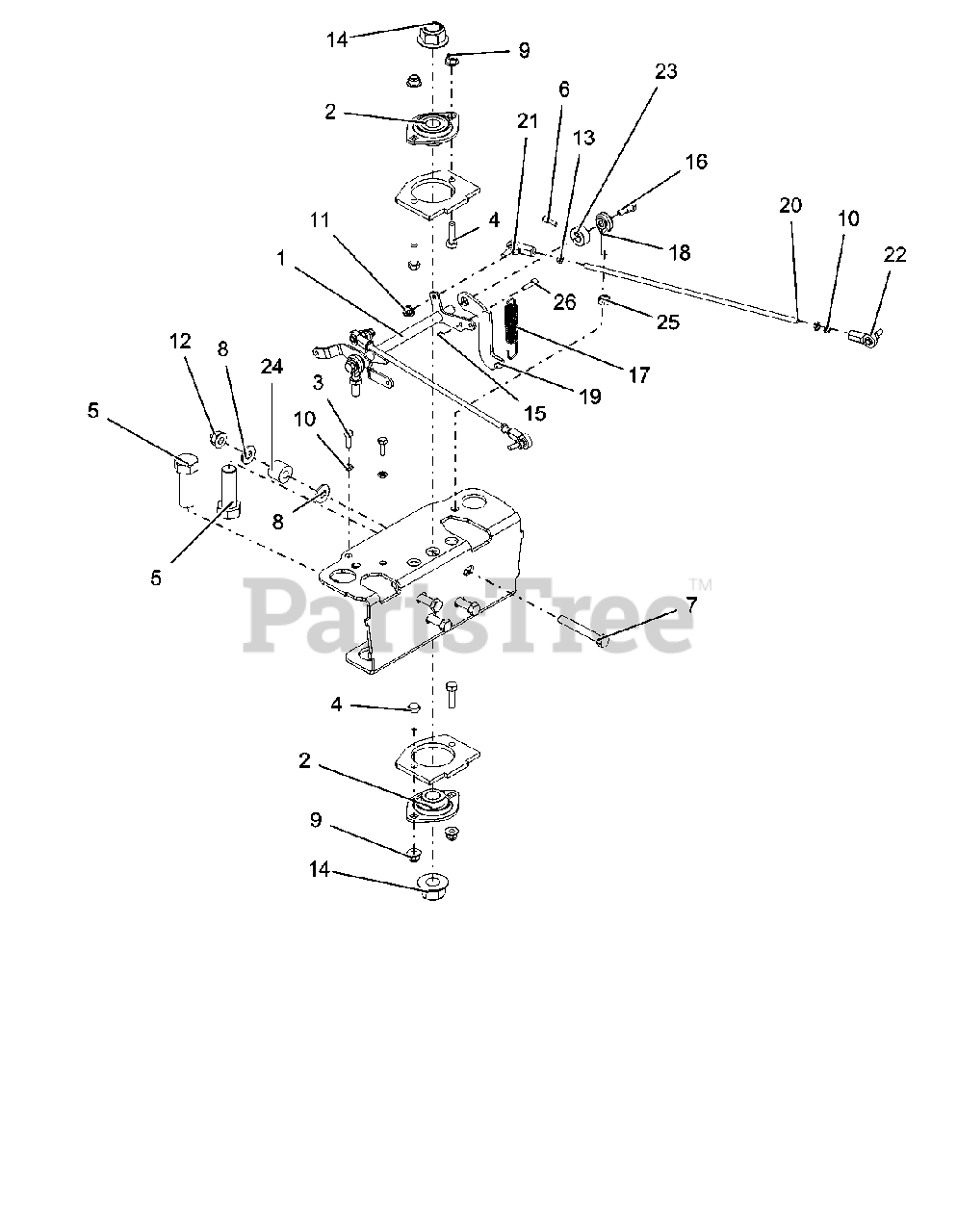

985910 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Pivot Steering Controls Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor

Pivot Steering Controls Parts Diagram

  • Title

1

Gravely 09117053

WLDMT, ARM DRIVE

$63.99

$

Usually ships in 4-12 days

0

2

Gravely 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$50.99

$

In Stock, only 4 left!

0

3

Gravely 05901610

BLT, HEX M6-1.0 X 20 8.8ZC120

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 05901620

BLT, HEX M8-1.25X30 8.8CRKFCTR

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05901623

BLT, HEX .75-10X2.25 G5ZC120

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 05901607

SCR, SKH M5-.8 X 16 12.9 ZC120

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901627

BLT, HEX M10-1.5X75 8.8ZC120AT

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06401008

WSHR,FL-STL.438X1.00X.083 ROHS

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06500725

NUT,LK-NYL-FLG,M8-1.25 8.8ZC12

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06500728

NUT, HEX-JAM M6-1.0 8.8ZC120

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06500729

NUT,LK-NYL-FLG,M6-1.0 8.8ZC120

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06500731

NUT,LK-NYL-FLG M10-1.5 8.8ZC12

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06500732

NUT,HEX-JAM,M6-1.0LH 8.8ZC120

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 06500738

NUT,LK-NYL-FLG .75-10 G5ZC120

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06500740

NUT, HEX M5-.8 8.8ZC120

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 08300628

SPRG, EXT .653 X .063 X 2.755

$7.49

$

Usually ships in 4-12 days

0

18

Gravely 08790600

ROD END, 3/8 RH

$60.99

$

Usually ships in 4-12 days

0

19

Gravely 09117153

LATCH, REVERSE

$

$

Not available

20

Gravely 09118800

ROD, DRIVE THREADED LH-RH

$55.99

$

Usually ships in 4-12 days

0

21

Gravely 09118805

LINKAGE, BALL JOINT M6X1.00 LH

$53.99

$

Usually ships in 4-12 days

0

22

Gravely 09118810

LINKAGE, BALL JOINT M6X1.00 RH

$53.99

$

Usually ships in 4-12 days

0

23

Gravely 09119200

COLLAR, LOCKING REVERSE

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 09123700

BUMPER, STEERING

$12.99

$

Usually ships in 4-12 days

0

25

Gravely 06500739

NUT, HEX-JAM .375-24 ZC120

$2.49

$

In Stock, only 3 left!

0

26

Gravely 05901624

SCR, SKH M5-.8X20 12.9ZC120

$2.49

$

Usually ships in 4-12 days

0
