985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Attachment Lock Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

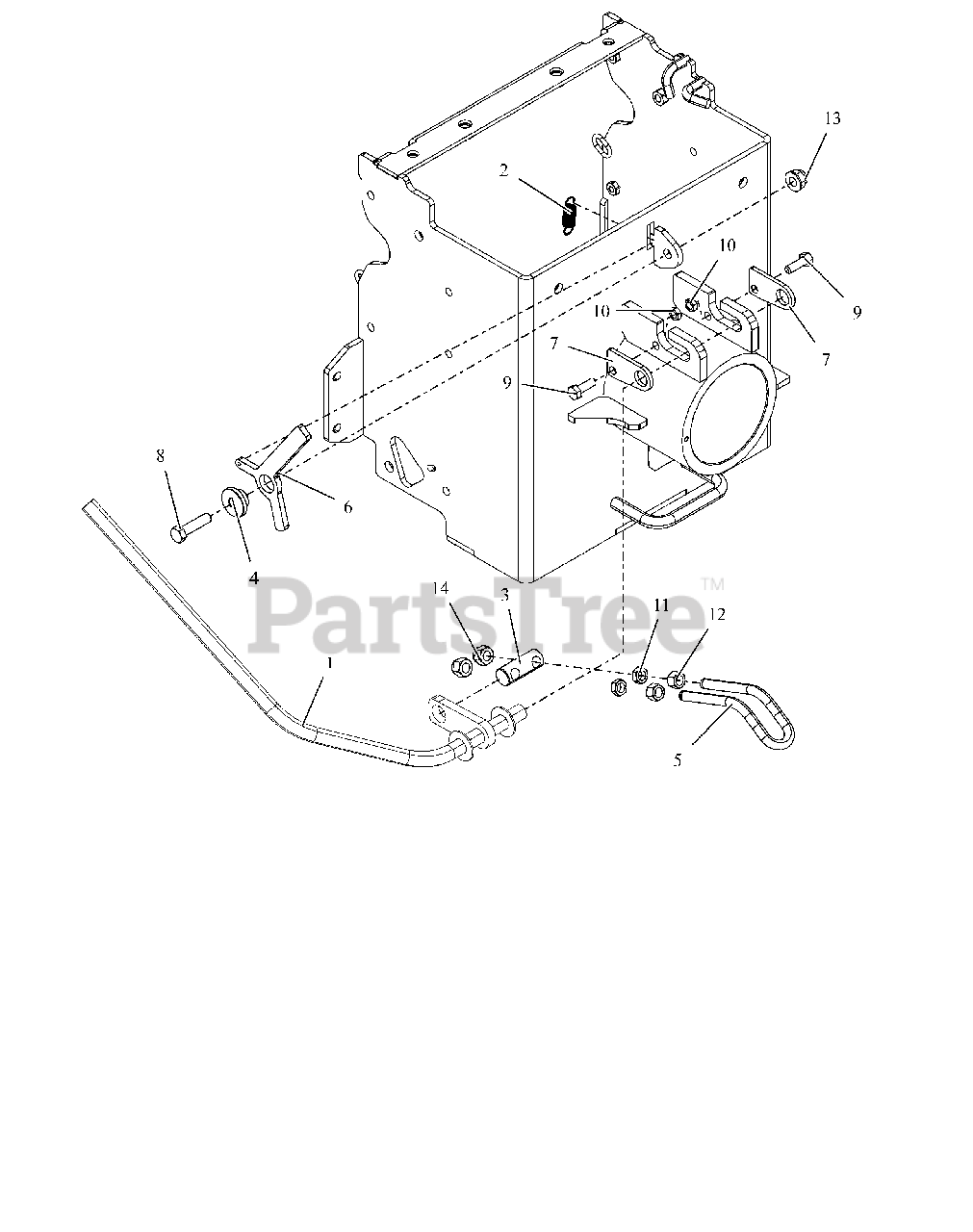

Attachment Lock Parts Diagram

  • Title

1

Gravely 09115651

WLDMT, LEVER ATTACHMENT

$42.99

$

Usually ships in 4-12 days

0

2

Gravely 08339300

SG-TENS .041X.500X1.750

$5.99

$

In Stock, only 2 left!

0

3

Gravely 09118500

ROD, PIVOT

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 09120600

LATCH, BOW

$56.99

$

Usually ships in 4-12 days

0

6

Gravely 09127051

LOCK, HANDLE

$16.99

$

Usually ships in 4-12 days

0

7

Gravely 09129651

PLATE, LOCK LEVER

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 05901616

BLT, HEX M10-1.5 X 40 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901630

BLT, HEX M8-1.25X25 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 06500819

NUT, HEX-JAM M10-1.5 A2-35 SS

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06500733

NUT, HEX M10-1.5 A2CL70 SS

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06500731

NUT,NYL-FLG M10-1.5 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06500734

NUT, LK-NYL M10-1.5 A2CL70 SS

$3.49

$

Usually ships in 4-12 days

0
