985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Clutch Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

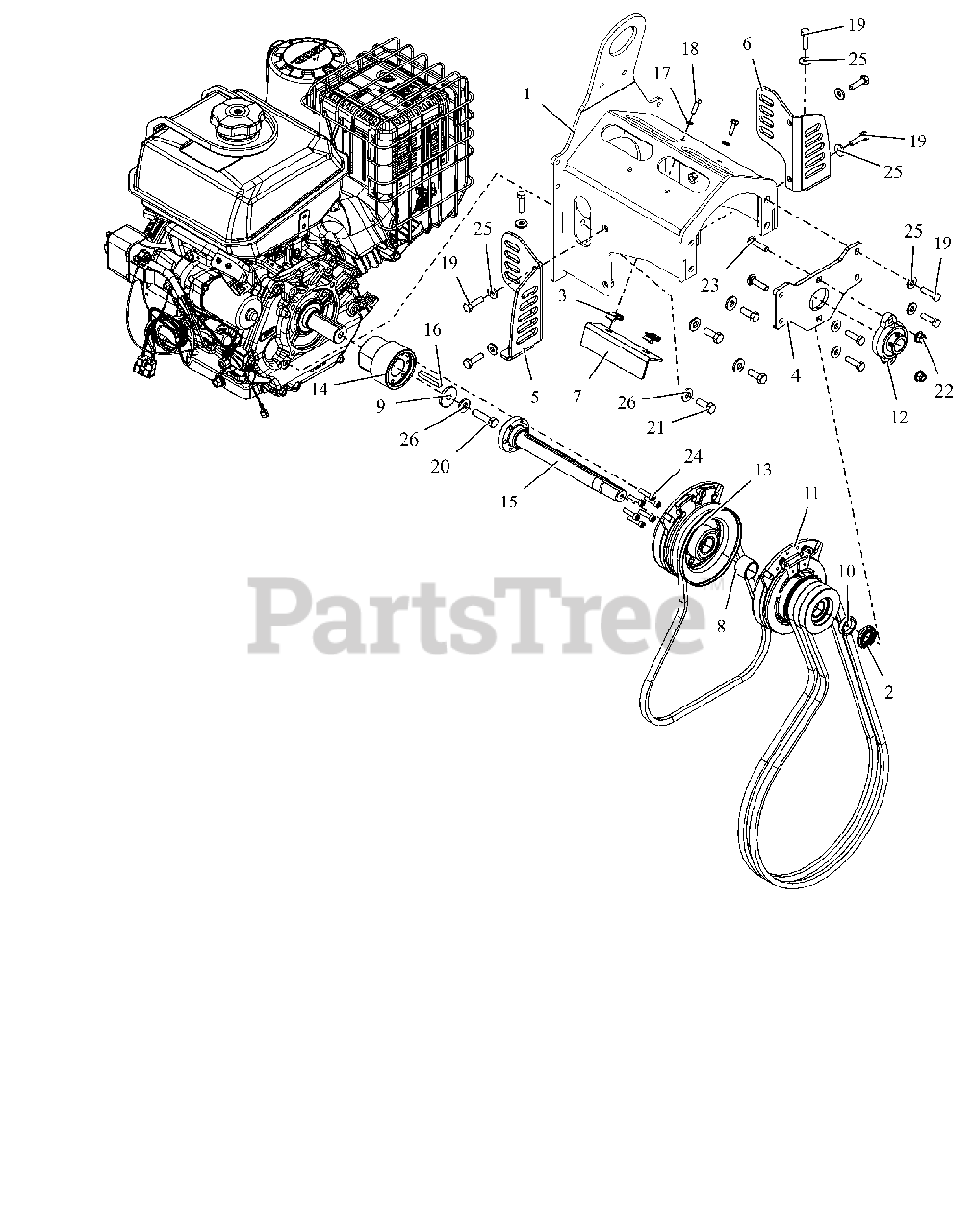

Clutch Parts Diagram

  • Title

1

Gravely 09116651

WLDMT, CRANK SHAFT SUPPORT

$173.99

$

Usually ships in 4-12 days

0

2

Gravely 06500804

NUT, BRG-LK M25X1.5 ZC120

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 07001728

NUT-RTNR M6X1

$

$

Not available

4

Gravely 09116451

PLATE, FACE CRANK SUPPORT

$16.99

$

Usually ships in 4-12 days

0

5

Gravely 09116751

BRKT, ENCLOSURE RH

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 09116851

BRKT, ENCLOSURE LH

$28.99

$

Usually ships in 4-12 days

0

7

Gravely 04841851

BRKT, CLUTCH STOP

$

$

Currently unavailable

8

Gravely 09118900

SPCR, CLUTCH

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 09119012

WSHR, COUPLER .394X1.438X.188

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 09120500

SPCR, BRG NUT

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 09121200

CLUTCH, PTO DOUBLE GROOVE

$413.99

$

Usually ships in 4-12 days

0

12

Gravely 09122500

BRG, FLANGE FX205

$56.99

$

Usually ships in 4-12 days

0

13

Gravely 09122800

CLUTCH, TRANS RMS

$258.99

$

Usually ships in 4-12 days

0

14

Gravely 09126700

COUPLER, SHAFT EXTENSION

$245.99

$

Usually ships in 4-12 days

0

15

Gravely 09126800

CRANK, SHAFT EXTENSION

$175.99

$

Usually ships in 4-12 days

0

16

Gravely 09131600

KEY, 7MM X 46MM

$23.99

$

Usually ships in 4-12 days

0

17

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 16

0

18

Gravely 05901610

BLT, HEX M6-1.0 X 20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 05901620

BLT, HEX M8-1.25X30 8.8CRKFCTR

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 05901706

BLT,HEX M10-1.25X40FT10.9CRKFC

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 05901617

BLT, HEX .38-16X1.00 G5 CKF

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06500725

NUT,NYL-FLG M8-1.25 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 06200230

BLT,RDHDSQNK M8-1.25X35 8.8ZC1

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 05901619

SCR,SKH M6-1.0X25 10.9CRKFCTR

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06401007

WSHR,BLVL M8X19.84X2.5 ZCMCH

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 06401005

WSHR,BLVL,M10 X 25 X 3.9 ZCMCH

$24.99

$

Usually ships in 4-12 days

0
