985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Electrical Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

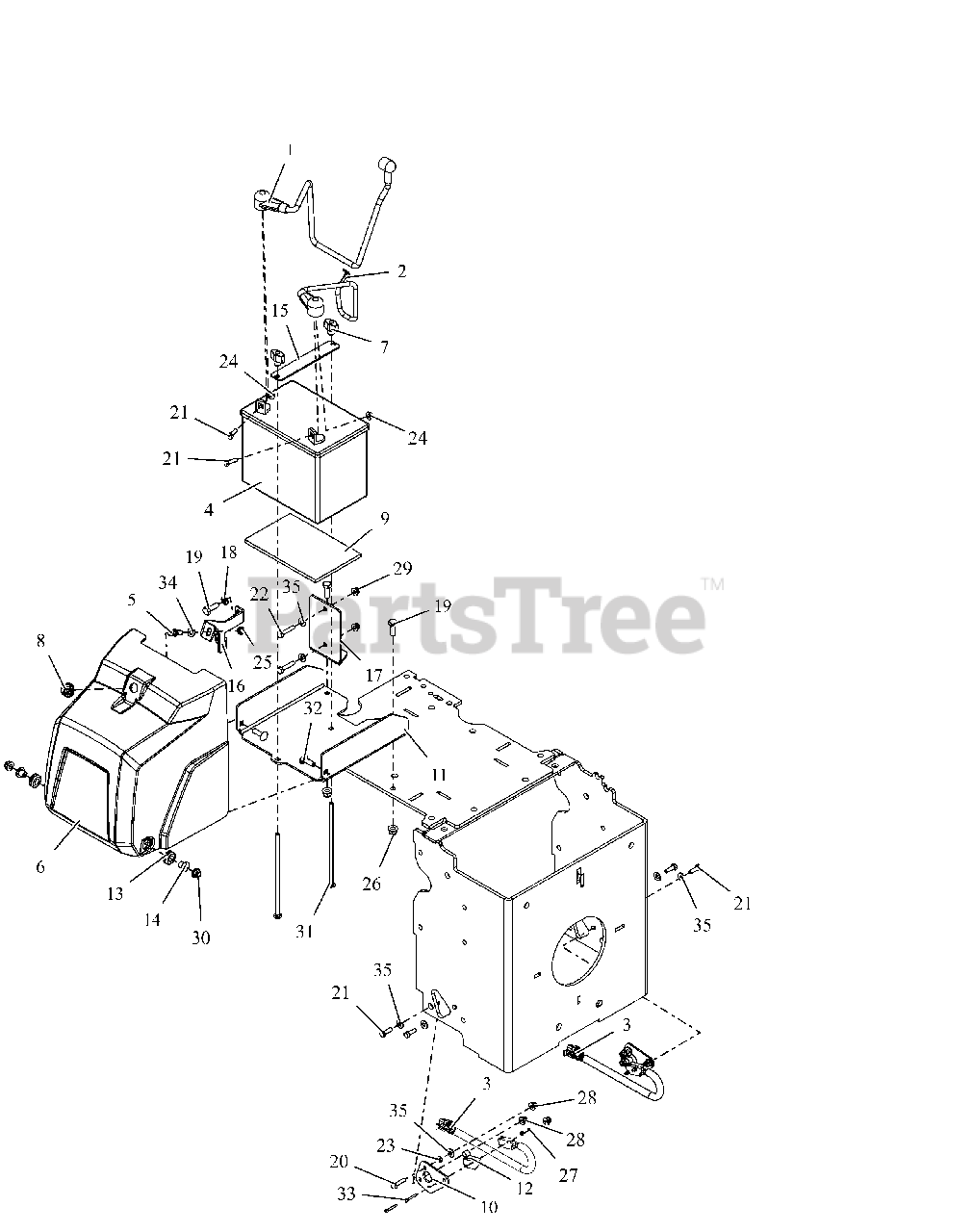

Electrical Parts Diagram

  • Title

1

Gravely 03821010

CABLE, POSITVE BATTERY 16.75"

$18.99

$

Usually ships in 4-12 days

0

2

Gravely 03821020

CABLE, BATTERY NEGATIVE 22.5"

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 09129500

ASM, SWITCH W/LEADS&CONNECTOR

$81.99

$

Usually ships in 4-12 days

0

4

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05163600

COVER, BATTERY

$138.99

$

Usually ships in 4-12 days

0

7

Gravely 07500104

KNOB, WING - .25-20 UNC

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 07500407

GROMMET, 10MM BOLLHOFF

$6.49

$

In Stock, Qty 20+

0

9

Gravely 08803400

PAD,BATTERY

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 09115753

PLATE, BASE

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 09117953

SUPPORT, BATTERY

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 09118600

SPRG, SWITCH

$30.99

$

Usually ships in 4-12 days

0

13

Gravely 09121800

GROMMET, COVER MNT

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 09121900

BSHG, FRONT COVER

$18.99

$

Usually ships in 4-12 days

0

15

Gravely 09130751

STRAP, BATTERY

$7.99

$

Usually ships in 4-12 days

0

16

Gravely 09149553

BRKT, BATTERY DOOR CATCH

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 09149653

BRKT, MOUNT-REGULATOR-KOHLER

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05901630

BLT, HEX M8-1.25X25 G8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 05901609

BLT, HEX M6-1.0 X 25 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 05901610

BLT, HEX M6-1.0 X 20 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$2.49

$

In Stock, Qty 7

0

23

Gravely 06500728

NUT, HEX-JAM M6-1.0 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 06500807

NUT, SPNLK-FLG M6-1.0 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 06500817

NUT,NYL M8-1.25 G8.8 ZCC

$1.99

$

Usually ships in 4-12 days

0

26

Gravely 06500725

NUT,NYL-FLG M8-1.25 G8.8 ZCC

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06500727

NUT,NYL M3-.5 G8.8 ZCC

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06500729

NUT,NYL-FLG M6-1.0 G8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06200229

BLT,RHSN .25-20X7.00 G2 ZCC

$5.49

$

In Stock, only 2 left!

0

32

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 05901608

SCR,SKH,M3-.5 X 25 12.9ZC120

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

Usually ships in 4-12 days

0

35

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, only 3 left!

0
