985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Handlebars Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

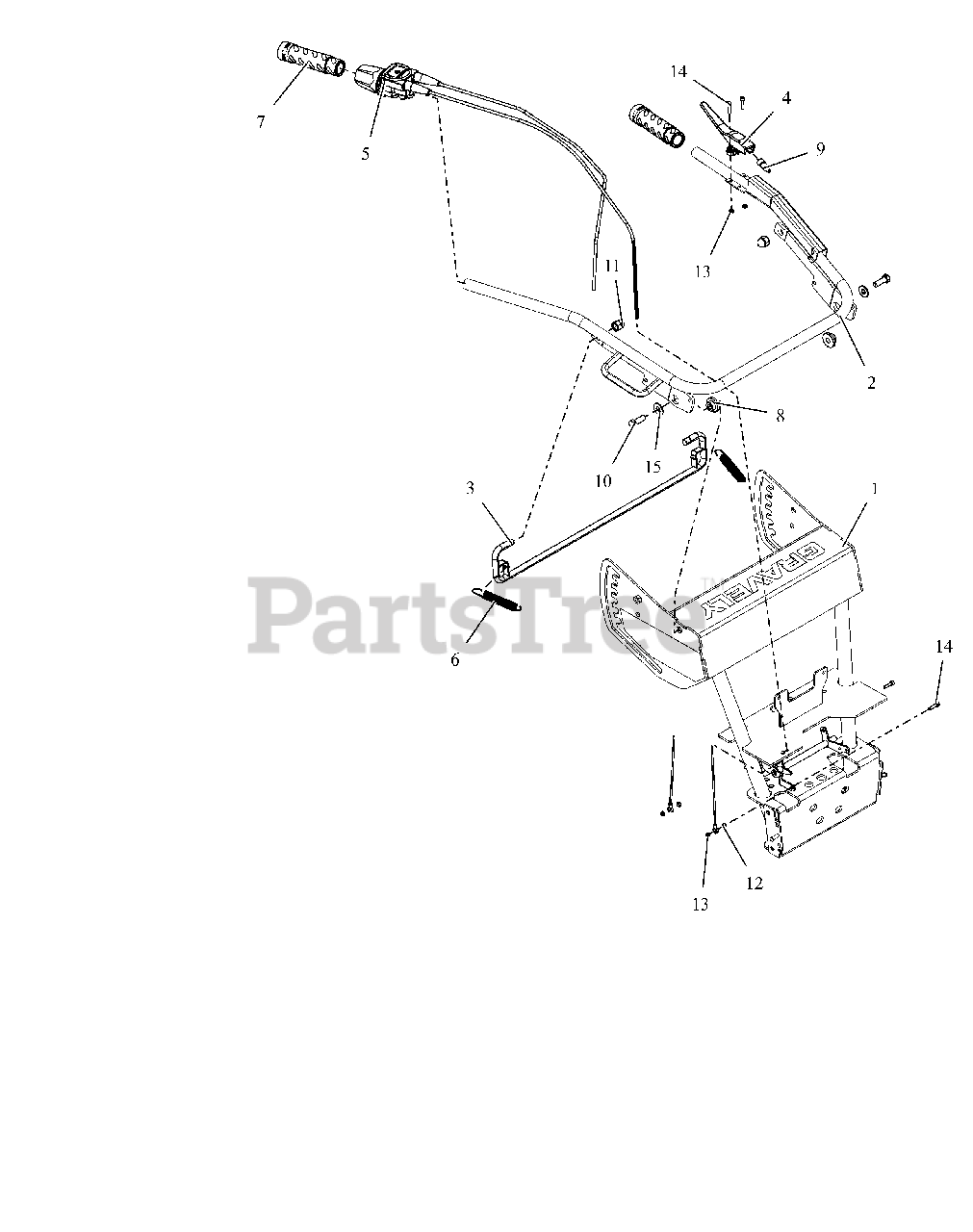

Handlebars Parts Diagram

  • Title

1

Gravely 58591000

ASM, STEERING PIVOT W/DECALS

$

$

Not available

2

Gravely 09117351

WLDMT, HANDLEBAR ADJUSTABLE

$300.99

$

Usually ships in 4-12 days

0

3

Gravely 09119351

WLDMT, LEVER HANDLEBAR ADJUST

$90.99

$

Usually ships in 4-12 days

0

4

Gravely 09128400

ASM, LEVER OP PRESENCE
(Superseded to 05095700)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 09128500

ASM, TWIST GRIP W/CABLE

$219.99

$

Usually ships in 4-12 days

0

6

Gravely 08300628

SPRG, EXT .653 X .063 X 2.755

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 08627000

RUBBER, HANDLE

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 09119400

BSHG, STEP .413X.776X1.25X.413

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 09128800

BOOT, OPC

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 05901625

BLT, HEX M10-1.5 X 30 G8.8 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06500816

M12-1.75 ACORN NUT BLACK ZINC

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06500740

NUT, HEX M5-.8 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06500801

NUT,NYL M5-.8 G8.8 ZCC

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 05901624

SCR, SKH M5-.8X20 12.9ZC120

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, only 4 left!

0
