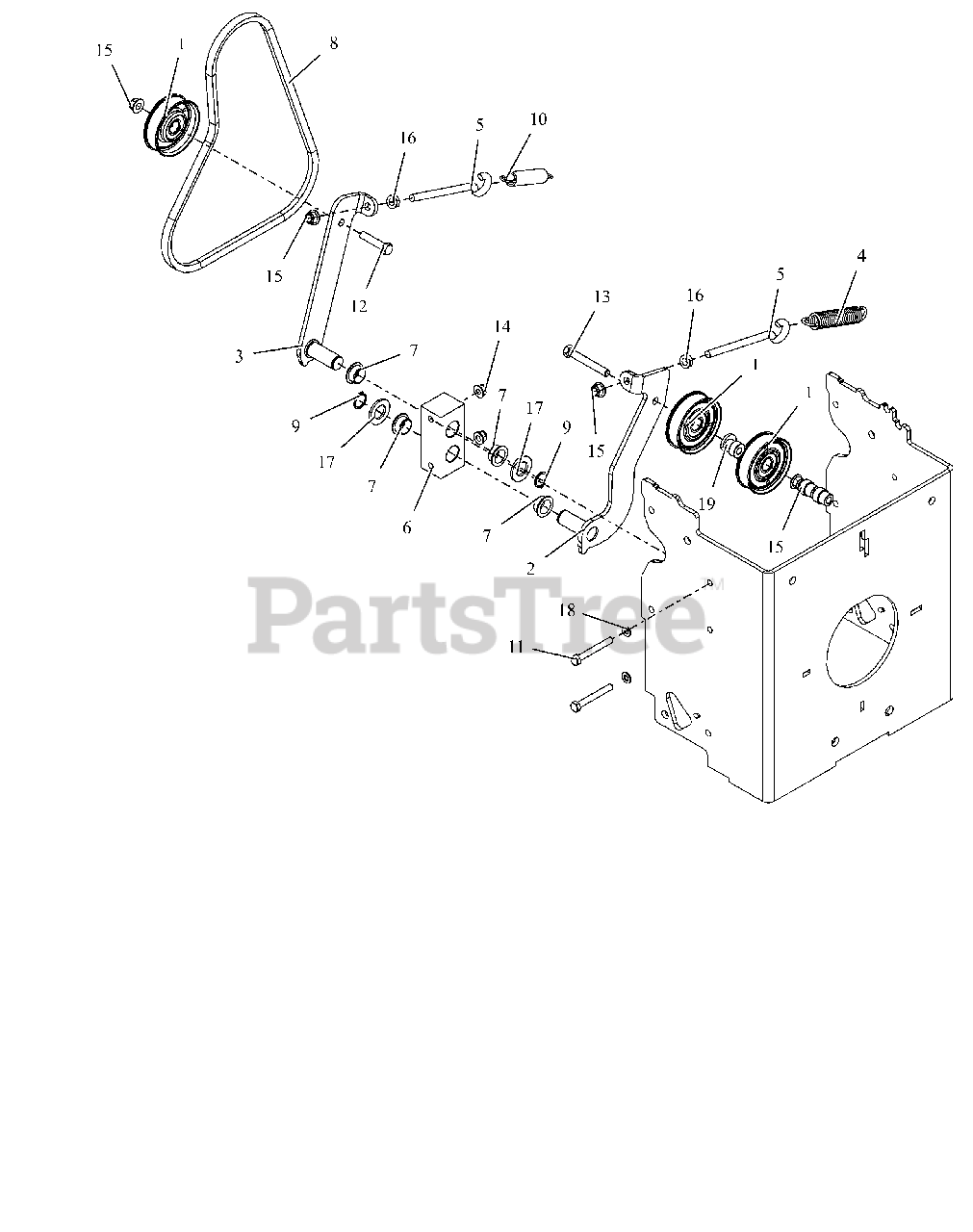

985911 - Gravely Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH (SN: 000101 & Above) Idlers and Belt Tensioners Parts Diagram

Pro-QXT Walk-Behind 2-Wheel Tractor, Kohler CH

Idlers and Belt Tensioners Parts Diagram

  • Title

1

Gravely 07340000

IDLER, FLAT - 3.05" X .75"
(Superseded to 07350200)

$22.99

$

In Stock, Qty 7

0

2

Gravely 09115853

WLDMT, TENSIONER PTO BELT

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 09115953

WLDMT, TENSIONER TRANS BELT

$76.99

$

Usually ships in 4-12 days

0

4

Gravely 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 1 left!

0

5

Gravely 07001733

BOLT, EYE .38-16X4.50 .62DIABZ

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 09120453

BLOCK, BRG IDLER

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 09121500

BSHG, IDLER EP BB2012

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 09122100

V-BELT, HA-RAW EDGE

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 00102214

SNAP RING, .781 X .042 EXT

$3.49

$

In Stock, only 1 left!

0

10

Gravely B10195

SPRING, EXT .091 X .75 X 3.75

$27.99

$

Usually ships in 4-12 days

0

11

Gravely 05901613

BLT, HEX M8-1.25 X 65 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05901612

BLT, HEX .38-16X1.75F G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06500725

NUT,NYL-FLG M8-1.25 G8.8 ZCC

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 18

0

17

Gravely 06401003

WSHR,FLT 21X37X3MM ZCC

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

In Stock, only 2 left!

0

19

Gravely 06443800

WSHR,FLT .438X1.00X.160 ZCC

$3.99

$

Usually ships in 4-12 days

0
