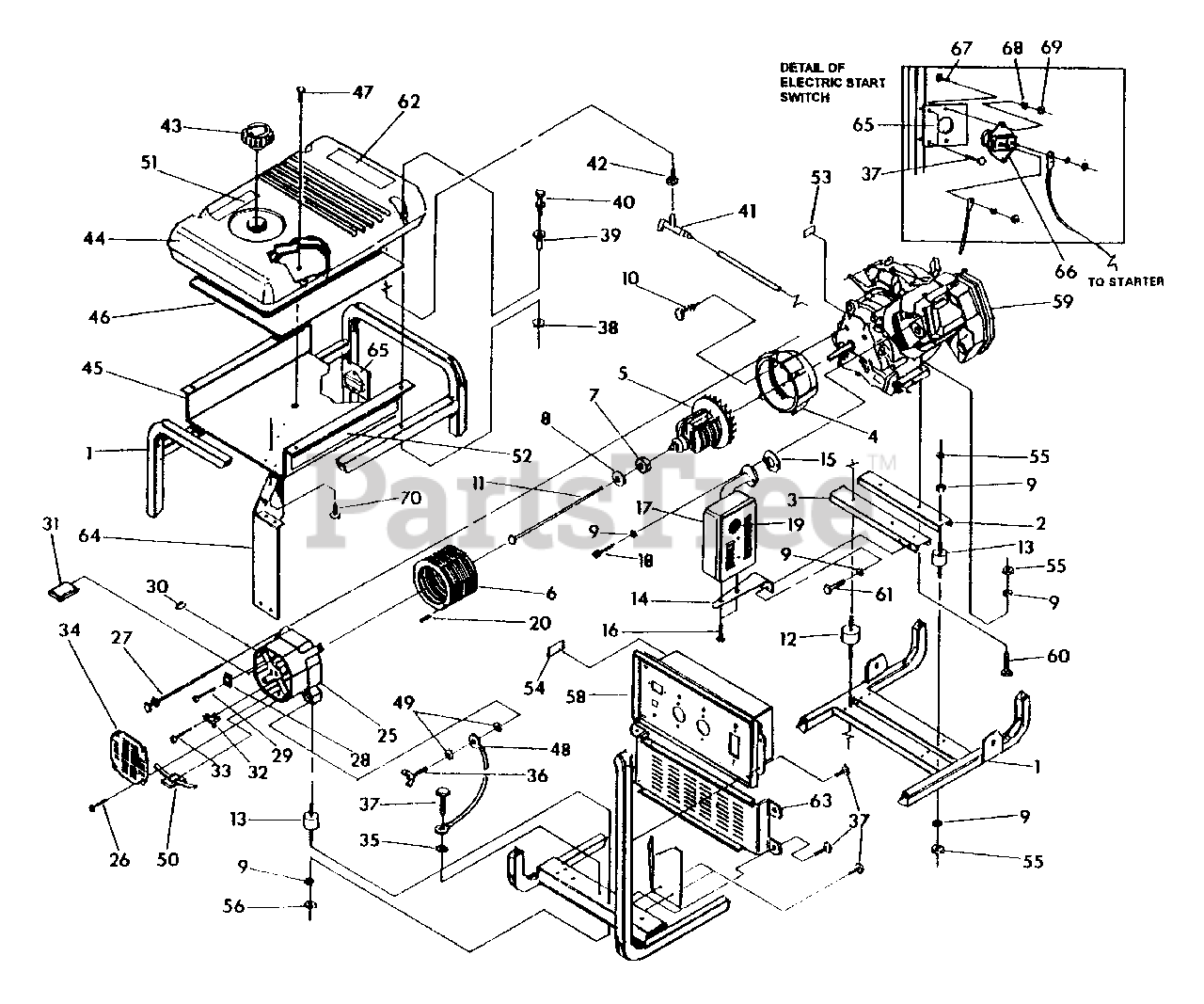

9860-0 - Generac 5,500 Watt Portable Generator Cradle Parts Diagram

5,500 Watt Portable Generator

Cradle Parts Diagram

  • Title

$

$

Currently unavailable

2

Briggs & Stratton 92531

Engine support

$

$

Currently unavailable

3

Briggs & Stratton 92731

Engine and muffler support
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

Engine adaptor housing
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92678G

Rotor assembly
(Superseded to 92678GGS)

$

$

Not available

6

Briggs & Stratton 94984G

Stator assembly

$

$

Not available

7

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

M8 Flatwasher

$

$

Currently unavailable

9

M8 Lockwasher

Note: Standard hardware item, available locally

$

$

Not available

10

Briggs & Stratton 86307

5/16"-24 x 3/4" Screw
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 25254

5/16"-24 x 9-7/8" Capscrew
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

Vibration mount
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

Vibration mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532

Muffler bracket
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239

Exhaust gasket
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476

M6-1.0 x 12mm Capscrew
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 91153

Muffler
(Superseded to A7433GS)

$

$

Not available

18

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

19

Briggs & Stratton 83083

Spark arrest screen
(Superseded to 83083GS)

$9.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 81917

4 x 10mm Roll pin
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

Rear bearing carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

M5-0.8 x 12mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308B

M6 x 165mm Stator bolt
(Superseded to 86308BGS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

Battery charge rectifier
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

M5-0.8 x 20mm Screw
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

Rubber grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

Drive module
(Superseded to 84132GS)

$126.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 66849

M5-0.8 x 16mm Screw
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 67025

Bearing carrier cover

$

$

Currently unavailable

35

#10 Internal washer

Note: Standard hardware item, available locally

$

$

Not available

36

Briggs & Stratton 86494

M6-1.0 x 16mm Wing screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

#10 Self-drilling capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

M6 Flange lock nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

Tank grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

40

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

Tank valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

Plastic tank bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 90878

Fuel cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

$

$

Not available

45

$

$

Currently unavailable

46

Briggs & Stratton 92665

#2-1/4" thick lnsulation
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

Insulation clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

Ground wire

$

$

Not available

49

M6 Shakeproof washer

Note: Standard hardware item, available locally

$

$

Not available

50

Briggs & Stratton 57593

Cable tie mount
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982

Danger decal
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton 94488

Heat shield decal

$

$

Currently unavailable

53

Briggs & Stratton 92758

Data decal
(Superseded to 92758GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 81886

STA-BIL decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

55

5/16" -18 Hex nut

Note: Standard hardware item, available locally

$

$

Not available

56

UNKNOWN

$

$

Not available

58

Briggs & Stratton 94270

Control box assembly

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 94729

11 horsepower Engine
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

60

5/16" -18 x 1-3/4" Capscrew

Note: Standard hardware item, available locally

$

$

Not available

61

5/16" -18 x 3/4 Capscrew

Note: Standard hardware item, available locally

$

$

Not available

62

Briggs & Stratton 93826

Start instructions decal
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 94381

Louver panel
(Superseded to 691680)

$5.99

$

In Stock, only 4 left!

0

64

$

$

Currently unavailable

65

Briggs & Stratton 78289

Starter switch bracket
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 77282

Starter switch

$

$

Not available

67

1/4" -20 x 3/4" Screw

Note: Standard hardware item, available locally

$

$

Not available

68

M6 Lockwasher

Note: Standard hardware item, available locally

$

$

Not available

69

1/4"-20 Hex nut

Note: Standard hardware item, available locally

$

$

Not available

70

Briggs & Stratton 56893

#10-24 X 1/2" Screw
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0
