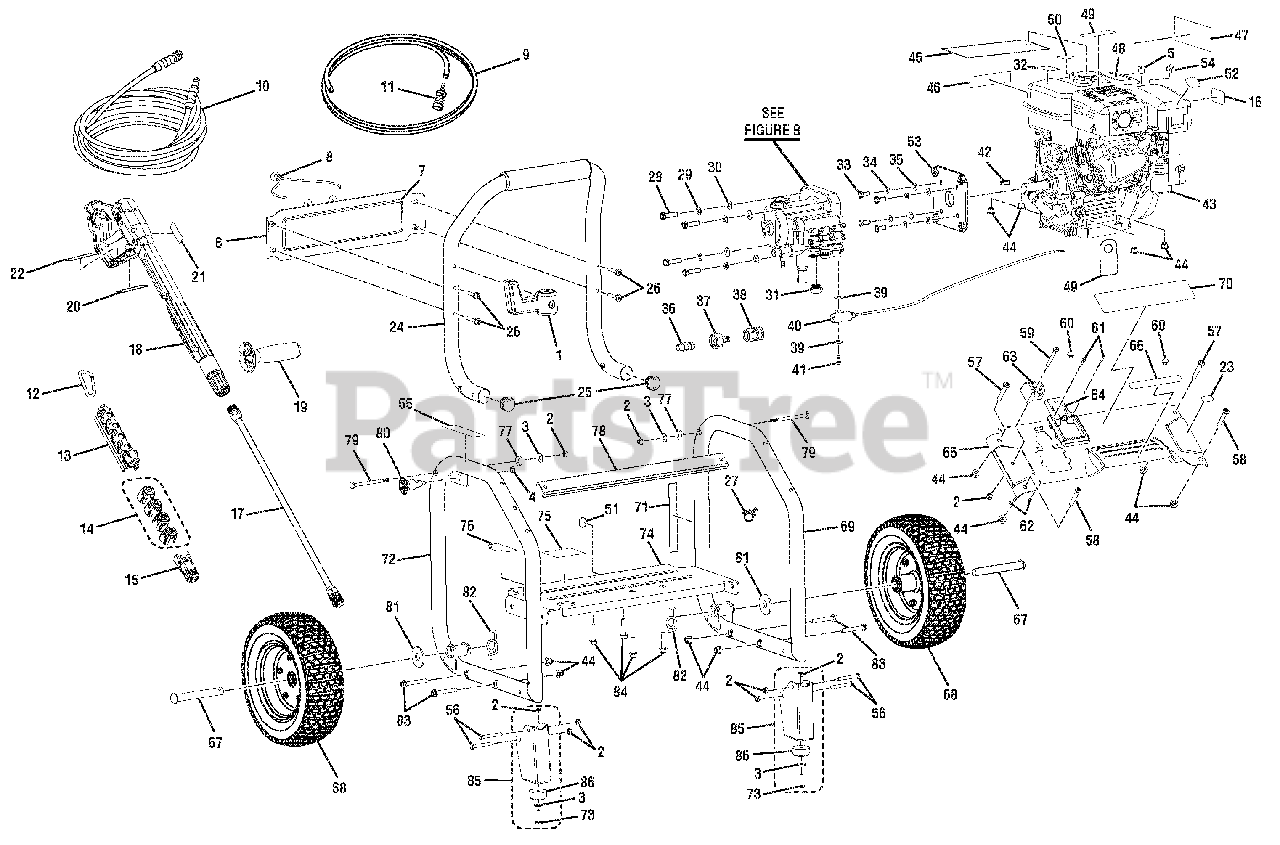

986002 - Gravely Pressure Washer (SN: 000129 & Above) Assembly Parts Diagram

Pressure Washer

Assembly Parts Diagram

  • Title

1

Gravely 20000418

Wand Holder Assembly

$

$

Not available

2

Gravely 20000419

Lock Nut (1/4-20)
(Superseded to 20000836)

Note: (1/4-20)

$

$

Not available

3

Gravely 20000420

Washer (1/4 in.)

Note: (1/4 in.)

$

$

Not available

4

Gravely 20000421

Lock Nut (1/2-20)

Note: (1/2-20)

$

$

Not available

5

Gravely 20000422

Swivel Bushing

$

$

Not available

6

Gravely 20000423

Logo Plate

$

$

Not available

7

Gravely 20000532

Performance Label

$

$

Not available

8

Gravely 20000425

Bungee Cord and Bead Assembly

$

$

Not available

9

Gravely 20000426

Injection Hose

$

$

Not available

10

Gravely 20000533

High Pressure Hose (30 ft.)

Note: (30 ft.)

$

$

Not available

11

Gravely 20000428

Injection Hose Filter

$

$

Not available

12

Gravely 20000429

Spring Clip

$

$

Not available

13

Gravely 20000430

Storage Holder

$

$

Not available

14

Gravely 20000534

Nozzle Kit

$

$

Not available

15

Gravely 20000432

Soap Blaster Nozzle

$

$

Not available

16

Gravely 20000512

Squeeze Trigger Label

$

$

Not available

17

Gravely 20000433

Spray Wand

$

$

Not available

18

Gravely 20000434

Trigger Handle Assembly (Inc. Key Nos. 19-22)

Note: (Inc. Key Nos. 19-22)

$157.99

$

Usually ships in 4-12 days

0

19

Gravely 20000435

Auxiliary Handle Assembly

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 20000513

Trigger Guard Warning Label (French/Spanish)

Note: (French/Spanish)

$

$

Not available

21

Gravely 20000436

Trigger Guard Warning Label (English)

Note: (English)

$

$

Not available

22

Gravely 20000514

Max Pressure Label

$

$

Not available

23

Gravely 20000515

Idle Control Label

$

$

Not available

24

Gravely 20000439

Handle Assembly (Inc. Key No. 25)

Note: (Inc. Key No. 25)

$

$

Not available

25

Gravely 20000440

Handle Tube Cap

$

$

Not available

26

Gravely 20000441

Bolt (1/4 x 42 mm, Pan Hd.)

Note: (1/4 x 42 mm, Pan Hd.)

$

$

Not available

27

Gravely 20000442

Cable Clamp

$

$

Not available

28

Gravely 20000443

Bolt (3/8-16 x 1-3/8 in., Hex Hd.)

Note: (3/8-16 x 1-3/8 in., Hex Hd.)

$

$

Not available

29

Gravely 20000444

Lock Washer (3/8 in.)

Note: (3/8 in.)

$

$

Not available

30

Gravely 20000445

Washer (3/8 in.)

Note: (3/8 in.)

$

$

Not available

31

Gravely 20000446

Threaded Valve Plug

$

$

Not available

32

Gravely 20000516

Do Not Mix Label

$

$

Not available

33

Gravely 20000447

Bolt (5/16-24 x 3/4 in., Hex Hd.)

Note: (5/16-24 x 3/4 in., Hex Hd.)

$

$

Not available

34

Gravely 20000448

Lock Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

35

Gravely 20000449

Washer (5/16 in.)

Note: (5/16 in.)

$

$

Not available

36

Gravely 20000450

Thermal Release Valve

$22.99

$

Usually ships in 4-12 days

0

37

Gravely 20000451

Garden Hose Coupler w/Filter

$

$

Not available

38

Gravely 20000452

Quick Disconnect (Female)

Note: (Female)

$

$

Not available

39

Gravely 20000453

Seal

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 20000454

Throttle Control Assembly

$

$

Not available

41

Gravely 20000455

Throttle Control Bolt (Special)

Note: (Special)

$7.99

$

Usually ships in 4-12 days

0

42

Gravely 20000456

Output Shaft Key (27 mm)

Note: (27 mm)

$

$

Not available

43

**

SP210 Hori. Engine (EPA)

Note: (EPA)

$

$

Not available

44

Gravely 20000457

Lock Nut (M8 x 1.25 mm)

Note: (M8 x 1.25 mm)

$

$

Not available

45

Gravely 20000517

Hang Tag (Engine)

Note: (Engine)

$

$

Not available

46

Gravely 20000518

Add Lubricant Label

$

$

Not available

47

Gravely 20000519

Combustion Warning Label

$

$

Not available

48

Gravely 20000520

Danger Label (English)

Note: (English)

$

$

Not available

49

Gravely 20000521

Oil Dipstick Hang Tag

$

$

Not available

50

Gravely 20000522

E-85 Label

$

$

Not available

51

Gravely 20000523

Check Oil Label

$

$

Not available

52

Gravely 20000524

Hot Muffler Label

$

$

Not available

53

Gravely 20000458

Pump Flange

$

$

Not available

54

Gravely 20000442

Cable Clamp

$

$

Not available

55

Gravely 20000473

Handle Release Label

$

$

Not available

56

Gravely 20000459

Bolt (1/4-20 x 52 mm, Hex Hd.)

Note: (1/4-20 x 52 mm, Hex Hd.)

$

$

Not available

57

Gravely 20000460

Bolt (M8 x 50 mm, Hex Soc. Hd.)

Note: (M8 x 50 mm, Hex Soc. Hd.)

$

$

Not available

58

Gravely 20000461

Bolt (M8 x 46 mm, Hex Soc. Hd.)

Note: (M8 x 46 mm, Hex Soc. Hd.)

$

$

Not available

59

Gravely 20000462

Screw (1/4-20 x 2.1 in., T30, Torx Hd.)

Note: (1/4-20 x 2.1 in., T30, Torx Hd.)

$

$

Not available

60

Gravely 20000463

Bumper Handle

$

$

Not available

61

Gravely 20000464

Screw (M4 x 12 mm, Hex Button Hd.)

Note: (M4 x 12 mm, Hex Button Hd.)

$

$

Not available

62

Gravely 20000465

Lock Nut (M4)

Note: (M4)

$

$

Not available

63

Gravely 20000466

Wand Holder

$

$

Not available

64

Gravely 20000467

Trigger Handle Storage

$

$

Not available

65

Gravely 20000468

Face Plate

$

$

Not available

66

Gravely 20000525

Hot Surface Label

$

$

Not available

67

Gravely 20000535

Axle

$

$

Not available

68

Gravely 20000536

Wheel (D12 in. x 3 in.)

Note: (D12 in. x 3 in.)

$40.99

$

Usually ships in 4-12 days

0

69

Gravely 20000471

Left Frame

$

$

Not available

70

Gravely 20000526

Logo Label

$

$

Not available

71

Gravely 20000527

Quick Start Label (Engine)

Note: (Engine)

$

$

Not available

72

Gravely 20000472

Right Frame Assembly

$

$

Not available

73

Gravely 20000486

Bolt (1/4-20 x 1 in.)

Note: (1/4-20 x 1 in.)

$

$

Not available

74

Gravely 20000474

Engine Plate

$

$

Not available

75

Gravely 20000537

Data Label

$

$

Not available

76

Gravely 20000530

Quick Start Label (Pump)

Note: (Pump)

$

$

Not available

77

Gravely 20000476

Washer (OD20 x ID8 x 4.5t)

Note: (OD20 x ID8 x 4.5t)

$

$

Not available

78

Gravely 20000477

Brace

$

$

Not available

79

Gravely 20000478

Connector Pin (1/4 in.)

Note: (1/4 in.)

$

$

Not available

80

Gravely 20000479

Handle Knob

$

$

Not available

81

Gravely 20000480

Washer (5/8 in.)

Note: (5/8 in.)

$

$

Not available

82

Gravely 20000481

Hitch Pin

$

$

Not available

83

Gravely 20000482

Bolt (M8 x 55 mm, Hex Hd.)

Note: (M8 x 55 mm, Hex Hd.)

$

$

Not available

84

Gravely 20000483

Bolt (M8 x 45 mm, Hex Hd.)

Note: (M8 x 45 mm, Hex Hd.)

$

$

Not available

85

Gravely 20000484

Foot Assembly (Inc. Key Nos. 2-3 and 86-87

$

$

Not available

86

Gravely 20000485

Wear Pad

$3.49

$

Usually ships in 4-12 days

0

Gravely 20000415

Operator’s Manual (Not Shown)

Note: (Not Shown)

$

$

Not available

Gravely 20000417

Assembly Guide (Not Shown)

Note: (Not Shown)

$

$

Not available
