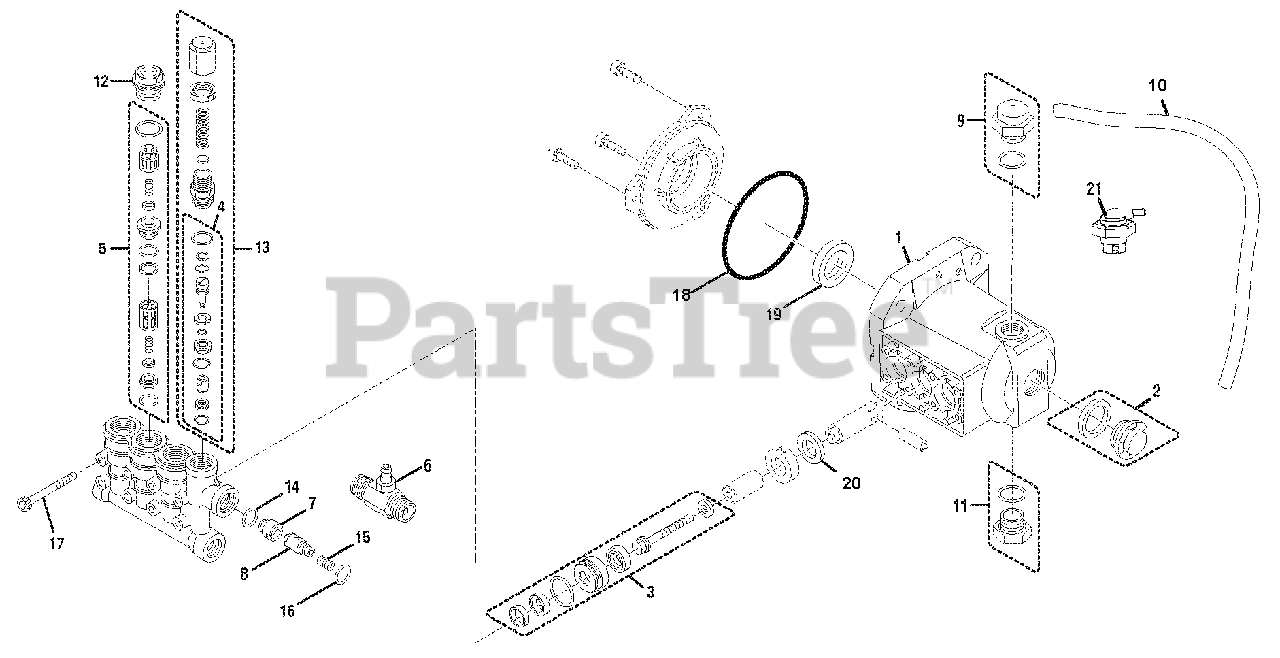

986002 - Gravely Pressure Washer (SN: 000129 & Above) Pump And Valves Parts Diagram

Pressure Washer

Pump And Valves Parts Diagram

  • Title

1

Gravely 20000540

Pump Assembly (Inc. Key Nos. 2-9 and 11-20)

Note: (Inc. Key Nos. 2-9 and 11-20)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 20000490

Bubble Oil Gauge w/Gasket

$39.99

$

Usually ships in 4-12 days

0

3

Gravely 20000491

Seal Kit

$341.99

$

Usually ships in 4-12 days

0

4

Gravely 20000492

O-Ring Kit

$34.99

$

In Stock, only 1 left!

0

5

Gravely 20000493

Valve Kit (Set of 3)

Note: (Set of 3)

$

$

Not available

6

Gravely 20000494

Chemical Injector

$206.99

$

Usually ships in 4-12 days

0

7

Gravely 20000495

Check Valve Seat

$

$

Not available

8

Gravely 20000496

Check Valve w/O-Ring

$

$

Not available

9

Gravely 20000497

Vent Cap (CAT)
(Superseded to 20000510)

Note: (CAT)

$

$

Not available

10

Gravely 20000498

Tube (Optional, 11 in.)

Note: (Optional, 11 in.)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 20000499

Drain Plug

$

$

Not available

12

Gravely 20000501

Plug

$

$

Not available

13

Gravely 20000502

Unloader Assembly (Inc. Key No. 4)

Note: (Inc. Key No. 4)

$

$

Not available

14

Gravely 20000503

O-Ring

$

$

Not available

15

Gravely 20000504

Spring

$8.99

$

In Stock, only 1 left!

0

16

Gravely 20000505

O-Ring

$

$

Not available

17

Gravely 20000506

Bolt (M6)

Note: (M6)

$

$

Not available

18

Gravely 20000507

O-Ring

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 20000508

Oil Seal

$

$

Not available

20

Gravely 20000509

Oil Seal

$

$

Not available

21

Gravely 20000510

Vent Cap (Optional)

Note: (Optional)

$

$

Not available
